12.2.3.2 Dimensions for Flange Mounting, FR7-FR8
Ø
W3
W1
W2
H1
H3
D1
D2
H4
H4
H5
H7
W4
H6
H2
W3
W1
IP21 IP54
e30bg005.10

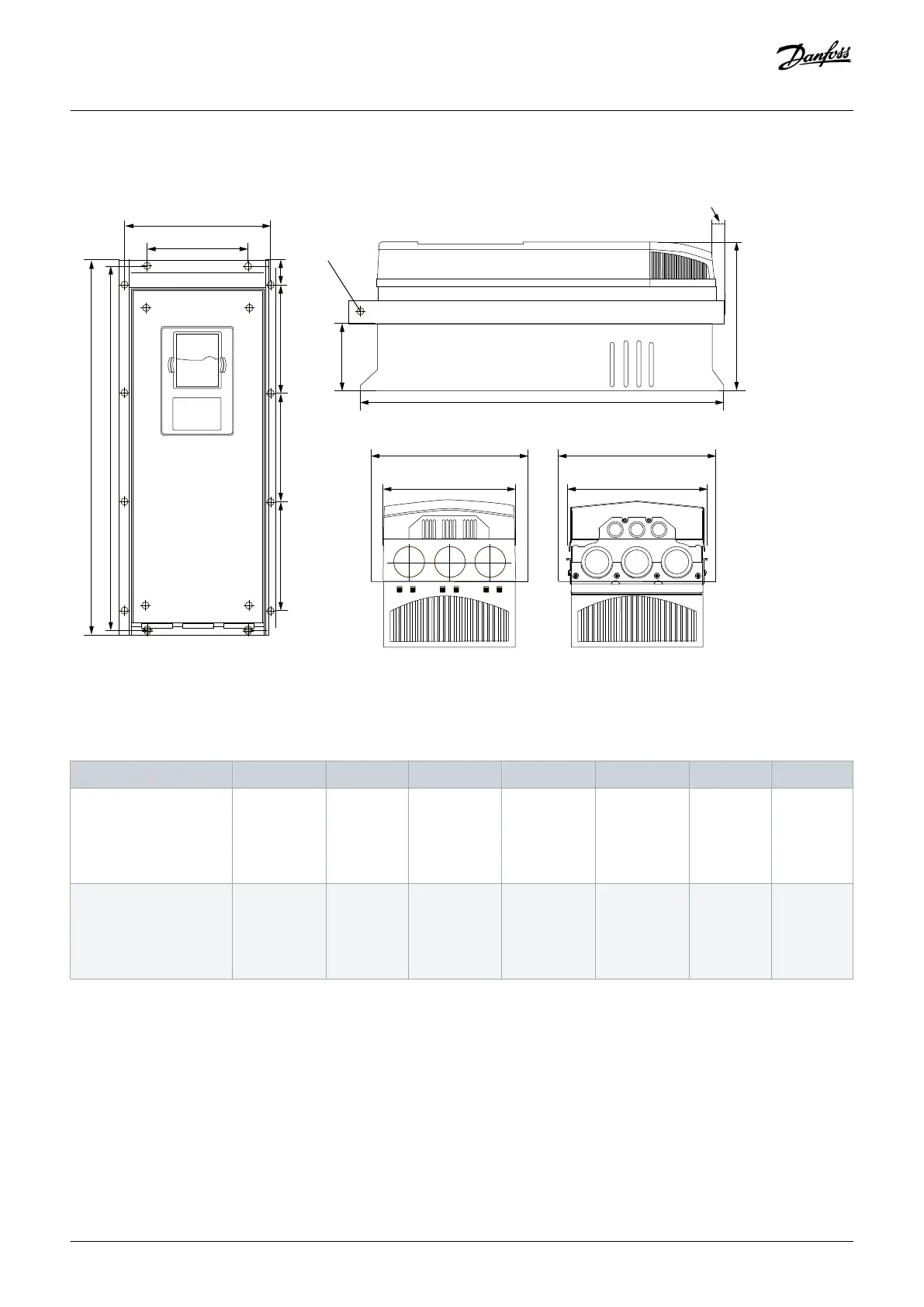

Illustration 50: Dimensions of the VACON
®
NXS/NXP AC Drive with Flange, FR7 and FR8
Table 27: Dimensions in mm (in inch) of the VACON
®
NXS/NXP AC Drive with Flange, FR7 and FR8, part 1
Drive type W1 W2 W3 W4 D1 D2 Ø
0075 2-0114 2
0072 5-0105 5
0041 6-0052 6
237
(9.33)
175
(6.89)
270
(10.63)
253
(9.96)
257
(10.12)
117
(4.61)
6.5
(0.26)
0140 2-0205 2
0140 5-0205 5
0062 6-0100 6
289
(11.38)
-
(-)
355
(13.98)
330
(12.99)
344
(13.54)
110
(4.33)
9
(0.35)
