Ø
H5
H4
H4
H3
H1
H2
W1
W2
e30bg007.10

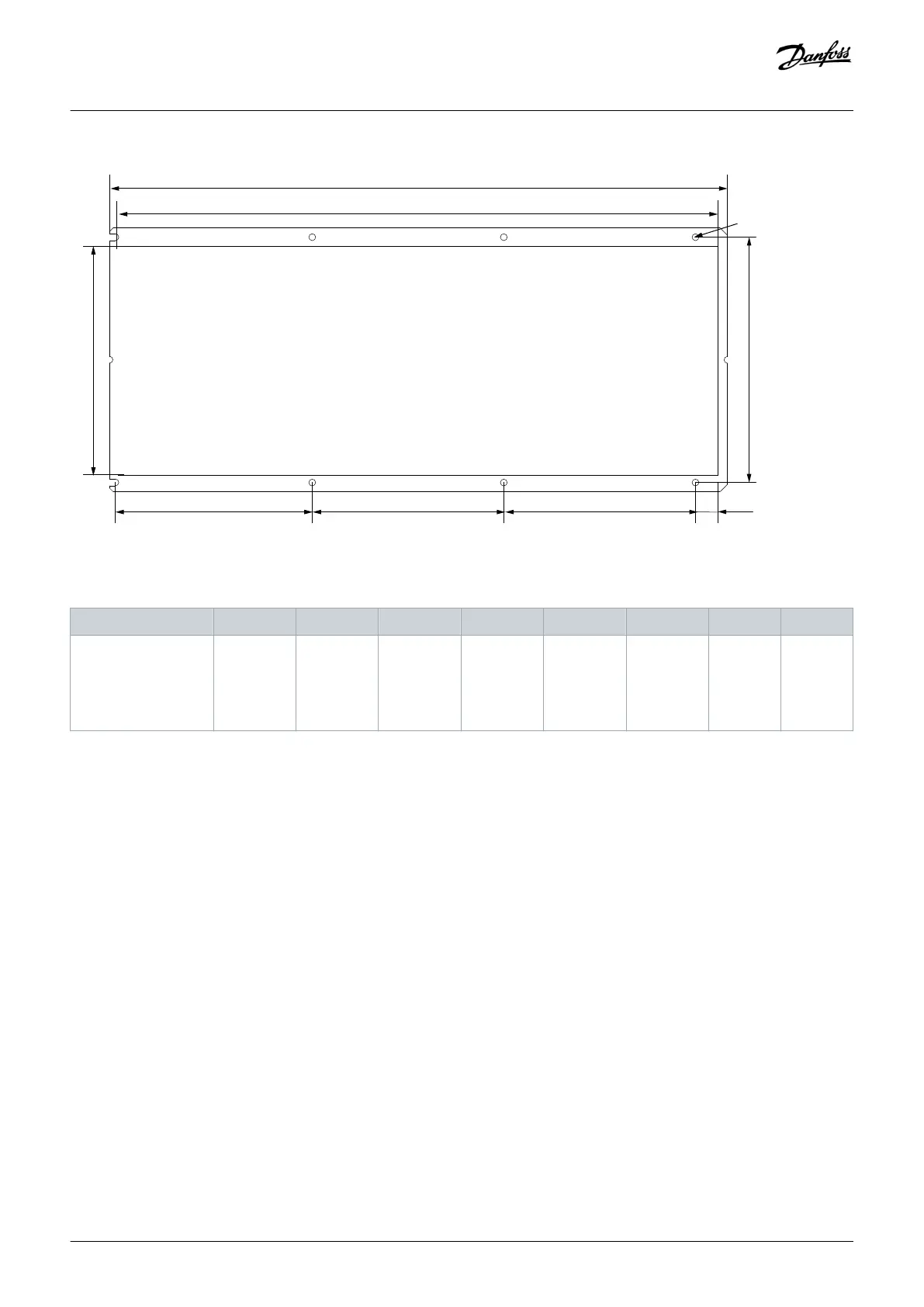

Illustration 52: Dimensions of the Opening and Drive Outline with Flange, FR8
Table 30: Dimensions in mm (in inch) of the Opening and Drive Outline with Flange, FR8
Drive type W1 W2 H1 H2 H3 H4 H5 Ø
0140 2-0205 2
0140 5-0205 5
0062 6-0100 6
301
(11.85)
330
(12.99)
810
(31.89)
832
(32.76)
265
(10.43)
258
(10.16)
33
(1.30)
9
(0.35)
Specifications
Operating guide | VACON® NXS/NXP Air-cooled
DPD00910G
134 | Danfoss A/S © 2018.06
