e30bg010.10

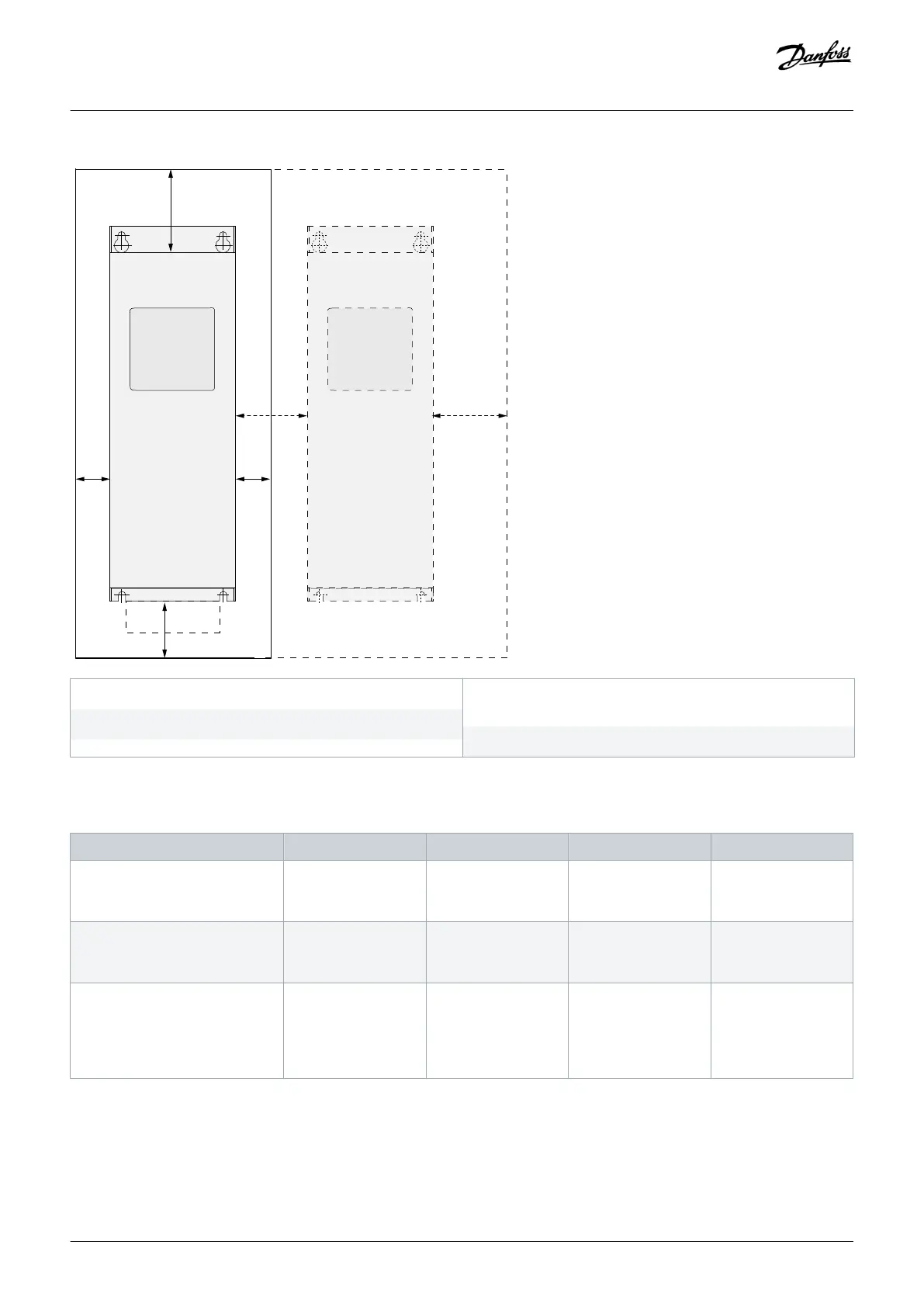

A The clearance around the drive (see also B and C)
C The free space above the drive
B The distance from a drive to a second drive, or the distance to
the cabinet wall
D The free space below the drive
Illustration 10: Installation Space
Table 6: Minimum Clearances around the AC Drive in mm (in inch)
Drive type A B C D
0003 2-0012 2
0003 5-0012 5
20
(0.79)
20
(0.79)
100
(3.94)
50
(1.97)
0017 2-0031 2
0016 5-0031 5
20
(0.79)
20
(0.79)
120
(4.72)
60
(2.36)
0048 2-0061 2
0038 5-0061 5
0004 6-0034 6
30
(1.18)
20
(0.79)
160
(6.30)
80
(3.15)
Mounting the Unit
Operating guide | VACON® NXS/NXP Air-cooled
DPD00910G
34 | Danfoss A/S © 2018.06
