Danfoss VLT AQUA Drive FC 202

1
2
3
4
605
(23.8)
85 (3.3) 154 (6.1) 224 (8.8)
0
0
130BF371.10
1 Mains terminals 3 Ground terminals
2 Brake terminals 4 Motor terminals

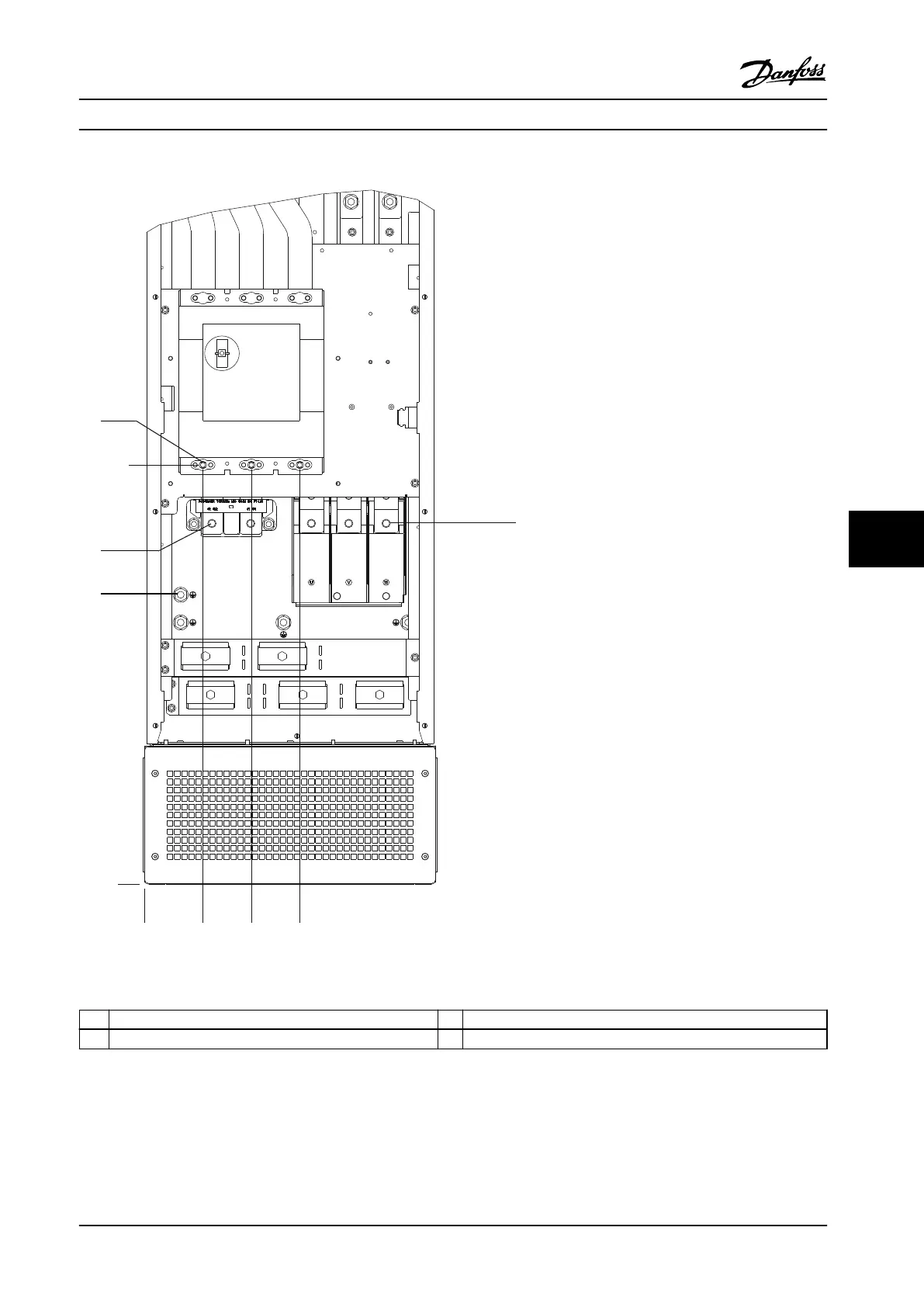

Figure 8.68 D8h Terminal Dimensions with Circuit Breaker Option (Front View)
Exterior and Terminal Dimen... Design Guide
MG22B222 Danfoss A/S © 01/2018 All rights reserved. 121
