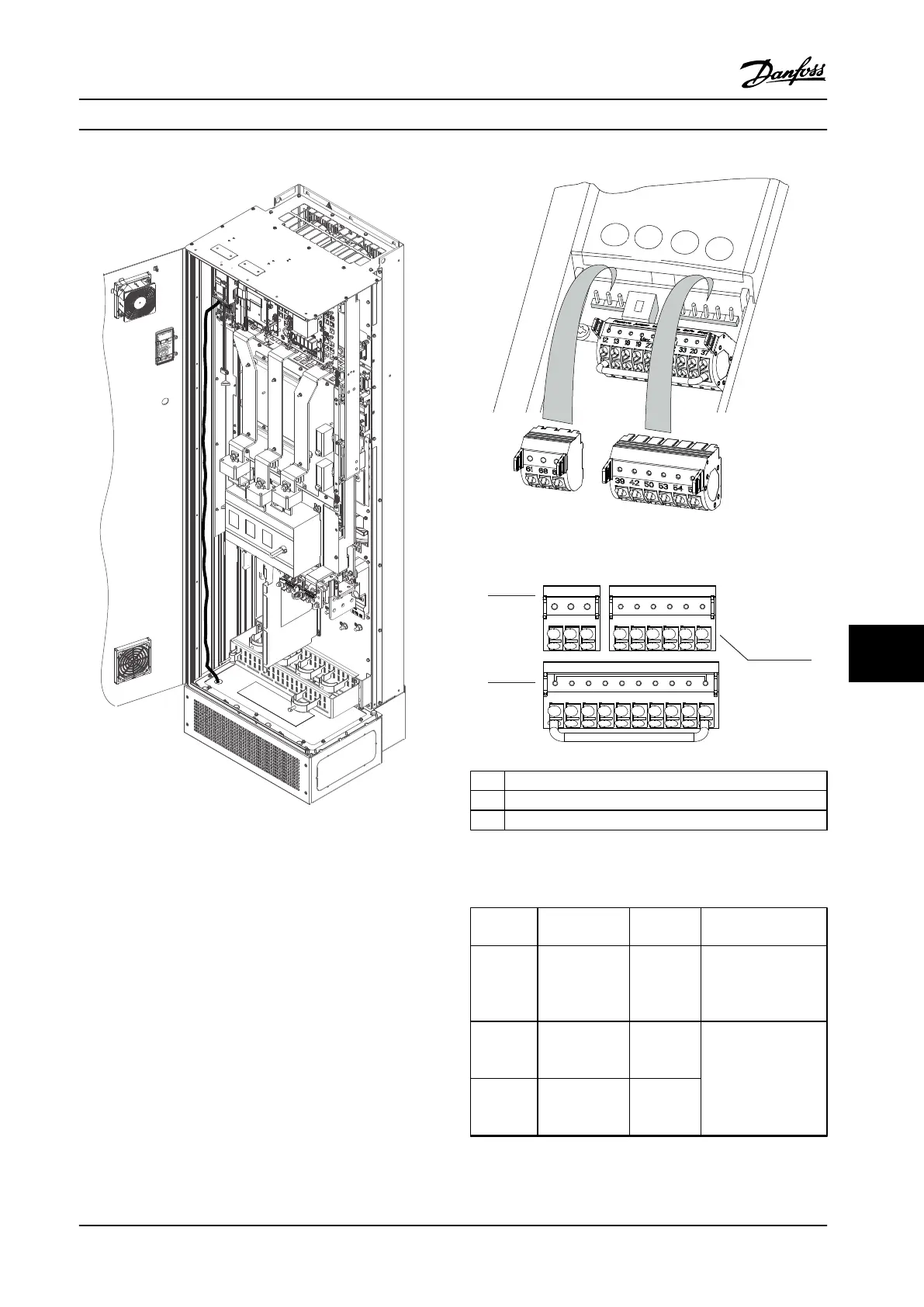

Figure 10.5 Control card wiring path for the E1h. Same routing
path for enclosures E2h and D1h–D8h.
10.4.2 Control Terminals
Figure 10.6 shows the removable drive connectors. Terminal
functions and default settings are summarized in Table 10.5
– Table 10.7.
Figure 10.6 Control Terminal Locations
12 13 18 19 27 29 32 33 20 37
39696861 42 50 53 54 55
130BF145.10
1
2
3
1 Serial communication terminals
2 Digital input/output terminals
3 Analog input/output terminals
Figure 10.7 Terminal Numbers Located on the Connectors
Terminal Parameter Default
setting
Description
61 – – Integrated RC-lter to
connect cable shield
if there are EMC
problems.
68 (+) Parameter
group 8-3* FC
Port Settings
– RS485 interface. A
switch (BUS TER.) is
provided on the
control card for bus
termination
resistance.
69 (-) Parameter
group 8-3* FC
Port Settings
–
Table 10.5 Serial Communication Terminal Descriptions
Electrical Installation Con... Design Guide
MG22B222 Danfoss A/S © 01/2018 All rights reserved. 161
10 10
