7.2.6 Terminal Locations, F8-F13 - 12-Pulse
The 12-pulse F enclosures have six different sizes, F8, F9, F10, F11, F12 and F13 The F8, F10 and F12 consist of an inverter
cabinet on the right and rectifier cabinet on the left. The F9, F11 and F13 have an additional options cabinet left of the
rectifier cabinet. The F9 is an F8 with an additional options cabinet. The F11 is an F10 with an additional options cabinet.
The F13 is an F12 with an additional options cabinet.
Terminal locations - Inverter and Rectifier Frame size F8 and F9
1
239.6 [ 9.43 ]
0.0 [ 0.00 ]
0.0 [ 0.00 ]
160.0 [ 6.30 ]
56.6 [ 2.23 ]
39.8 [ 1.57 ] 91.8 [ 3.61 ]
174.1 [ 6.85 ] 226.1 [ 8.90 ]
130BB534.10
R2/L12
R1/L11
91-1
91
S2/L22
S1/L21
92-1
T2/L32 93-1
92
T1/L31 93
U/T1 96 V/T2 97 W/T3 98
0.0 [ 0.00 ]
57.6 [ 2.27 ] 74.0 [ 2.91 ] 100.4 [ 3.95 ] 139.4 [ 5.49 ] 172.6 [ 6.80 ] 189.0 [ 7.44 ] 199.4 [ 7.85 ]
287.6 [ 11.32 ] 304.0 [ 11.97 ] 407.3 [ 16.04 ] 464.4 [ 18.28 ] 522.3 [ 20.56 ] 524.4 [ 20.65 ] 629.7 [ 24.79 ] 637.3 [ 25.09 ]

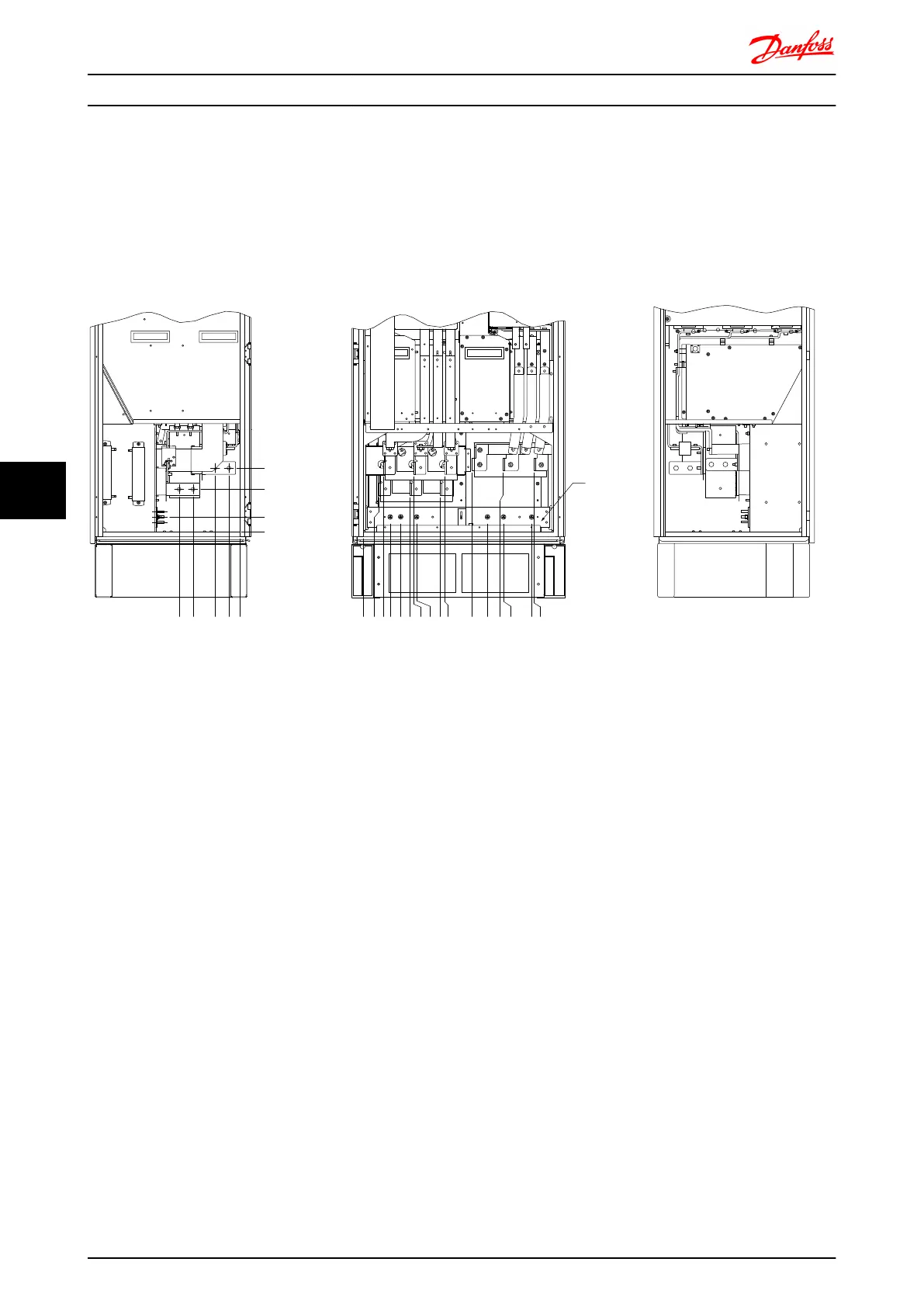

Illustration 7.33 Terminal locations - Inverter and Rectifier Cabinet - F8 and F9 (front, left and right side view). The gland plate is 42mm
below .0 level.
1) Earth ground bar
Mechanical Installation - ... FC 300 Design Guide
146 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
77
