Danfoss VLT AutomationDrive Design Guide

Ordering no. 130B1113 Ordering no. 130B1114
130BA138.10

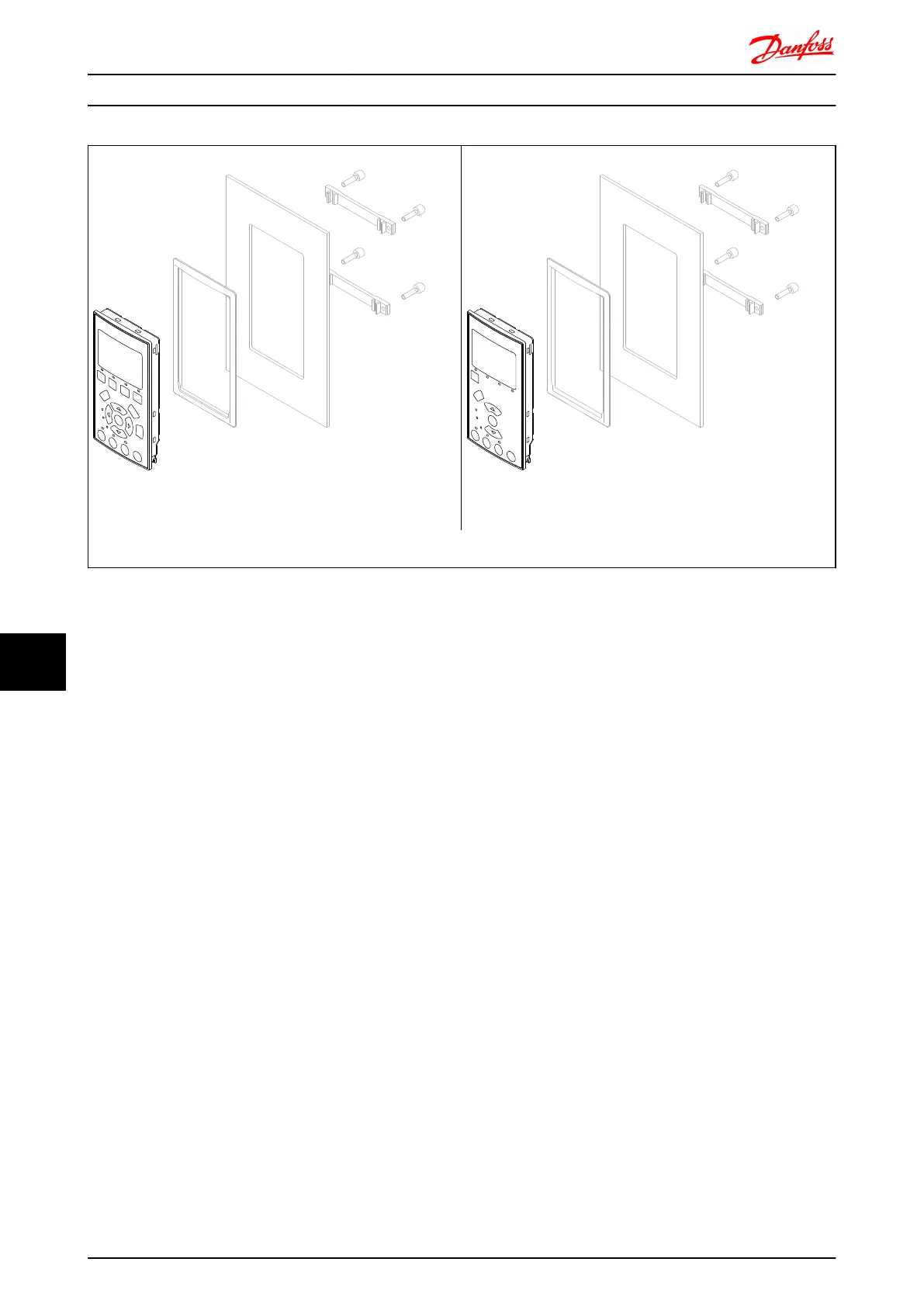

Illustration 10.10 LCP Kit with Graphical LCP, Fasteners, 3m Cable
and Gasket.
130BA200.10
Illustration 10.11 LCP Kit with Numerical LCP, Fastenes and Gasket.
LCP Kit without LCP is also available. Ordering number: 130B1117
For IP55 units the ordering number is 130B1129.
10.11 IP21/IP 4X/ TYPE 1 Enclosure Kit
IP20/IP 4X top/ TYPE 1 is an optional enclosure element available for IP 20 Compact units.
If the enclosure kit is used, an IP 20 unit is upgraded to comply with enclosure IP 21/ 4X top/TYPE 1.
The IP 4X top can be applied to all standard IP 20 FC 30X variants.
Options and Accessories FC 300 Design Guide
248 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
10
10

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
