3 Introduction to FC 300

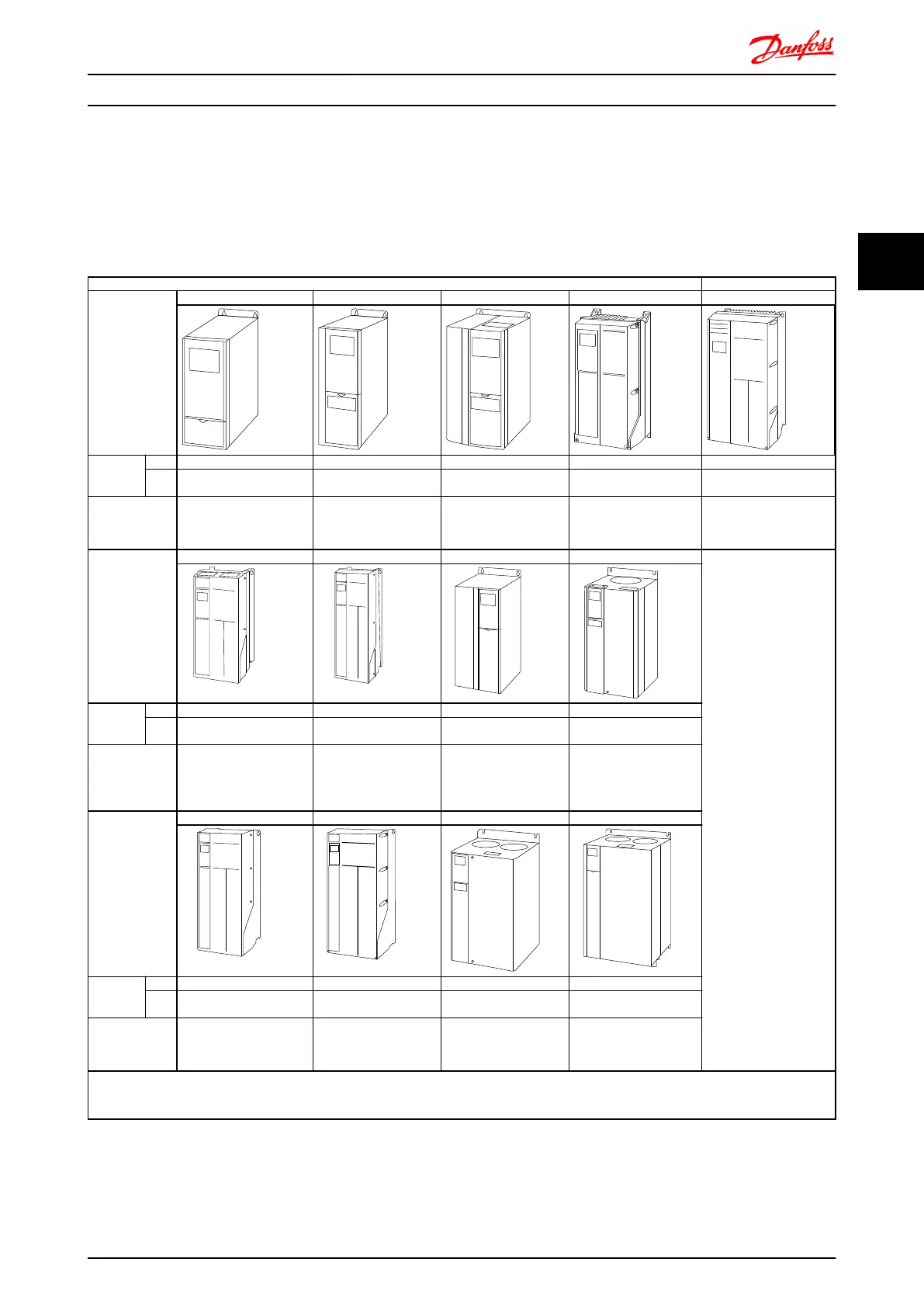

3.1 Product Overview
Frame size depends on enclosure type, power range and mains voltage
Frame size A1* A2* A3* A4 A5
130BA870.10
130BA809.10
130BA810.10
130BB458.10
130BA811.10
Enclosure
protection
IP 20/21 20/21 20/21 55/66 55/66
NEM
A
Chassis/Type 1 Chassis/ Type 1 Chassis/ Type 1 Type 12 Type 12
High overload
rated power -
160% overload
torque
0.25 – 1.5kW (200-240V)
0.37 – 1.5kW (380-480V)
0.25-3kW (200–240V)
0.37-4.0kW (380-480/
500V)
3.7kW (200-240V)
5.5-7.5kW (380-480/500V)
0.75-7.5kW (525-600V )
0.25-3kW (200–240V)
0.37-4.0kW (380-480/500V)
0.25-3.7kW (200-240V)
0.37-7.5kW (380-480/500V)
0.75 -7.5kW (525-600V)
Frame size B1 B2 B3 B4
130BA812.10
130BA813.10
130BA826.10
130BA827.10
Enclosure
protection
IP 21/55/66 21/55/66 20 20
NEM
A
Type 1/Type 12 Type 1/Type 12 Chassis Chassis
High overload
rated power -
160% overload
torque
5.5-7.5kW (200-240V)
11-15kW (380-480/500V)
11-15kW (525-600V)
11kW (200-250V)
18.5-22kW
(380-480/500V)
18.5-22kW (525-600V)
11-22kW (525-690V)
5.5-7.5kW (200-240V)
11-15kW (380-480/500V)
11-15kW (525-600V)
11-15kW (200-240V)
18.5-30kW (380-480/500V)
18.5-30kW (525-600V)
Frame size C1 C2 C3 C4
130BA814.10
130BA815.10
130BA828.10
130BA829.10
Enclosure
protection
IP 21/55/66 21/55/66 20 20
NEM
A
Type 1/Type 12 Type 1/Type 12 Chassis Chassis
High overload
rated power -
160% overload
torque
15-22kW (200-240V)
30-45kW (380-480/500V)
30-45kW (525-600V)
30-37kW (200-240V)
55-75kW (380-480/500V)
55-90kW (525-600V)
30-75kW (525-690V)
18.5-22kW (200-240V)
37-45kW (380-480/500V)
37-45kW (525-600V)
30-37kW (200-240V)
55-75kW (380-480/500V)
55-90kW (525-600V)
* A1, A2 and A3 are bookstyle enclosures. All other sizes are compact enclosures.
Introduction to FC 300 FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 15
3
3

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
