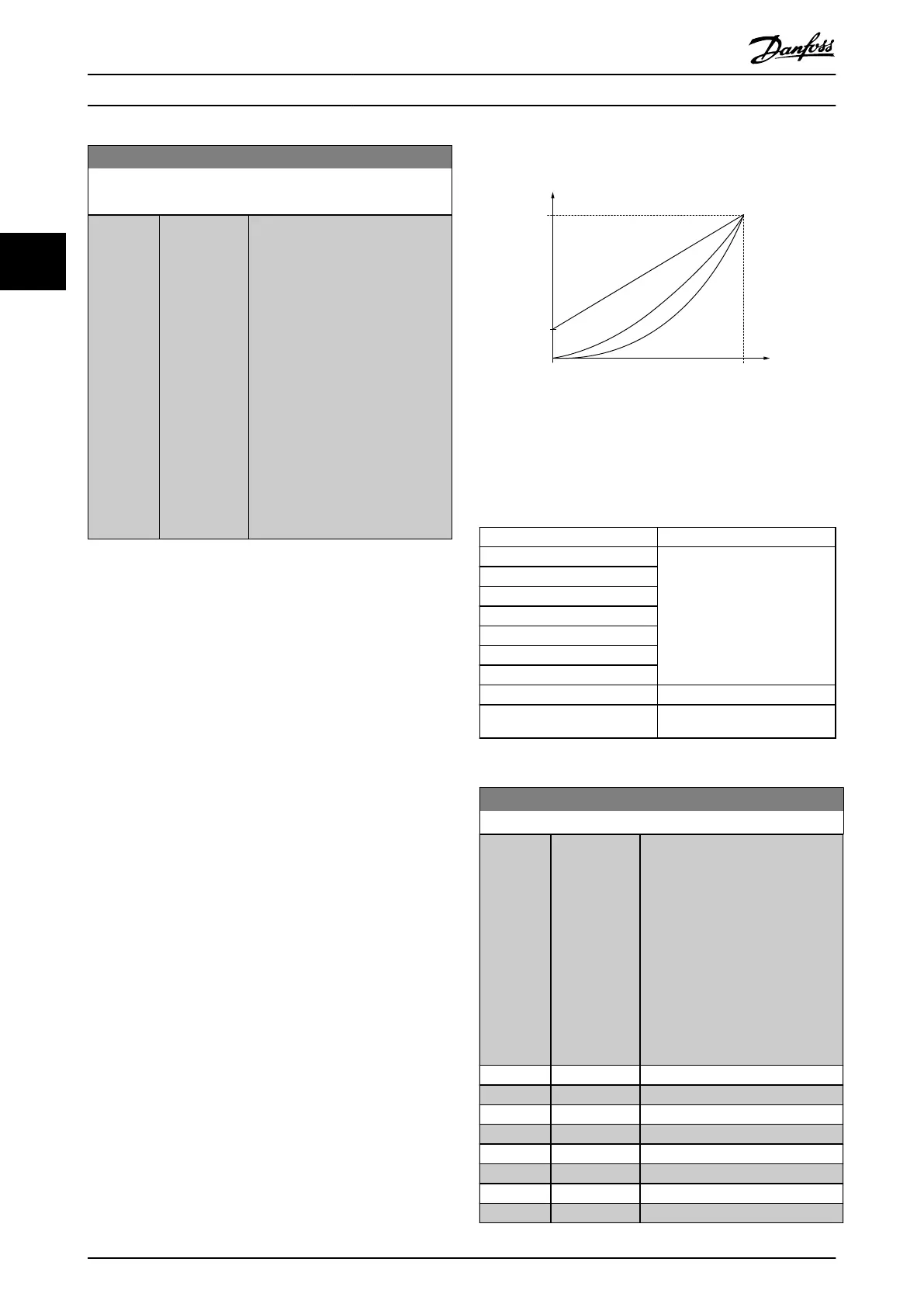

Danfoss vlt FC 102 Programming Guide

0-25 My Personal Menu
Array [20]
Range: Function:
Size
related*
[0 - 9999 ] Dene up to 20 parameters to
appear in the Q1 Personal Menu,
accessible via the [Quick Menu] key
on the LCP. The parameters are
displayed in the Q1 Personal Menu
in the order they are programmed
into this array parameter. Delete
parameters by setting the value to
0000.
For example, this can be used to
provide quick, simple access to just
1 or up to 20 parameters which
require changing on a regular basis
(for example, for plant maintenance
reasons) or by an OEM to enable
simple commissioning of their
equipment.
3.2.7 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes:
•
Custom readout. Value proportional to speed
(linear, squared, or cubed depending on unit
selected in parameter 0-30 Custom Readout Unit).
•
Display text. Text string stored in a parameter.
Custom readout
The calculated value to be shown is based on the settings
in:
•
Parameter 0-30 Custom Readout Unit.
•
Parameter 0-31 Custom Readout Min Value (linear
only).
•
Parameter 0-32 Custom Readout Max Value.
•
Parameter 4-13 Motor Speed High Limit [RPM].
•
Parameter 4-14 Motor Speed High Limit [Hz].
•
Actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
P 0-31
Linear
units only
Quadratic Unit (Pressure)
Cubic Unit (Power)
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
0
130BT105.12
Linear Unit (e.g. speed and ow)
Illustration 3.3 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit type Speed relation
Dimensionless
Linear
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure Quadratic
Power Cubic
Table 3.2 Speed Relations for Dierent Unit Types
0-30 Custom Readout Unit
Option: Function:
Program a value to be shown in the
LCP display. The value has a linear,
squared, or cubed relation to speed.
This relation depends on the unit
selected (see Table 3.2). The actual
calculated value can be read in
parameter 16-09 Custom Readout,
and/or shown in the display by
selecting [1609] Custom Readout in
parameter 0-20 Display Line 1.1
Small to parameter 0-24 Display Line
3 Large.
[0] None
[1] * %
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
Parameter Descriptions
VLT
®
HVAC Drive FC 102
42 Danfoss A/S © 10/2019 All rights reserved. M0010001
