Page 28

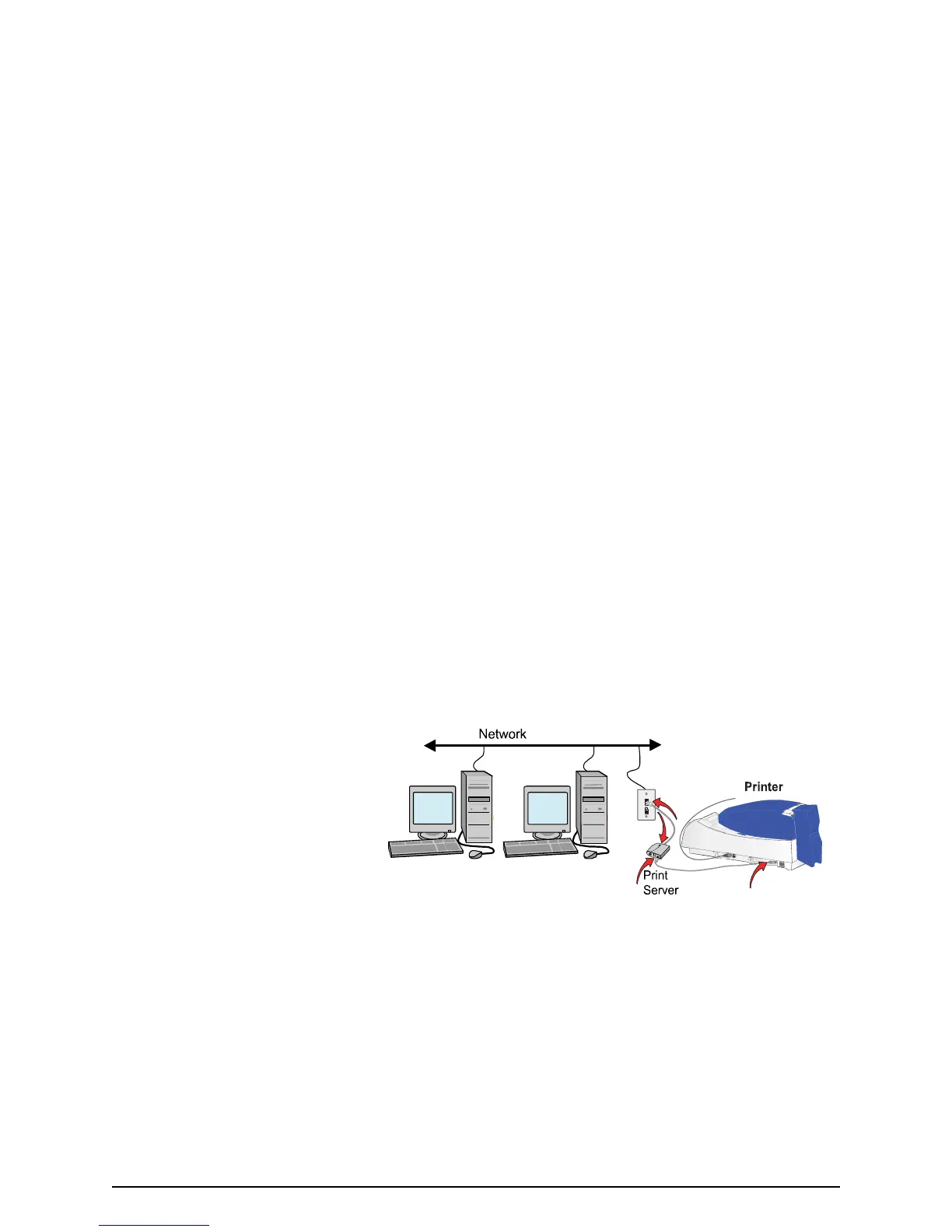

Use the USB port and a wired print server
1 Connect the print server to the
printer using a USB cable.
2 Connect the print server to the
network using an Ethernet cable.
See the setup information provided
with the print server.
3 Follow the instructions provided
with the print server to set it up on
the network, and then see
“Set the
Data Format” on page 34.
Tips for Success
• Be sure to record the print server name or IP address, which you need to
send print jobs from a computer. Work with your network support
personnel if needed to obtain the print server name and IP address.
• You do not need to perform the steps in “Set up the network printer” on
page 30. Instead, set up the print server on the network (step 3 above).
