DS8100
32
2
2.6.4 Multiplexer
Each scanner is connected to an MX4000 using RS485 half-duplex on either the main
or the auxiliary interface. The other interface can be used for configuration.
Host
MX4000
01 31
P.S.
P.S.
P.S.

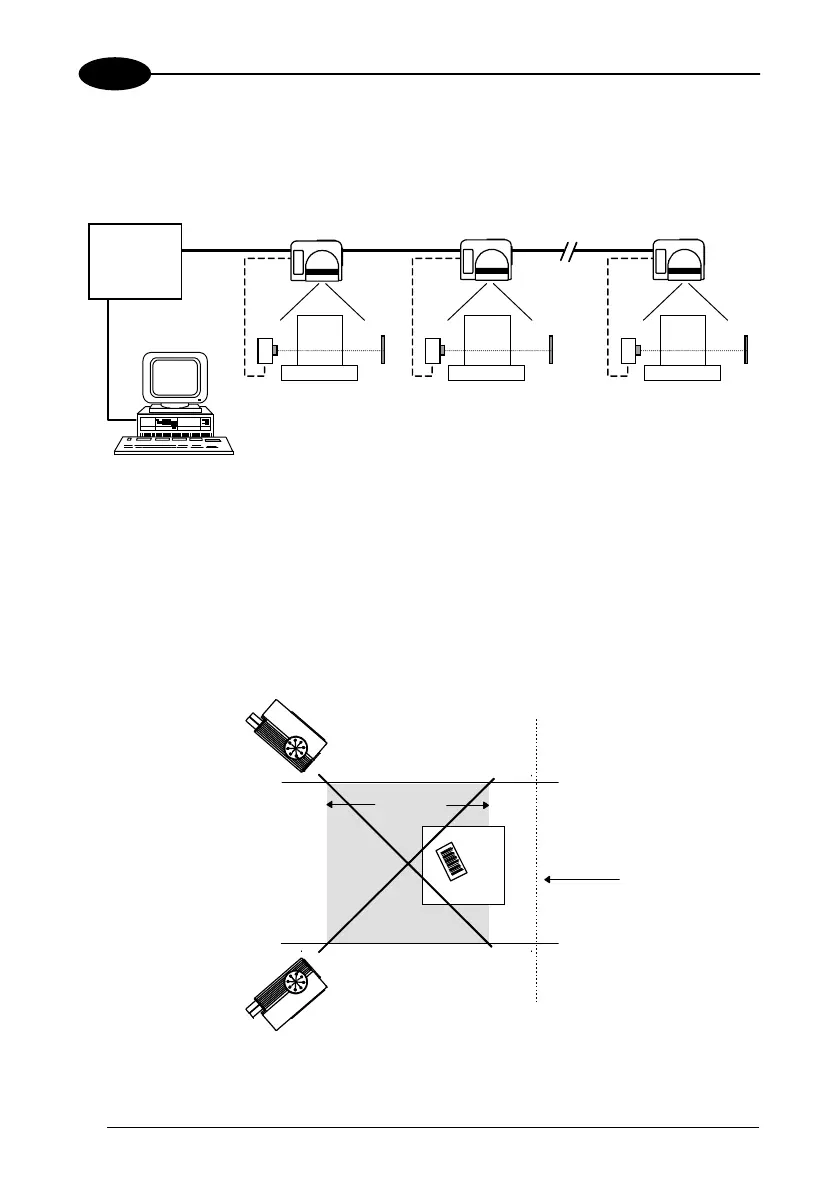

Figure 36 - Multiplexer layout
2.6.5 Omnidirectional Reading
Two or more scanners are correctly positioned in a Master/Slave Single P.S. type
layout to compose an omnidirectional reading station.
The XMF series metal frames provide easy mounting for this type of layout.
P.S.
PHOTOCELL
code motion
READING
AREA
Figure 37 - Omnidirectional reading
