Datalogic DS8100 Installation Manual

DS8100
6
1

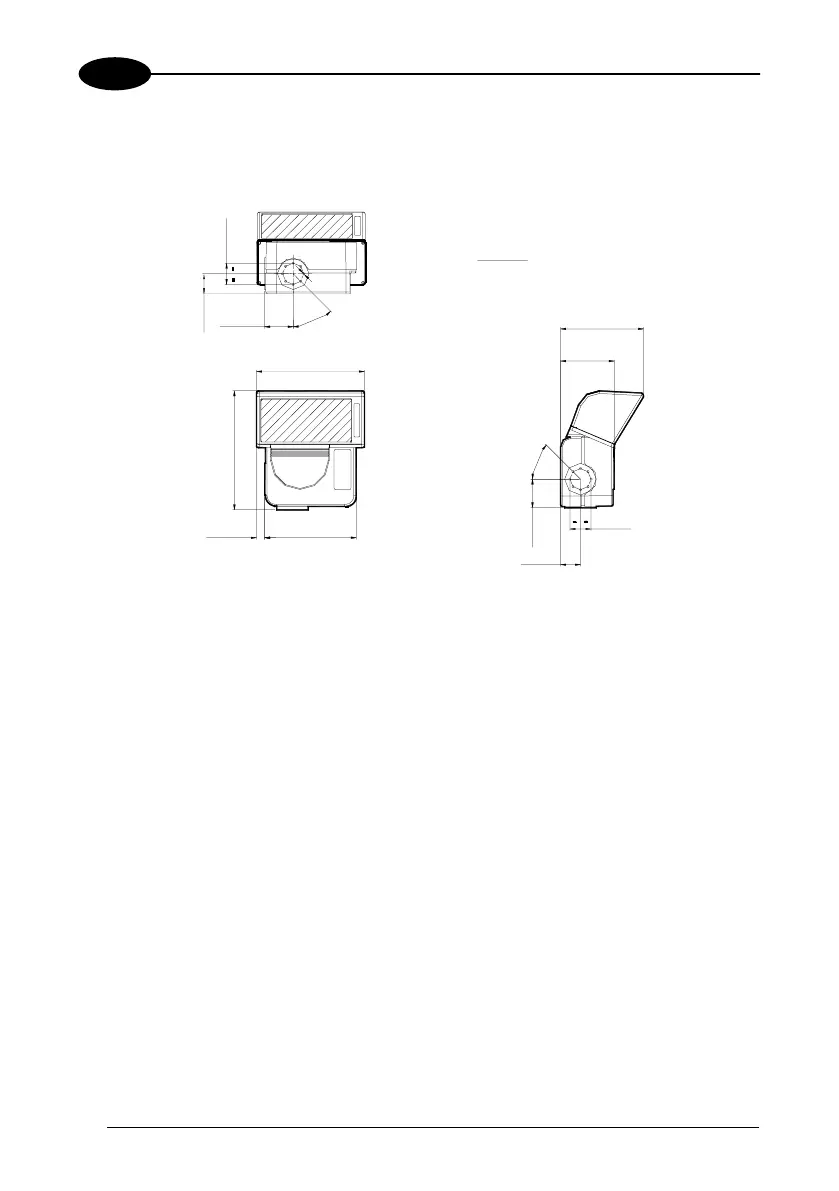

The mechanical dimensions of the oscillating mirror models are shown below and
can be used for physical installation of the scanner.
Ø5
50
[1.97]
46.8
[1.84]
67.5
[2.66]
45°
254
[10.00]
280.1
[11.03]
19.3
[0.76]
215.5
[8.48]
195
[7.68]
126.5
[4.98]
67.5
[2.66]
45°
50
[1.97]
46.8
[1.84]
mm
inch
Figure 4 - DS8100 oscillating mirror model overall dimensions
1.4 ACCESSORIES
The following DS8100 accessories are available on request:
• 90° deflection mirror
• XMF-10 Single cross metal frame
• XMF-20 Double cross metal frame
• FBK-8100 Fast bracket kit
• US-8100 Bracket kit
• CAB-8101 1.2 m. 8000 Slave Connection Cable
• CAB-8102 2.5 m. 8000 Slave Connection Cable
• CAB-8105 5 m. 8000 Slave Connection Cable
• CAB-8201 1.2 m. 8000 M/S Connection Cable
• CAB-8202 2.5 m. 8000 M/S Connection Cable
• CAB-8205 5 m. 8000 M/S Connection Cable

Datalogic DS8100 Specifications

General

Brand	Datalogic
Model	DS8100
Category	Barcode Reader
Language	English
