DS8100
36
3
RS232 Debug Connector
The use of this connector is reserved for Service:
5
1
69

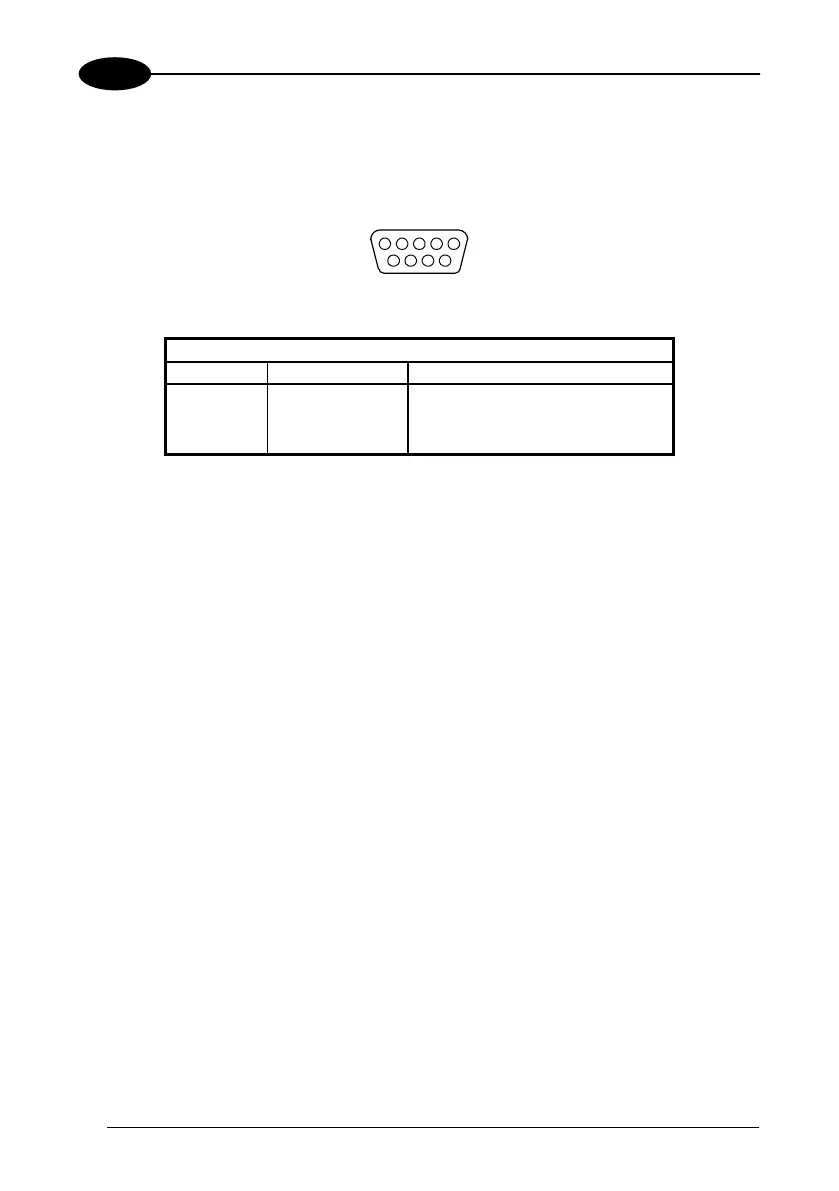

Figure 41- RS232 debug connector
RS232 Debug Connector pinout
Pin Name Function
2 TXD transmit data
3 RXD receive data
5 GND ground
3.3.1 Power Supply
The supply voltage for correct operation of the scanner must be between 20 and 30
VDC.
The max. power consumption is 30 W.
The power block (optional), supplies the power necessary for the DS8100 and allows
mains power to be used.
A security system allows the laser to activate only once the motor has reached the
correct rotational speed; consequently, the laser beam is generated after a slight
delay from the power on of the scanner.
The switch (Figure B, 15) on the connector panel turns off power to both the motor
and the laser beams.
During power up of the scanner there is a current peak of about 3A caused by the
motor startup.
