Datalogic DS8100A User Manual

CBX ELECTRICAL CONNECTIONS
29
3

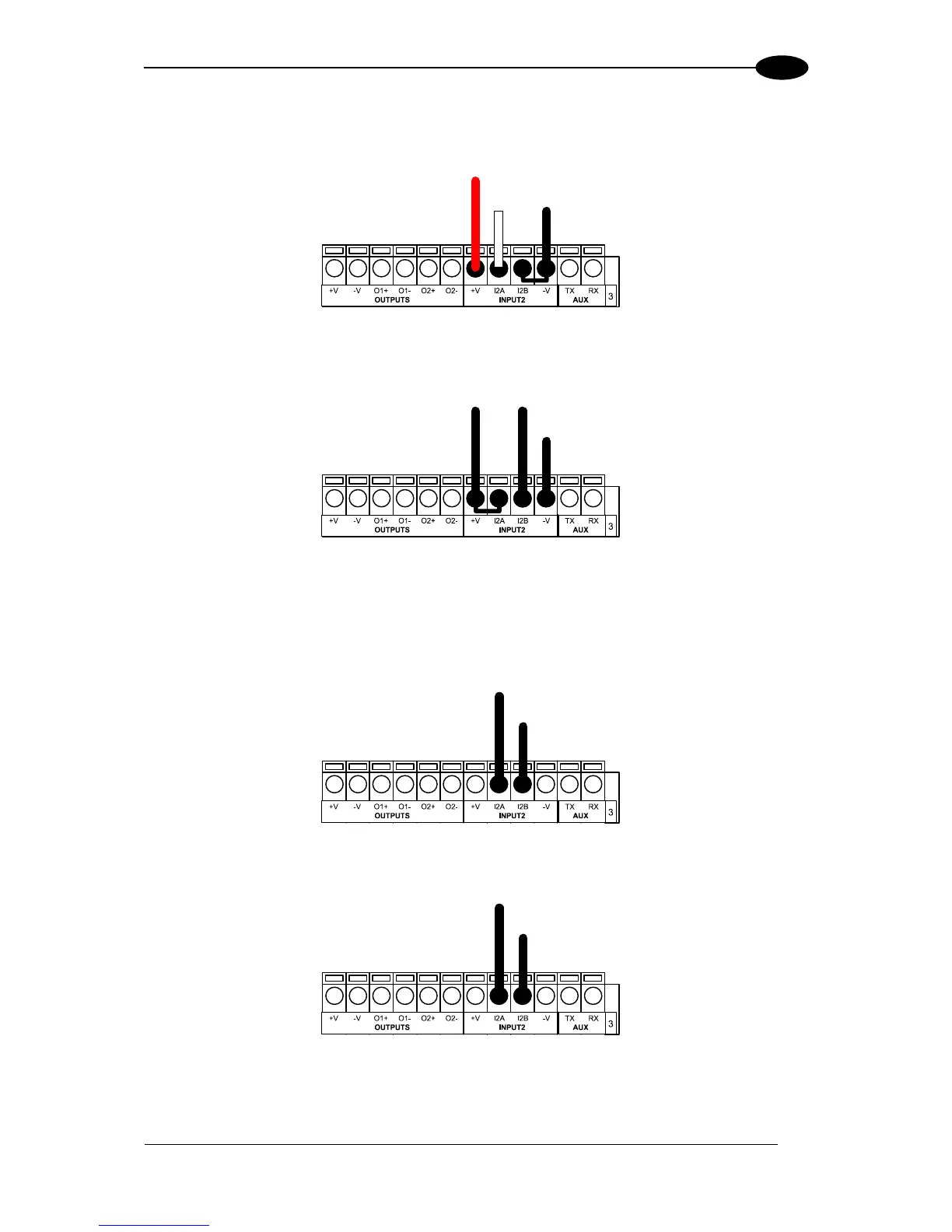

INPUT 2 (ENCODER) CONNECTIONS USING DS8100A POWER
(red)
(white)
OEK-1 Encoder (PNP)
(black)
Figure 28 - OEK-1 Encoder PNP Using DS8100A Power
Power to Input
Input Device Signal
Input Device
Reference
Input Device (Encoder)
Figure 29 - Encoder NPN Using DS8100A Power
INPUT 2 (ENCODER) CONNECTIONS USING EXTERNAL POWER
External Device
Ground Reference
Input
Signal
Figure 30 - PNP Encoder Using External Power (i.e. PLC signal)
External Device
Power Reference
Input
Signal
Figure 31 - NPN Encoder Using External Power (i.e. PLC signal)
