Product Reference Guide 1-5
Connectors
The appearance of the connector panel will vary depending upon the fac-
tory options purchased with your model. Reference Figure 1-2.

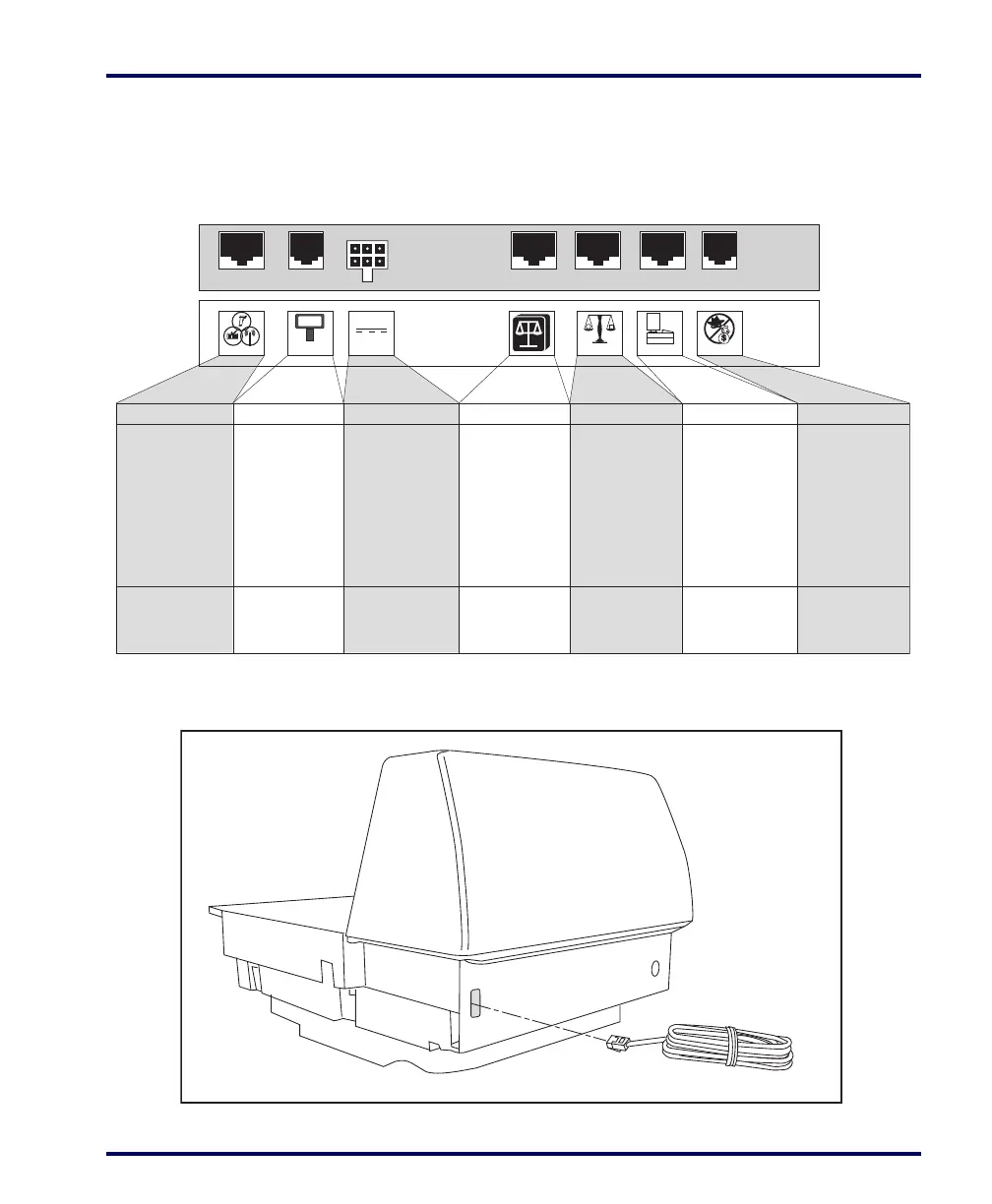

Figure 1-2. Connector Panel
Figure 1-3. Connecting the Optional EAS Interlock Cable
POS TERMINALREMOTE DISPLAYAUXILIARY PORT SCALE HOST EAS INTERLOCKPOWER
Connection to
this port is
Optional
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Scale Data (dual
cable scanner/scale)
SCALE
Factory ConnectedDrives Remote Display · Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld
Scanner Input
· Auxiliary RS-232
Label Data Output
Models with scale
only
Connection to
this port is
Optional
· Provides Good Read
output to enable EAS
antenna RF output
· Provides signal to
drive external speaker
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
Remote Display
0.00
Power EAS InterlockScale Host POS TerminalAux. Port
EAS
Interlock
Connection
