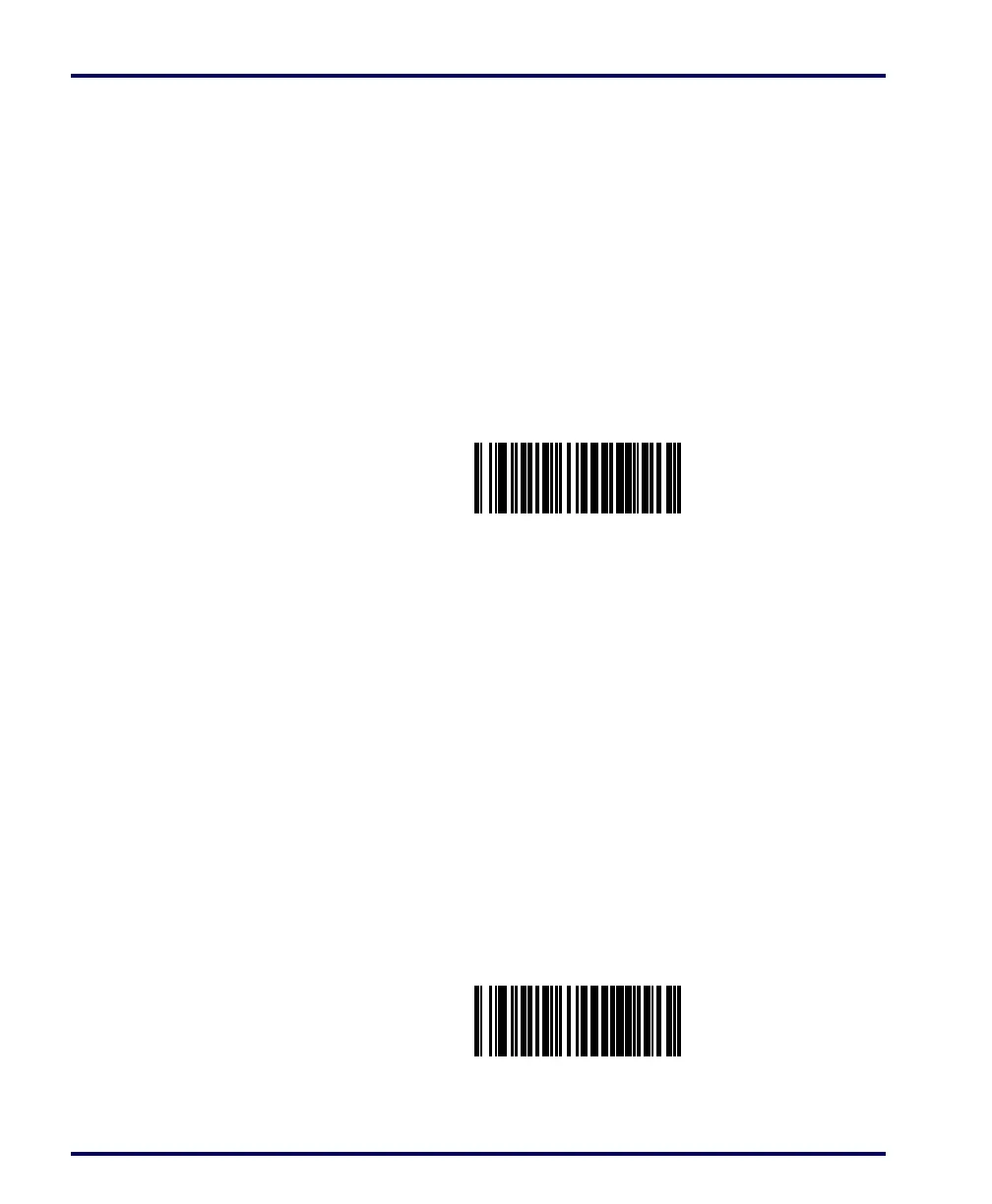

6-84 Magellan
®
8100/8100Ω and 8200/8200Ω Scanner
RS-232 TTL Invert
Enables/disables inversion of TTL.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code below which represents the desired setting for
this feature. You’ll need to cover any unused bar codes on this and
the facing page to ensure that the scanner reads only the bar code
you intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.
RS-232 TTL INVERT = DISABLE
RS-232 TTL INVERT = ENABLE
