Product Reference Guide 6-143
EAN-8 2-Digit Supplemental Label ID
This feature specifies an EAN-8 2-Digit Supplemental label ID to be
added to bar code data.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code, SET EAN-8 2-DIGIT SUPPLEMENTAL
LABEL ID below. You’ll need to cover any unused bar codes on
this and the facing page to ensure the scanner reads only the bar
code you intend to scan.
3. Scan the appropriate digits from the keypad in Appendix C that
represent the desired Label ID characters; entered as two hex
pairs. A table containing the ASCII Character Set and their corre-
sponding Hex Values is available in the inside back cover of this
manual. ASCII parameters must be input by scanning a pair of
hexadecimal digits for each character. Thus, to set a two-character
value of AB, bar codes containing the digits ‘4’, ‘1’, ‘4’, and ‘2’
must be scanned. The selectable range for this option is any hex
value from 00 to FF.
4. Complete the programming sequence by scanning the SWITCH
bar code.

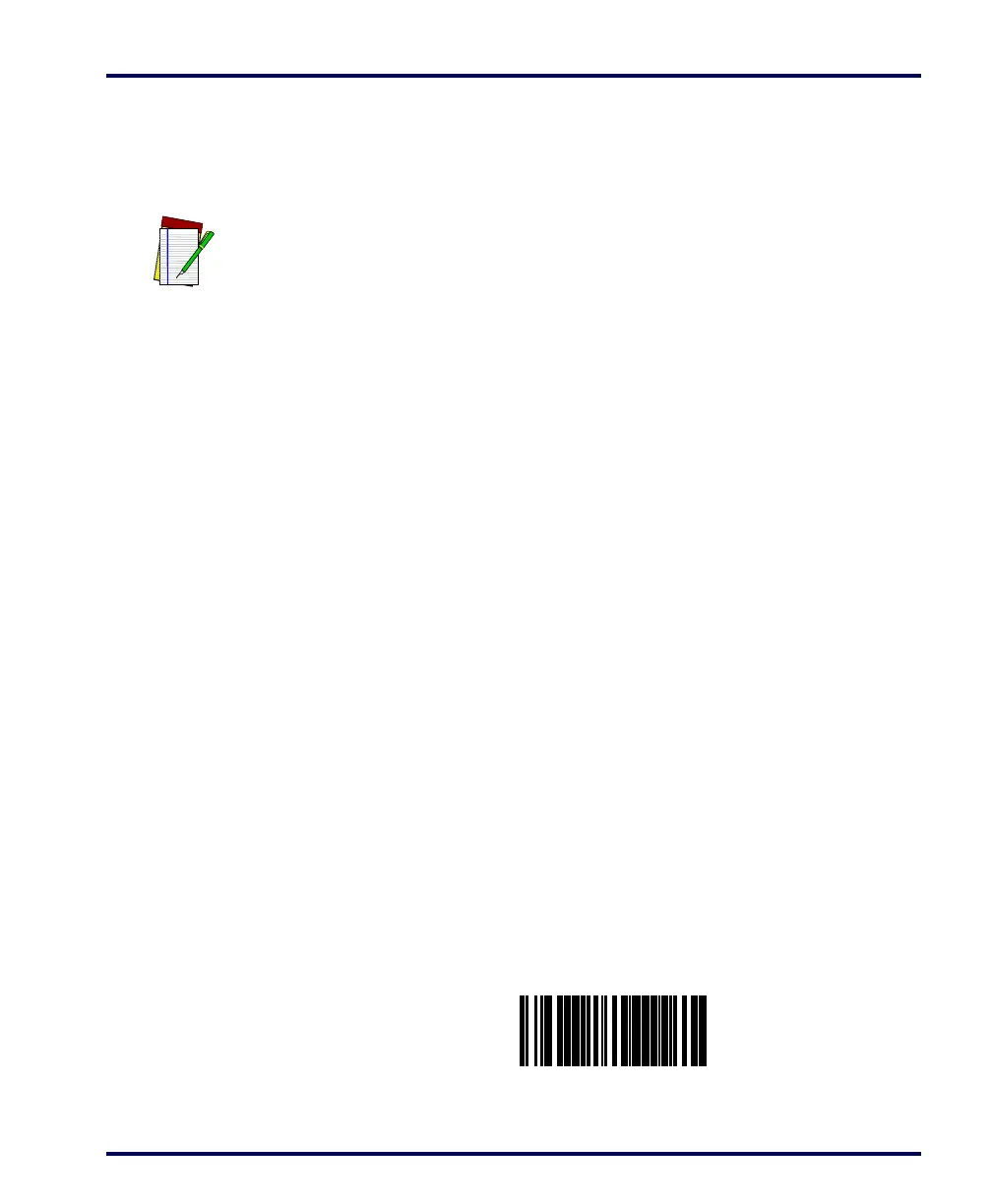

SET EAN-8 2-DIGIT SUPPLEMENTAL LABEL ID
NOTE
The programming feature, RS-232 Label ID Control, designates whether
the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
To Next Page
