Checkstand Preparation
Reference Figure 2-5. When performing a first time installation into a
new checkstand, verify before cutting that room will be allowed for
cabling and the AC/DC Power Supply. When making the opening, take
extra care to accurately cut to the correct dimensions. Mounting may
require installation of support(s), countertop routing, or other such
devices. Depending upon checkstand design, you may wish to install an
item diverter to direct items toward the scan window. See the instructions
in this manual titled “Counter Cutout” for more details concerning the
location and preparation of the opening.

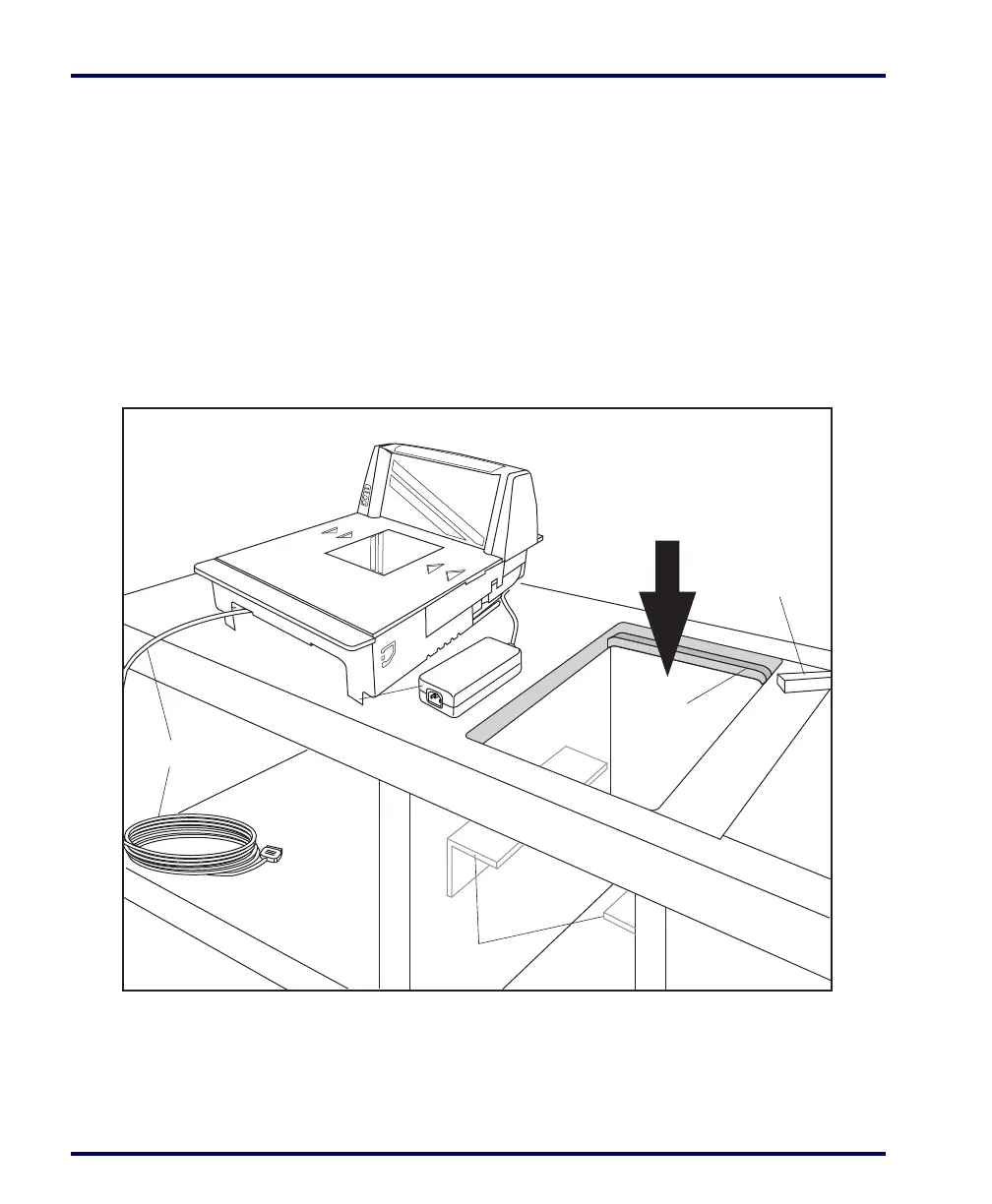

Figure 2-5. Installation Overview
Liquid Spills and Moisture
Select a checkstand design which allows fluids to flow through, and directs
liquids away from any electronic equipment or storage areas.
Item
Diverter
Routed
Support
Lip
Counter Cutout
Support Rails
Cabling
AC/DC
Power
Supply
