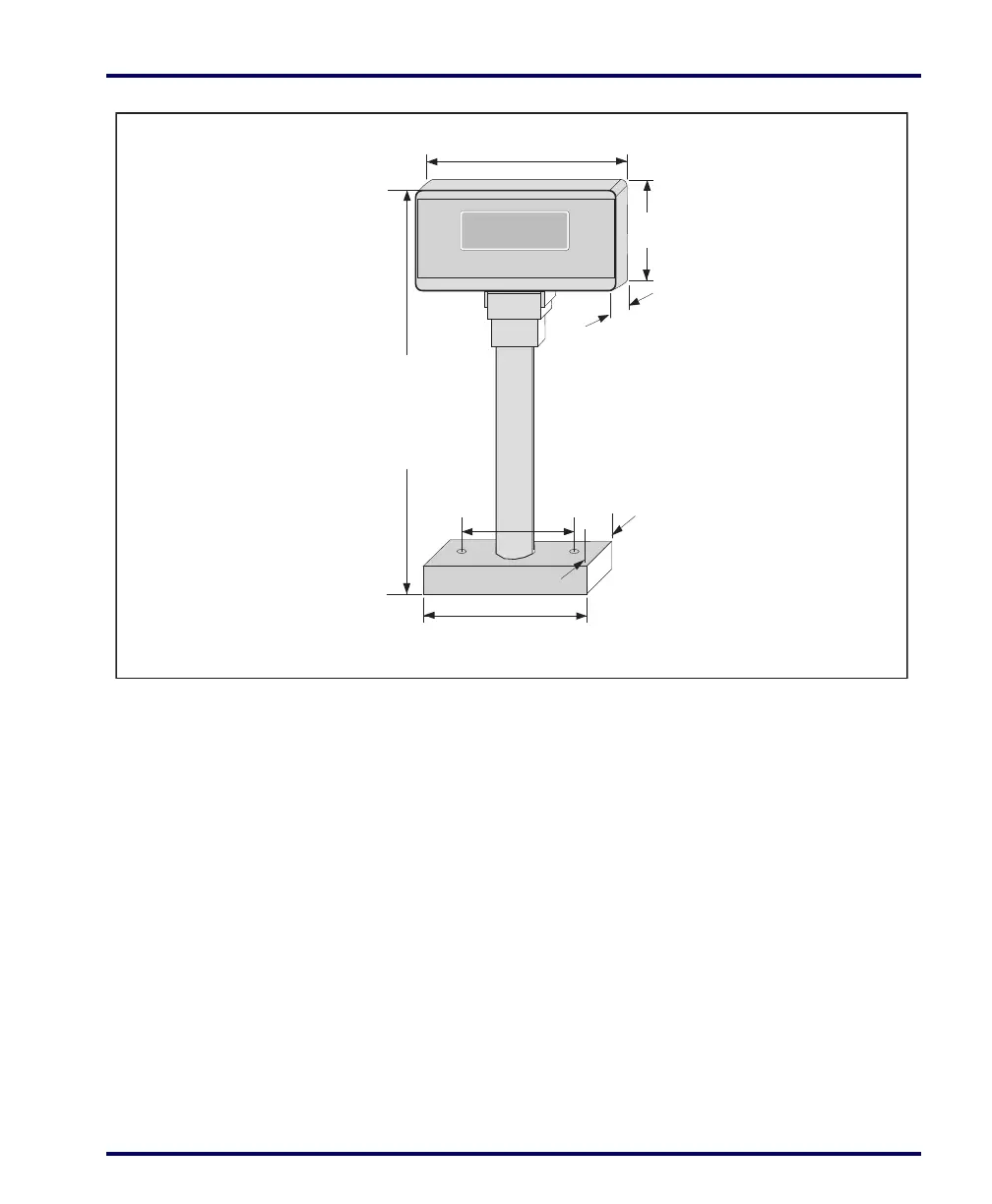

Figure 2-14. Physical Measurements: Remote Display (Short Base)
6. Cut the stalk to fit your installation (if required).
7. Route the cable through the base/stalk so that you can plug the
connector into the display head.
8. Remove the rubber band from the connector and attach the con-
nector to the display head.
9. Slip the display head onto the stalk/base.
10. Feed the entire remaining length of the Remote Scale Display
interface cable through the cable routing hole so that the assem-
bled Remote Scale Display can be positioned over the mounting
screw holes.
11. Install mounting screws or bolts to complete the installation of
the Remote Scale Display. Take care not to pinch or pierce the
interface cable while securing the Remote Scale Display to the
checkstand.
CAPACITY / CAPACITE - 30 X .01 lb / 15 x .005 kg
0.00 lb
5.6"
14.2 cm
Minimum
5.3"
(13.5 cm)
Maximum
11.5"
(29.2 cm)
2.75"
7.0 cm
1.5"
3.8 cm
4.5"
31.6 cm
3.375"
0.953 cm
1.0"
2.5 cm
