8100/8100Ω and 8200/8200Ω Scanner
5. Re-install the All Weighsâ„¢ Platter and verify that it is flush or
just below flush with the countertop. This is necessary to provide
smooth scanning from either direction. Make adjustments as
needed to align the platter with the counter by moving support
rails up or down, or consider installing screws in positions that
will allow their use in adjusting the unit’s position.
6. Once installation is complete, proceed with the Operational Veri-
fication procedures on page 19.

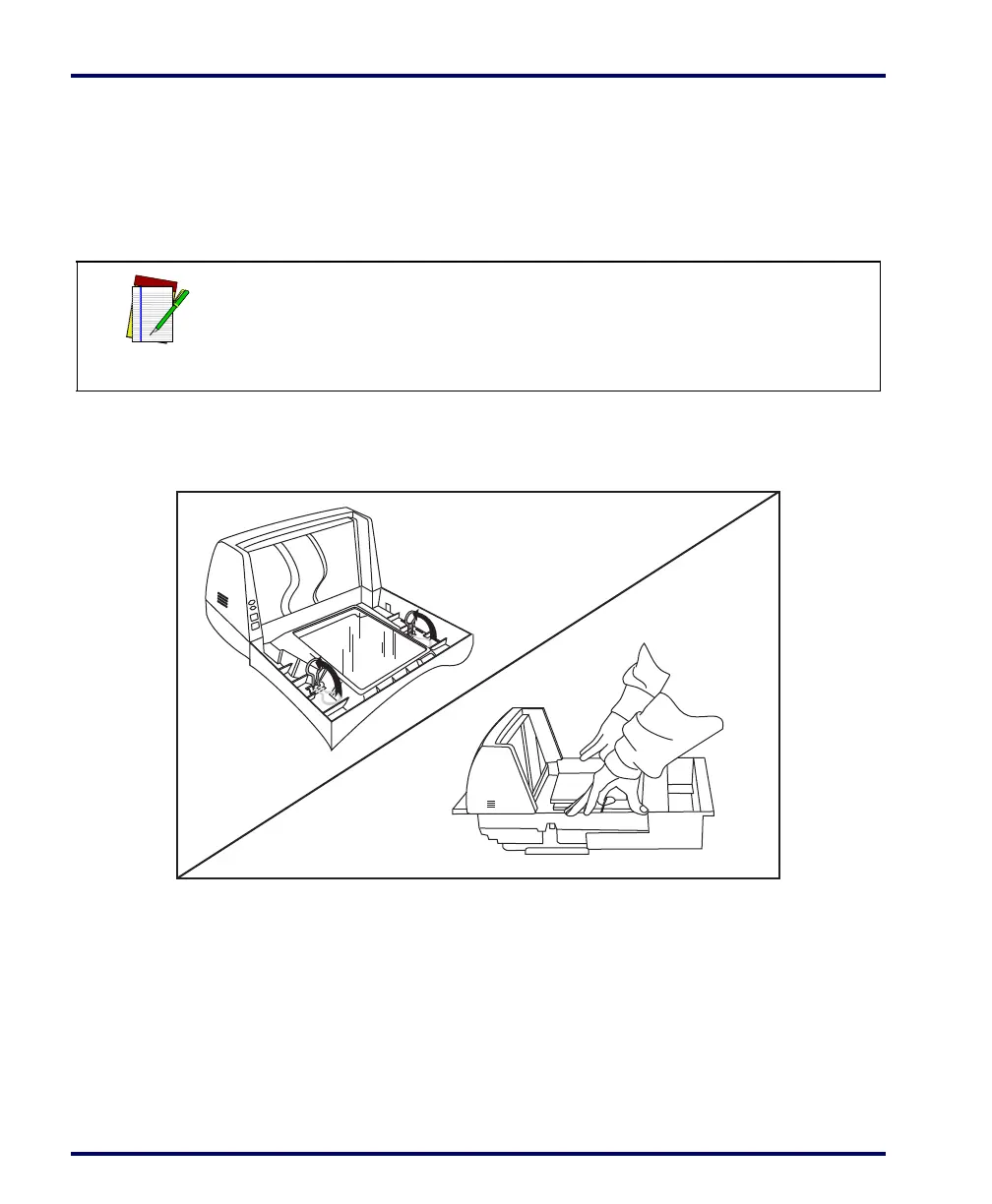

Figure 2-20. Using the Lift Handles
NOTE
Failure to install a scanning-scale in a stable and level position will inhibit
weighing, calibration and zeroing operations. The platter MUST make unob-
structed contact with all of its supports for proper weighing operation.
