Enter/Exit Programming Mode
Product Reference Guide
163

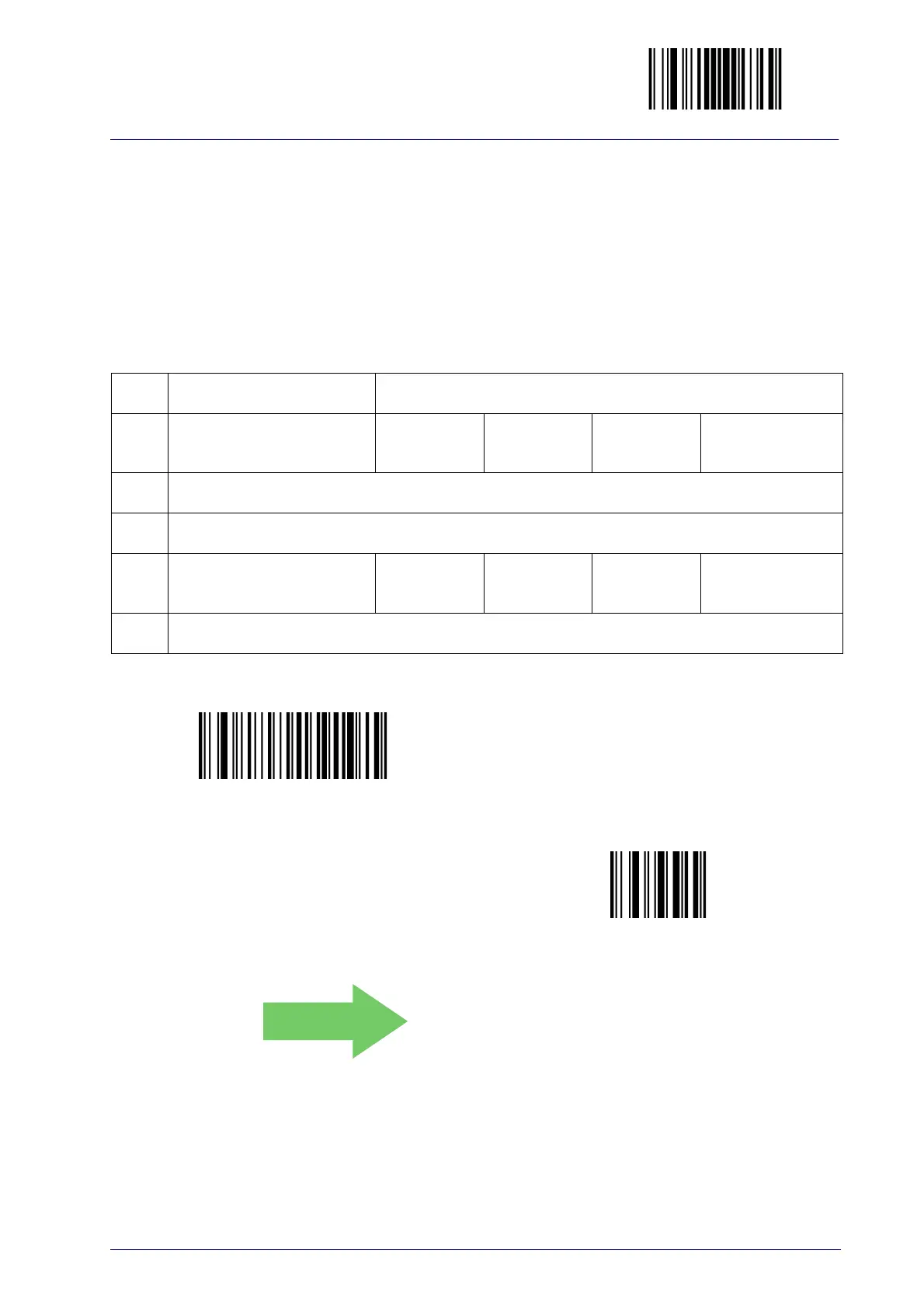

Code 11 Set Length 1
This feature specifies one of the bar code lengths for Code 11 Length Con-
trol. Length 1 is the minimum label length if in Variable Length Mode, or the
first fixed length if in Fixed Length Mode. Length includes the bar code’s
check and data characters. The length can be
set from 2 to 50 characters.
Table 16 provides some examples for setting Length 1. See page 297 for
detailed instructions on setting this feature.
Table 16. Code 11 Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading zeroes)
02 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 11 LENGTH
1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘2’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Code 11 Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar code
abov
e, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by scan-
ning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not s
ave the entry string. You can then start again at the
beginning.
CANCEL
04 = Length 1 is 4 Characters
To Next Page
