Setup
8 PowerScan™ PD9130/PBT9100/PM9100

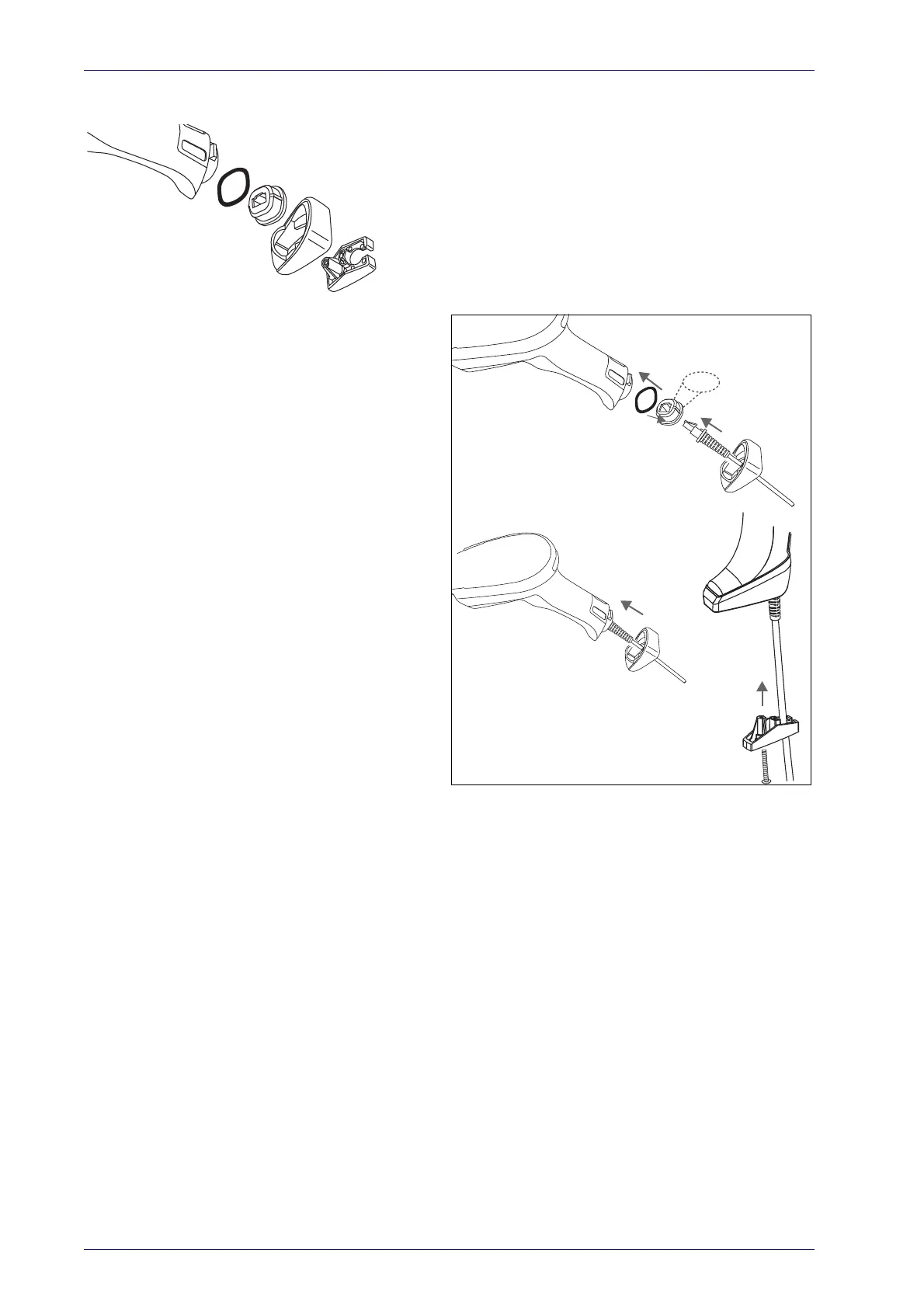

Connecting the Cable (Corded versions)
A
B
C
D
A. Rubber gasket
B. Cable Holder
C. Cover
D. Connector Holder
1. Slip the cable through the Cover.
2. Push the Rubber Gasket onto the Cable
Ho
lder.
3. Push the Cable Holder and gasket into
the
handle. Ensure that the “Front”
marking on the Cable Holder is facing
out, with the arrow pointing towards the
front of the scanner.
4. Insert the end of the cable into the
so
cket of the Cable Holder.
5. Push the Cover along the cable towards
t
he reader, and hook it over the yellow
“tooth” on the back of the handle.
6. Insert the cable through the Connector
Ho
lder, and push it up into the Cover.
7. Insert and tighten the sc
rew to affix the
cable assembly to the reader handle.
FRONT>>
1
2
3
6
4
5
7

Datalogic PowerScan PBT9100 Specifications

General

Harmonized System (HS) code	84716070
Type	Handheld bar code reader
Sensor type	LED
Scanner type	1D
Yaw reading angle	-70 - 70 °
Scanner resolution	0.13 mm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-75 - 75 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, EAN 128, GS1 DataBar, IATA, ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	-
Wireless range	100 m
Bluetooth version	3.0
Operating frequency	2.4-2480 MHz
Standard interfaces	Bluetooth, RS-232
Connectivity technology	Wireless
Certification	IEC 62471
Product color	Black, Yellow
LED indicators	Yes
International Protection (IP) code	IP65
Battery life	10 h
Battery type	Built-in battery
Charging time	4.5 h
Input voltage	10-30 V
Battery capacity	3350 mAh
Power consumption	500 mA
Power source type	Battery
AC adapter output voltage	110 V
Number of reads per charge	60000
Power consumption (typical)	10 W
Cables included	DC, RS-232
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Warranty period	3 year(s)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	240 mm
Weight	405 g
Base dimensions	212 x 110 x 74 mm
