Enter/Exit Programming Mode
Product Reference Guide
265
Define Strings
Configure string 1-5.
To configure this feature, scan the ENTER/EXIT PROGRAMMING MODE bar code at the top
of the page, then the bar code for the String you want to set. Define the label string by scan-
ning 32 digits from the Alphanumeric characters in
Appendix D, Keypad
.
The digits must be the hexadecimal ASCII representation of the desired characters; if less
tha
n the expected string of 16 characters are selected, scan the ENTER/EXIT bar code to
terminate the string.
End by scanning the ENTER/EXIT
bar code twice.

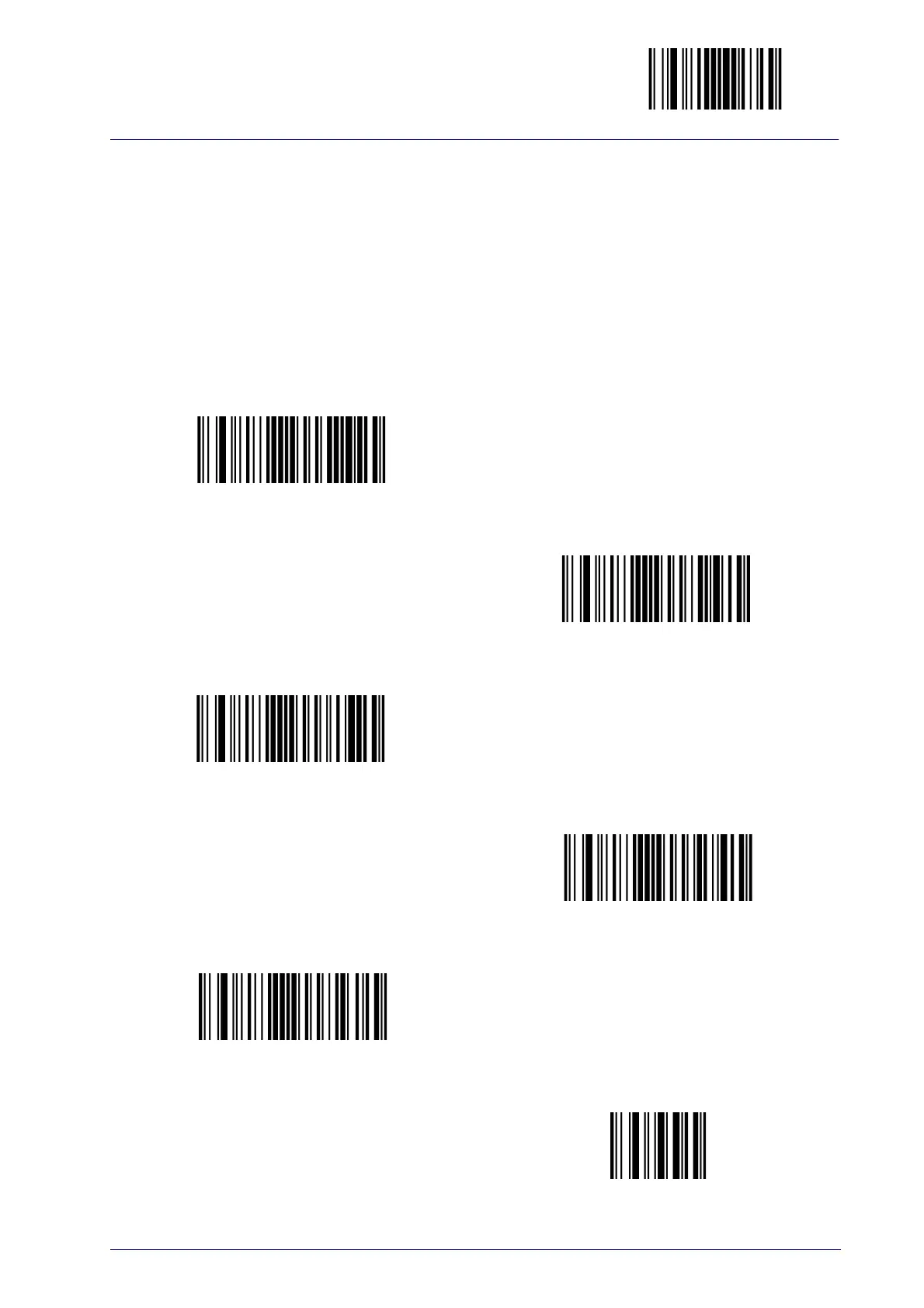

Set String 1
Set String 2
Set String 3
Set String 4
Set String 5
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
