Mounting the BC9xx0 Cradle
Product Reference Guide 13
Connecting and Disconnecting the Interface Cable
The BC9xx0 can be connected to a Host by means of a multi-interface cable,
which must be simply plugged into the Host connector, visible on the front
panel of the cradle.
To disconnect the cable, insert a paper clip or other similar object into the
ho
le corresponding to the Host connector on the body of the cradle. Push

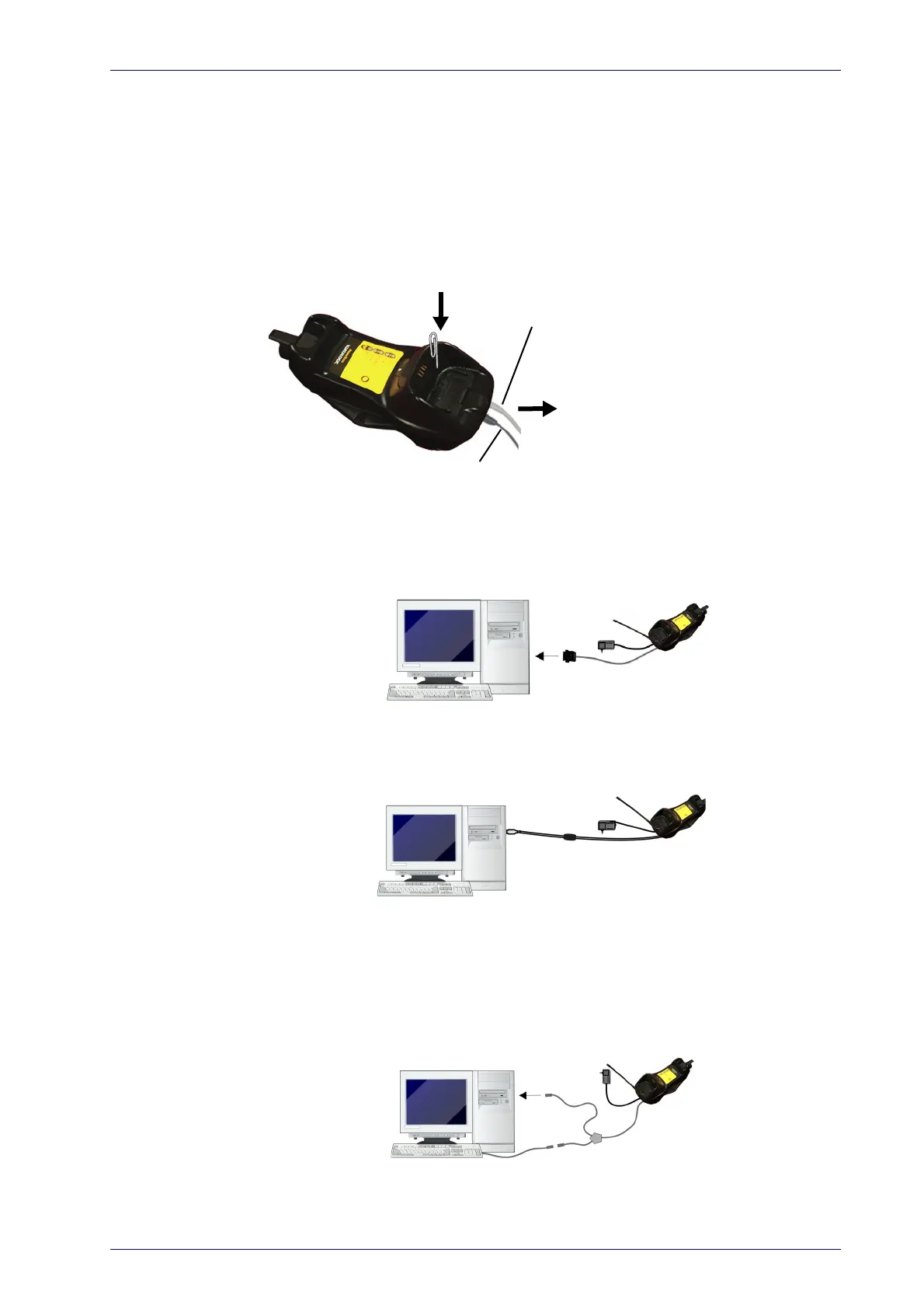

down on the clip while unplugging the cable. Refer to the following figures:
Power
Interface Emulation to Host
Connecting/Disconnecting the Cable
RS-232
USB*
*The power supply is optional, the cradle can be powered by the USB port. In
this case the full charging of an empty battery will take about 10 hours. For
intense usage and/or when the system is shut down during the night, the
use of an external power supply is recommended.
WEDGE

Datalogic PowerScan PBT9100 Specifications

General

Harmonized System (HS) code	84716070
Type	Handheld bar code reader
Sensor type	LED
Scanner type	1D
Yaw reading angle	-70 - 70 °
Scanner resolution	0.13 mm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-75 - 75 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, EAN 128, GS1 DataBar, IATA, ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	-
Wireless range	100 m
Bluetooth version	3.0
Operating frequency	2.4-2480 MHz
Standard interfaces	Bluetooth, RS-232
Connectivity technology	Wireless
Certification	IEC 62471
Product color	Black, Yellow
LED indicators	Yes
International Protection (IP) code	IP65
Battery life	10 h
Battery type	Built-in battery
Charging time	4.5 h
Input voltage	10-30 V
Battery capacity	3350 mAh
Power consumption	500 mA
Power source type	Battery
AC adapter output voltage	110 V
Number of reads per charge	60000
Power consumption (typical)	10 W
Cables included	DC, RS-232
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Warranty period	3 year(s)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	240 mm
Weight	405 g
Base dimensions	212 x 110 x 74 mm
