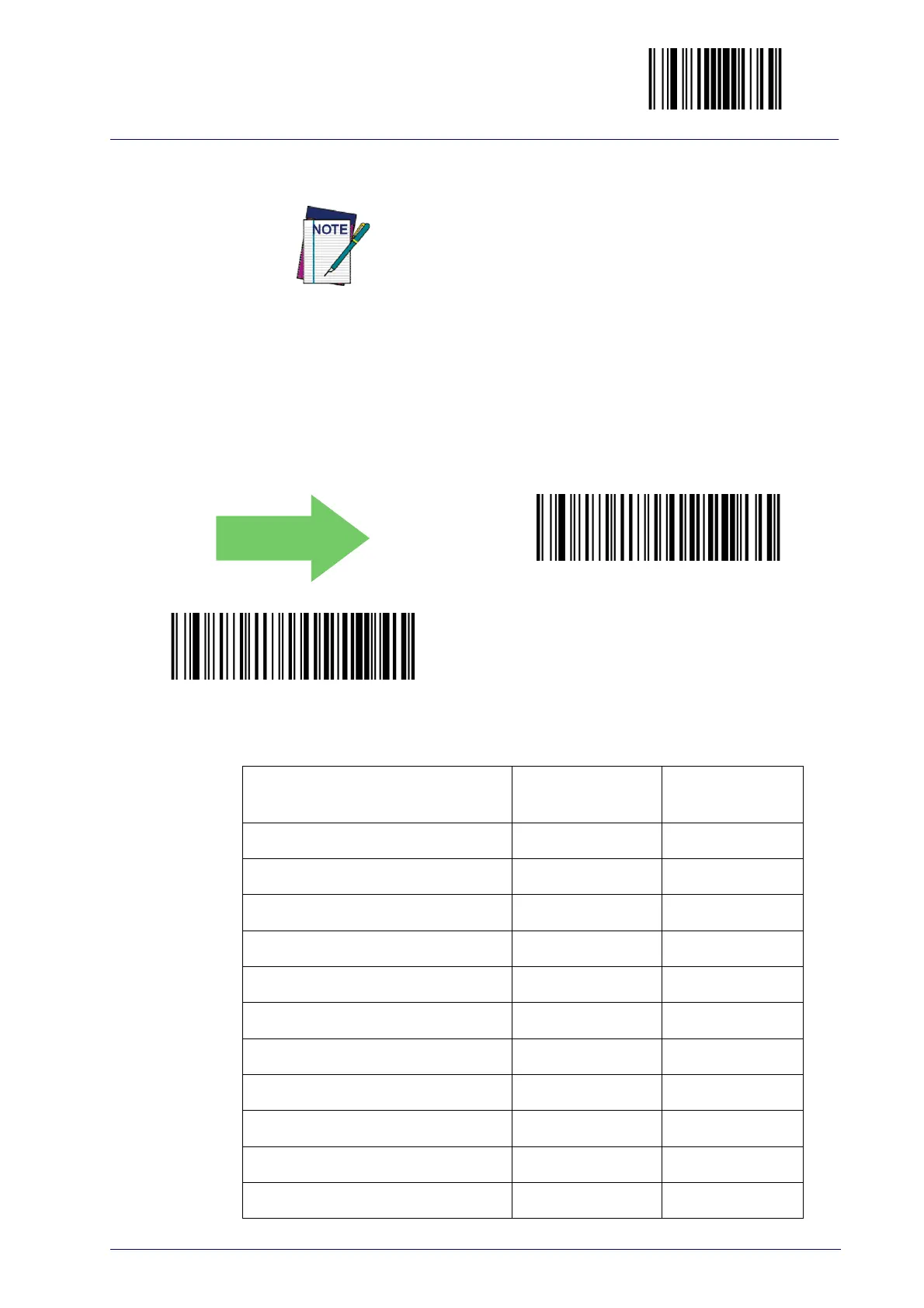

Page #63 background image
Enter/Exit Programming Mode
Product Reference Guide
51
Global AIM ID
This feature enables/disables addition of AIM IDs for all sym-
bology types.
AIM label identifiers (as opposed to custom characters you select yourself as
with label identifiers) can be included with scanned bar code data. See the
following table for a listing of AIM IDs.
AIM label identifiers consist of three characters as follows:
A close brace character (ASCII ‘]’), followed by...
A code character (see some samples in the table below), followed by...
A modifier character (the modifier c
haracter is symbol dependent).
DEFAULT
Global AIM ID = Disable
Global AIM ID = Enable
Table 3
. AIM IDs
Tag Name
AIM ID code
character
AIM ID code
ASCII value
AZTEC z 7A
CHINA SENSIBLE CODE X 58
CODABAR F 46
CODE11 H 48
CODE128 C 43
CODE32 A 41
CODE39 A 41
CODE39 CIP X 58
CODE93 G 47
DATABAR 14 e 65
DATABAR 14 COMPOSITE e 65
