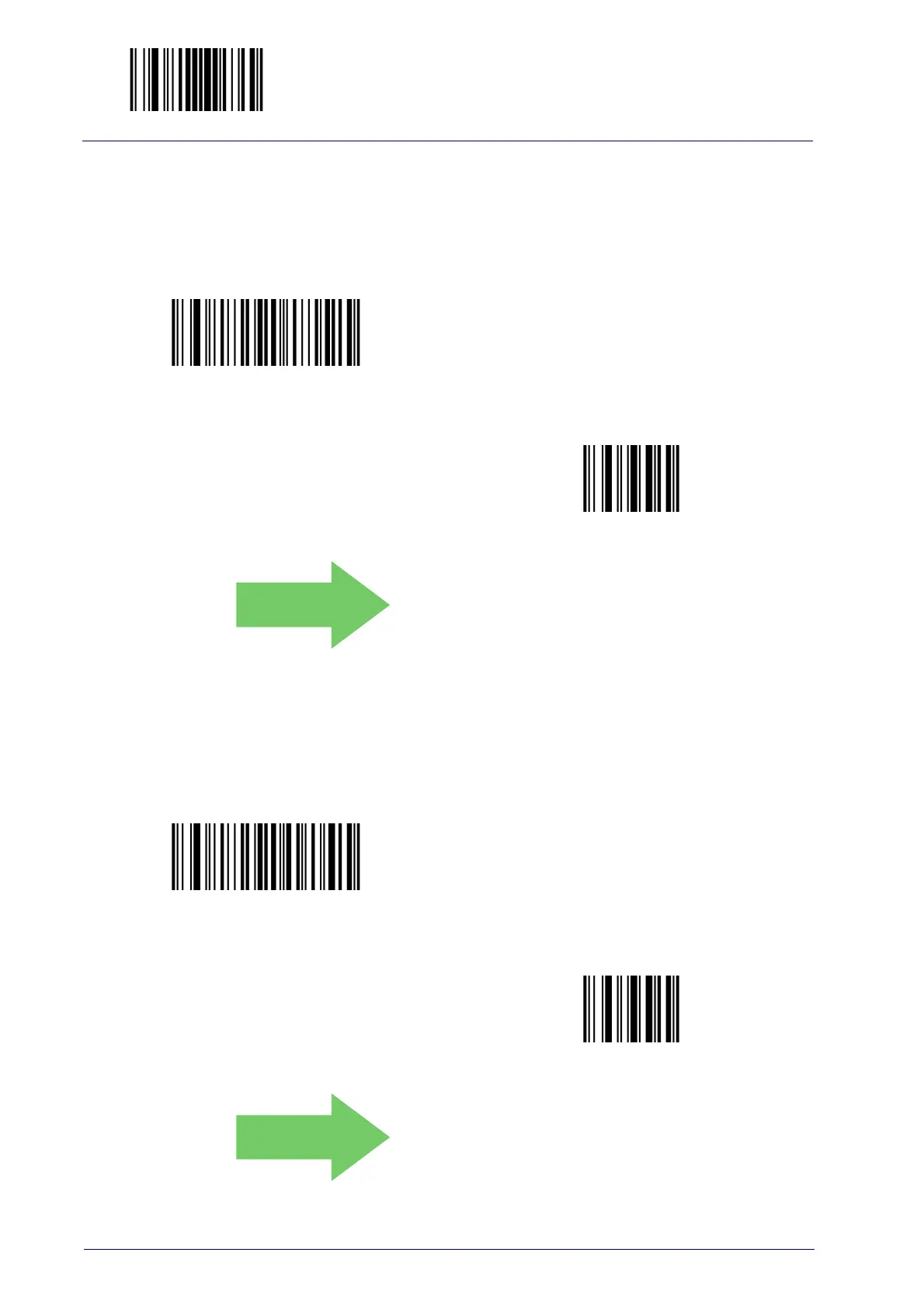

Enter/Exit Programming Mode
32 PowerScan™ PD9130/PBT9100/PM9100
ACK Character
This setting specifies an ASCII character or hex value to be used as the ACK
character. ASCII characters or any hex value from 0 to 0xFF can be selected.
See page 288 for more information.
Select ACK Character Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad repre-
senting your desired character(s). End by scanning
the ENTER/EXIT ba
r code twice.
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
0x06 ‘ACK’ Character
NAK Character
This setting specifies an ASCII character or hex value to be used as the NAK
character. ASCII characters or any hex value from 0 to 0xFF can be selected.
See page 289 for more information.
Select NAK Character Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad repre-
senting your desired character(s). End by scanning
the ENTER/EXIT ba
r code twice.
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
0x15 ‘NAK’ Character

Datalogic PowerScan PBT9100 Specifications

General

Harmonized System (HS) code	84716070
Type	Handheld bar code reader
Sensor type	LED
Scanner type	1D
Yaw reading angle	-70 - 70 °
Scanner resolution	0.13 mm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-75 - 75 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, EAN 128, GS1 DataBar, IATA, ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	-
Wireless range	100 m
Bluetooth version	3.0
Operating frequency	2.4-2480 MHz
Standard interfaces	Bluetooth, RS-232
Connectivity technology	Wireless
Certification	IEC 62471
Product color	Black, Yellow
LED indicators	Yes
International Protection (IP) code	IP65
Battery life	10 h
Battery type	Built-in battery
Charging time	4.5 h
Input voltage	10-30 V
Battery capacity	3350 mAh
Power consumption	500 mA
Power source type	Battery
AC adapter output voltage	110 V
Number of reads per charge	60000
Power consumption (typical)	10 W
Cables included	DC, RS-232
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Warranty period	3 year(s)
Sustainability certificates	RoHS

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	240 mm
Weight	405 g
Base dimensions	212 x 110 x 74 mm
