Configuring the Base Station
Product Reference Guide
9
Configuring the Base Station
To set up your BC9xx0 cradle you must:
1. Physically install the cradle.
2. Make all system connections.
3. Configure the BC9xx0 cradle.
Mounting the BC9xx0 Cradle
The cradle package contains the following items:
BC9xx0 Base Station (with Desktop Mounting
Bracket installed)
1 Metal Mounting plate
BC9xx0 Quick Reference Guide
(this manual)
1 Wall Mounting Bracket
The cradle can be either mounted on a flat surface for desktop usage or
affixed vertically to a wall.
Mounting Brackets
The cradle comes with two different mounting brackets. The appropriate
bracket is used depending on whether the cradle will be mounted on a hori-
zontal or vertical surface. When shipped, the cradle has the Desktop Mount-
ing Bracket installed. For vertical installation, the Wall Mounting Bracket
must
be attached instead.

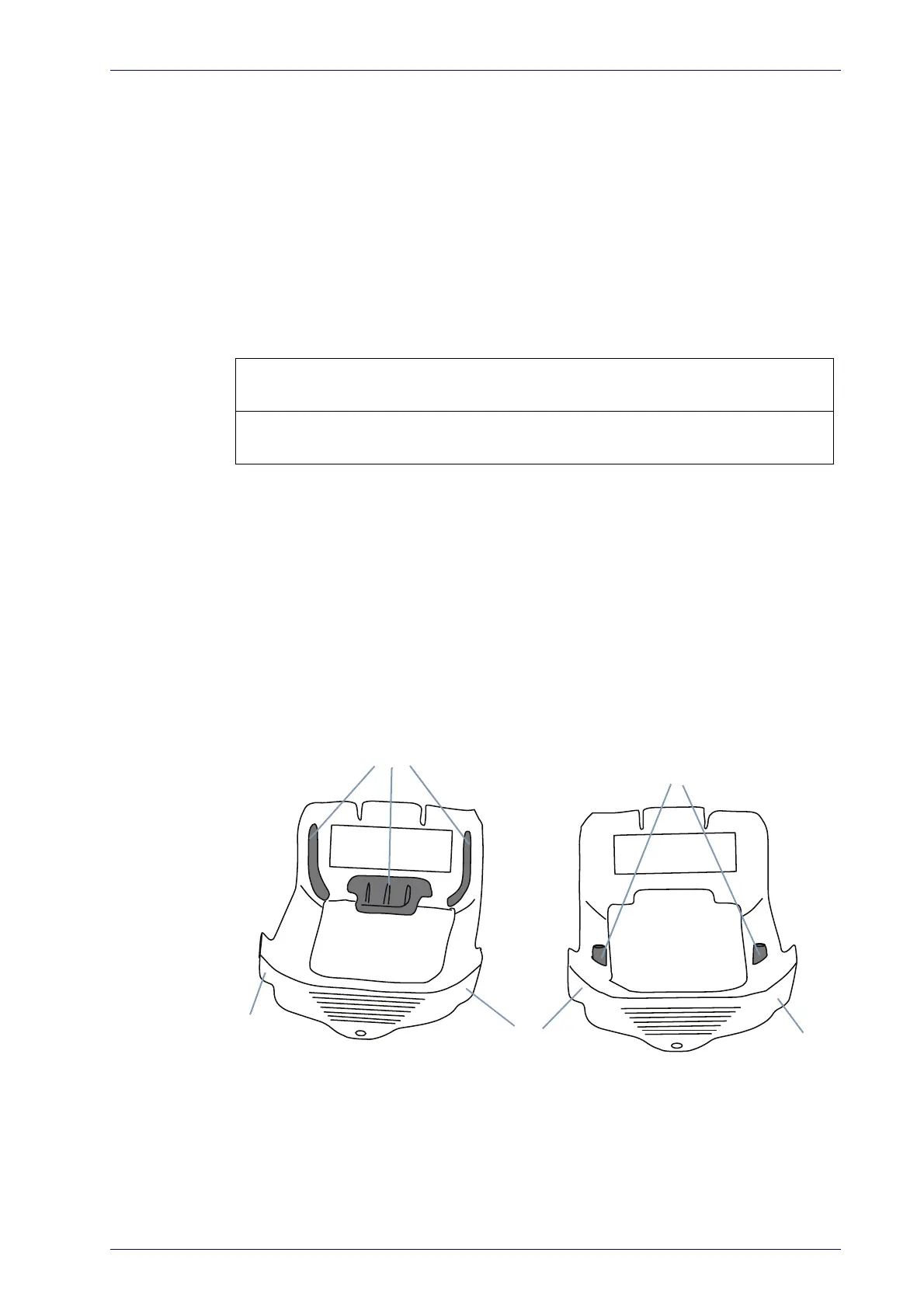

Figure 1. Mounting Brackets
Desktop Mounting Bracket
Wall Mounting Bracket
Bosses
(Horizontal )
(Vertical)
Tab
Tab
Tab
Ribs
• Desktop mount bracket has ribs to keep the scanner in place when the
cradle is horizontal.
• Wall mount bracket contains bosses to
keep the scanner in place when
the cradle is vertical.
