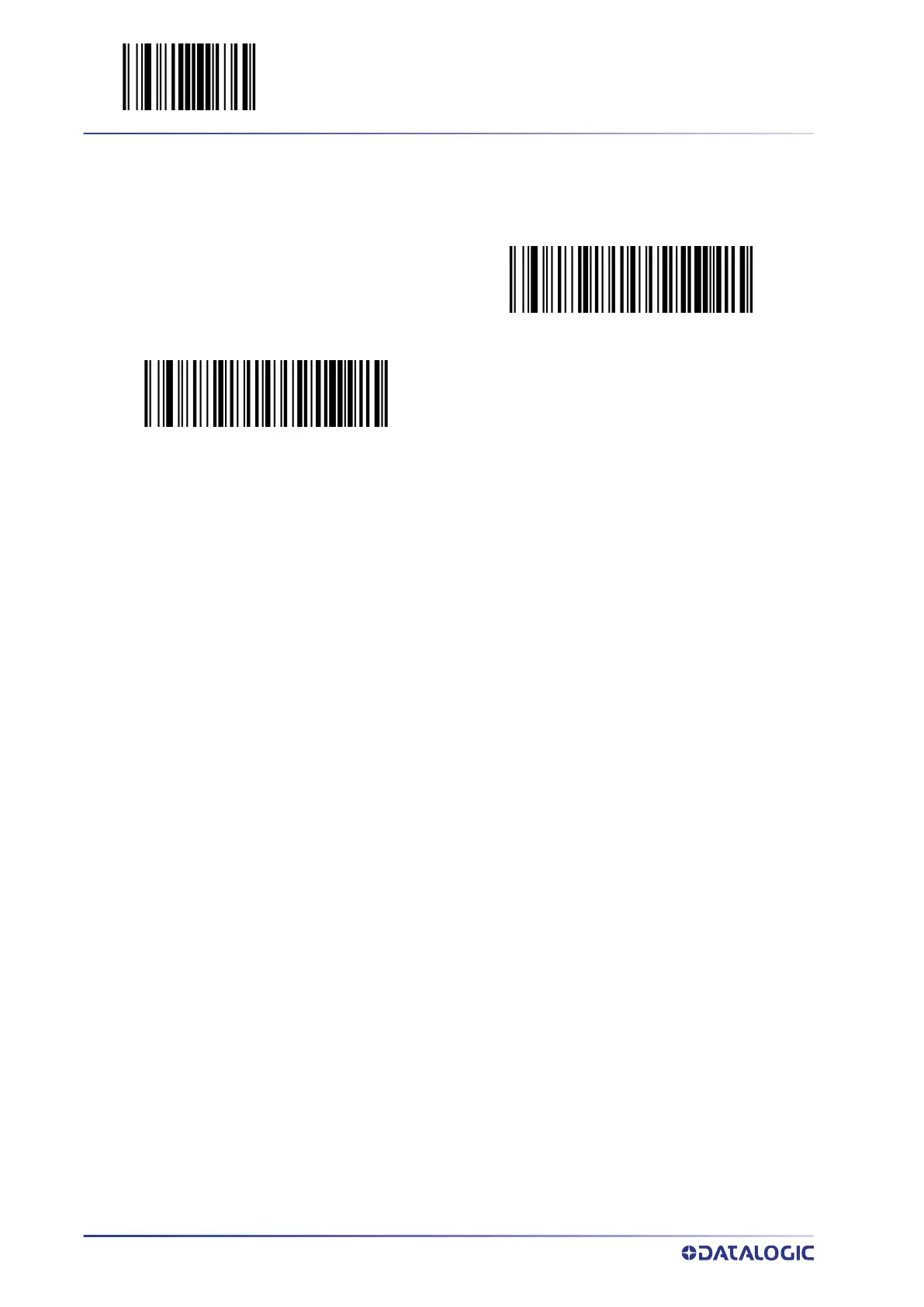

ENTER/EXIT PROGRAMMING MODE
SYMBOLOGIES
76
QUICKSCAN™ I QD2200
Expand EAN-8 to EAN-13
Enable this option to e
xpand EAN-8/
JAN-8 labels to EA
N-13/JAN-13.
$C8B3B00
EAN-8 to EAN-13 = Don’
t
Expand
EAN-8 to EAN-13 = Expand
$C8B3B01
105
107
Table of Contents
default chapter
3
Table of Contents
3
About this Manual
10
Overview
10
Preface
10
Manual Conventions
11
Reseller Technical Support
12
Support through the Website
12
Technical Support
12
Chapter 1. Introduction
14
About the Scanner
14
The most Prompt Response at the Pos Check-Out
14
Comfort and Reliability
14
Using the Quickscan™ I QD2200 Reader
14
Programming the Reader
15
Configuration Methods
15
Datalogic Aladdin
16
Chapter 2. Setup
17
Unpacking
17
Setting up the QUICKSCAN™ QD2200 Reader
17
Connecting the Host Interface
17
USB Connection
18
Hands Free Stand/Holder
19
Parts of the Reader
20
Using the QUICKSCAN™ I QD2200
21
Interface Selection
21
Configuring the Interface
22
Customizing Configuration Settings
24
Using the Programming Bar Codes
24
Datalogic Aladdin™ Utility
24
Interface Settings
24
Configuring Other Features
25
Software Version Transmission
25
Resetting the Product Configuration to Defaults
25
Restore Custom Default Configuration
25
Restore Factory Configuration
26
Chapter 3. Configuration with Bar Codes
27
Configuration Parameters
27
Interface Configuration
27
Parameters Common to All Interface Applications
27
Symbology-Specific Parameters
28
Global Interface Features
29
Host Commands - Obey/Ignore
29
USB Suspend Mode
30
Usb-Com Interfaces
31
Programming Bar Codes
32
Usb-Com Settings
32
Intercharacter Delay
32
Beep on ASCII BEL
33
Beep on Not on File
33
ACK NAK Options
34
ACK Character
35
NAK Character
35
ACK NAK Timeout Value
36
ACK NAK Retry Count
36
ACK NAK Error Handling
37
Indicate Transmission Failure
37
Bar Code Reading
38
Disable Character
38
Enable Character
38
Keyboard Interface
39
Country Mode
40
Setup on PC to Use ALT Universal
40
Setting Country Mode
41
Other Keyboard Parameters
55
Encoding Type
55
ALT Output Type
62
Keyboard Numeric Keypad
63
Keyboard Send Control Characters
63
Intercharacter Delay
64
Intercode Delay
64
USB Keyboard Speed
65
Usb-Oem Interface
66
USB-OEM Device Usage
67
USB-OEM Interface Options
67
Data Format
68
Global Prefix/Suffix
69
Global AIM ID
70
Gs1-128 Aim ID
70
Label ID
71
Label ID: Pre-Loaded Sets
71
Label ID: Set Individually Per Symbology
72
Label ID Control
72
Label ID Symbology Selection
73
Case Conversion
78
Character Conversion
78
Reading Parameters
79
Scanning Features
80
Scan Mode
80
Scanning Active Time
81
Flash on Time
81
Flash off Time
82
Double Read Timeout
82
Stand Mode/Object Detection Sensitivity
84
Stand Mode/Object Detection Illumination off Time
85
Beeper Control
86
Power on Alert
86
Good Read Beep Type
86
Good Read Beep Frequency
87
Good Read Beep Length
88
Good Read Beep Volume
89
Led Control
90
Green LED Good Read Enable
90
Good Read LED Duration
91
Good Read: When to Indicate
92
Green Spot Duration
93
Illuminator Intensity (Power Level)
94
Symbologies
95
Disable All Symbologies
96
Coupon Control
96
Upc-A
97
UPC-A Enable/Disable
97
UPC-A Check Character Transmission
97
Expand UPC-A to EAN-13
98
UPC-A Number System Character Transmission
98
Upc-E
99
UPC-E Enable/Disable
99
UPC-E Check Character Transmission
99
Expand UPC-E to EAN-13
100
Expand UPC-E to UPC-A
100
UPC-E Number System Character Transmission
100
GTIN Formatting
101
EAN-13 Enable/Disable
102
EAN-13 Check Character Transmission
102
EAN-13 Flag 1 Character
103
EAN-13 to ISBN Conversion
103
EAN-13 to ISSN Conversion
104
EAN-8 Enable/Disable
105
EAN-8 Check Character Transmission
105
Expand EAN-8 to EAN-13
106
Upc/Ean Global Settings
107
UPC/EAN Price Weight Check
107
UPC/EAN Quiet Zones
108
Add-Ons
109
Optional Add-Ons
110
Optional Add-On Timer
111
Gs1 Databar™ Omnidirectional
112
GS1 Databar Omnidirectional Enable/Disable
112
GS1 Databar Omnidirectional to GS1-128 Emulation
112
Gs1 Databar™ Expanded
113
GS1 Databar Expanded Enable/Disable
113
GS1 Databar Expanded to GS1-128 Emulation
113
GS1 Databar Expanded Length Control
114
GS1 Databar Expanded Set Length 1
114
GS1 Databar Expanded Set Length 2
115
Gs1 Databar™ Limited
116
GS1 Databar Limited Enable/Disable
116
GS1 Databar Limited to GS1-128 Emulation
116
Code 39
117
Code 39 Enable/Disable
117
Code 39 Check Character Calculation
117
Code 39 Check Character Transmission
118
Code 39 Start/Stop Character Transmission
118
Code 39 Full ASCII
119
Code 39 Quiet Zones
119
Code 39 Length Control
120
Code 39 Set Length 1
120
Code 39 Set Length 2
122
Trioptic Code
123
Trioptic Code Enable/Disable
123
Code 39 Danish Ppt
123
Code 39 Danish PPT Enable/Disable
123
Code 39 Pzn
124
Code 39 PZN Enable/Disable
124
Code 39 la Poste
124
Code 39 la Poste Enable/Disable
124
Code 32 (Italian Pharmaceutical)
125
Code 32 Enable/Disable
125
Code 32 Feature Setting Exceptions
125
Code 32 Check Character Transmission
125
Code 32 Start/Stop Character Transmission
126
Code 39 Cip (French Pharmaceutical)
126
Code 39 CIP Enable/Disable
126
Code 128
127
Code 128 Enable/Disable
127
Expand Code 128 to Code 39
127
Code 128 Check Character Transmission
128
Code 128 Function Character Transmission
128
Code 128 Quiet Zones
129
Code 128 Length Control
129
Code 128 Set Length 1
130
Code 128 Set Length 2
130
Gs1-128
131
GS1-128 Enable
131
Interleaved 2 of 5 (I 2 of 5)
131
I 2 of 5 Enable/Disable
132
I 2 of 5 Check Character Calculation
132
I 2 of 5 Check Character Transmission
133
I 2 of 5 Length Control
134
I 2 of 5 Set Length 1
134
I 2 of 5 Set Length 2
135
Interleaved 2 of 5 Cip Hr
135
Interleaved 2 of 5 CIP HR Enable/Disable
135
Standard 2 of 5
136
Standard 2 of 5 Enable/Disable
136
Standard 2 of 5 Check Character Calculation
136
Standard 2 of 5 Check Character Transmission
137
Standard 2 of 5 Length Control
137
Standard 2 of 5 Set Length 1
138
Standard 2 of 5 Set Length 2
138
Compressed 2 of 5
139
Compressed 2 of 5 Enable/Disable
139
Compressed 2 of 5 Check Character Calculation
139
Compressed 2 of 5 Check Character Transmission
140
Compressed 2 of 5 Length Control
140
Compressed 2 of 5 Set Length 1
141
Compressed 2 of 5 Set Length 2
141
Datalogic 2 of 5
142
Datalogic 2 of 5 Enable/Disable
142
Datalogic 2 of 5 Check Character Calculation
142
Datalogic 2 of 5 Check Character Transmission
143
Datalogic 2 of 5 Length Control
143
Datalogic 2 of 5 Set Length 1
144
Datalogic 2 of 5 Set Length 2
144
Industrial 2 of 5
145
Industrial 2 of 5 Enable/Disable
145
Industrial 2 of 5 Check Character Calculation
145
Industrial 2 of 5 Check Character Transmission
146
Industrial 2 of 5 Length Control
146
Industrial 2 of 5 Set Length 1
147
Industrial 2 of 5 Set Length 2
147
Iata
148
IATA Enable/Disable
148
IATA Check Character Transmission
148
Follett 2 of 5
149
Follett 2 of 5 Enable/Disable
149
Codabar
150
Codabar Enable/Disable
150
Codabar Check Character Calculation
150
Codabar Check Character Transmission
151
Codabar Start/Stop Character Transmission
151
Codabar Start/Stop Character Set
152
Codabar Start/Stop Character Match
152
Codabar Quiet Zones
153
Codabar Length Control
154
Codabar Set Length 1
154
Codabar Set Length 2
155
Abc Codabar
156
ABC Codabar Enable/Disable
156
ABC Codabar Concatenation Mode
156
ABC Codabar Dynamic Concatenation Timeout
157
ABC Codabar Force Concatenation
157
Isbt 128
158
ISBT 128 Concatenation
158
ISBT 128 Concatenation Mode
158
ISBT 128 Dynamic Concatenation Timeout
159
ISBT 128 Force Concatenation
160
ISBT 128 Advanced Concatenation Options
160
Code 11
161
Code 11 Enable/Disable
161
Code 11 Check Character Calculation
161
Code 11 Check Character Transmission
162
Code 11 Length Control
162
Code 11 Set Length 1
163
Code 11 Set Length 2
163
Code 93
164
Code 93 Enable/Disable
164
Code 93 Check Character Calculation
164
Code 93 Check Character Transmission
165
Code 93 Length Control
165
Code 93 Set Length 1
166
Code 93 Set Length 2
166
Code 93 Quiet Zones
167
Msi
168
MSI Enable/Disable
168
MSI Check Character Calculation
168
MSI Check Character Transmission
169
MSI Length Control
169
MSI Set Length 1
170
MSI Set Length 2
170
Plessey
171
Plessey Enable/Disable
171
Plessey Check Character Calculation
171
Plessey Check Character Transmission
172
Plessey Length Control
172
Plessey Set Length 1
173
Plessey Set Length 2
173
Bc412
174
BC412 Enable/Disable
174
BC412 Check Character Calculation
174
BC412 Length Control
175
BC412 Set Length 1
176
BC412 Set Length 2
176
Chapter 2. References
177
USB COM Parameters
177
Intercharacter Delay
177
ACK NAK Options
179
ACK Character
179
NAK Character
180
ACK NAK Timeout Value
181
ACK NAK Retry Count
182
Disable Character
183
Enable Character
184
Keyboard Interface
185
Intercharacter Delay
185
Intercode Delay
186
Data Format
187
Data Editing
187
Please Keep in Mind
187
Global Prefix/Suffix
188
Example: Setting a Prefix
188
Global AIM ID
189
Label ID
190
Label ID: Pre-Loaded Sets
190
Label ID: Set Individually Per Symbology
192
Character Conversion
194
Scanning Features
195
Scan Mode
195
Scanning Active Time
196
Flash on Time
197
Flash off Time
198
LED and Beeper Indicators
199
Good Read LED Duration
199
Symbologies
200
Set Length
200
Set Length 1
200
Set Length 2
201
Appendix A. Technical Specifications
203
QD2200 Technical Specifications
203
Common Reading Characteristics
204
Decoding Capabilities
205
LED and Beeper Indications
205
User Indications for QD2200
206
Programming Mode
206
Troubleshooting
207
Standard Cable Pinouts
208
Appendix B. Standard Defaults
209
Default Exceptions
217
Appendix C. Sample Barcodes
218
Sample Barcodes
218
1D Barcodes
218
GS1 Databar™ (RSS)
220
GS1 Databar™ (-14)
220
Appendix Dkeypad
221
Appendix E. Scancode Tables
223
Control Character Emulation
223
Single Press and Release Keys
223
Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE
225
Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE (Continued)
225
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode
227
Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode (Continued)
227
Digital Interface
228
Ibm31Xx 102-Key
229
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic Quickscan QD2200 and is the answer not in the manual?
Ask a question
Datalogic Quickscan QD2200 Specifications
General
Brand
Datalogic
Model
Quickscan QD2200
Category
Barcode Reader
Language
English
Related product manuals
Datalogic QuickScan QD2430
48 pages
Datalogic QuickScan QD2131
2 pages
Datalogic QuickScan QD2590
303 pages
Datalogic QuickScan QD2500
48 pages
Datalogic QuickScan QD24 series
314 pages
Datalogic QuickScan i QD2100
388 pages
Datalogic QuickScan I QD2400
282 pages
Datalogic QuickScan L QD2300
32 pages
QuickScan I QD21 1 Series
360 pages
Datalogic QuickScan L QD 2300
192 pages
Datalogic QD 2300 QuickScan L
28 pages
Datalogic QuickScan BC2030
64 pages
Need help?
General
To Next Page
