TECHNICAL SPECIFICATIONS
174
QUICKSCAN™ I QD2200
COMMON READING CHARACTERISTICS
Table 19 Reading Characteristics
Cable Length
Refer to www.datalogic.com
OPTICAL CHARACTERISTICS
Tilt Tolerance
a
+/- 45°
Pitch Tolerance
a
+/- 65°
Skew Tolerance
a
+/- 65°
Field of View
a
HORIZONTAL 56° +/- 2°
PCS (Datalogic Test
Chart)
minimum 15%
a. Based on ISO 15423 specifications
READING CHARACTERISTICS
DOF
a

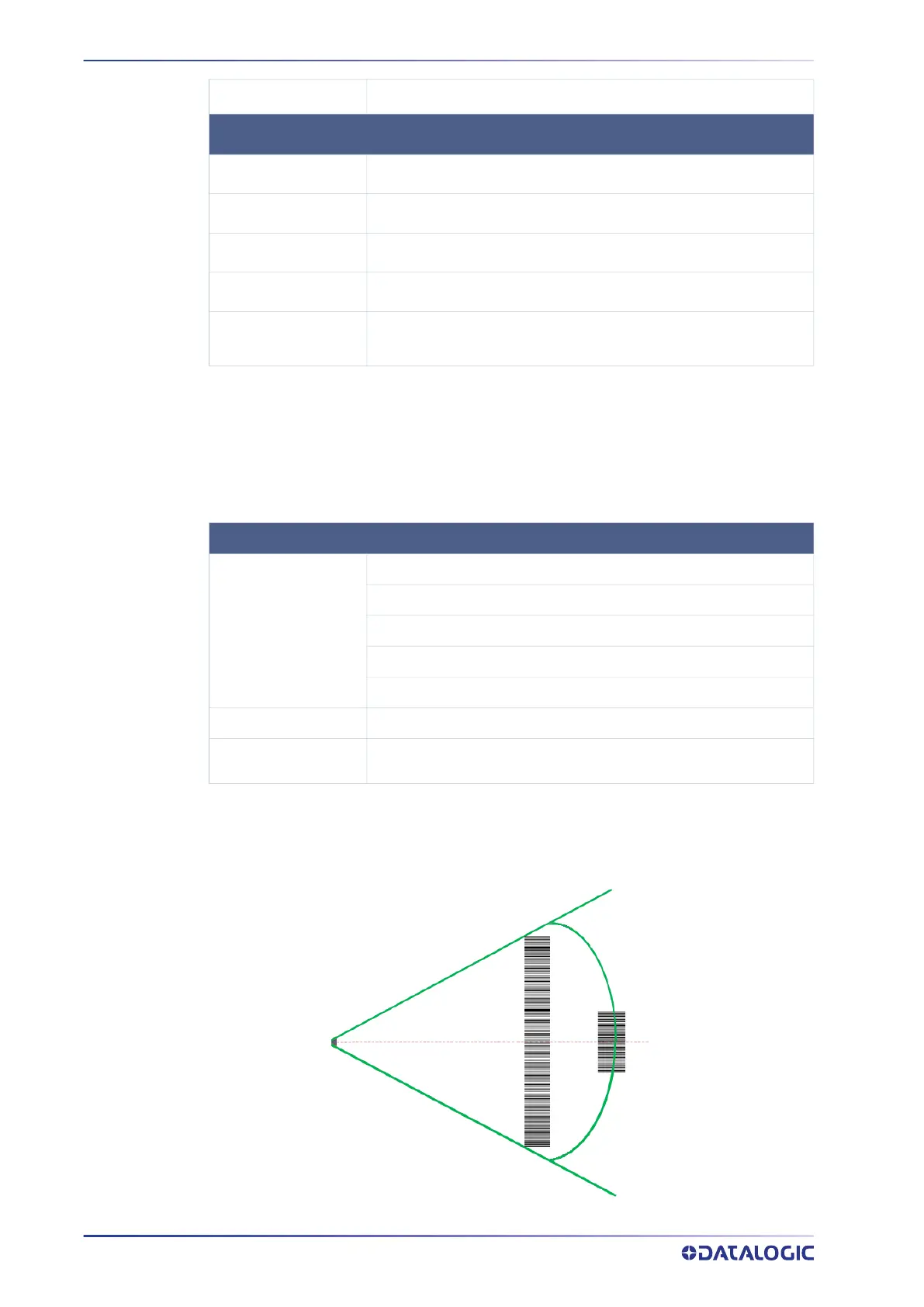

a. The depth of field is defined by an arc and not a plane. Shorter bar codes of a given resolution
can be read at a further distance than longer bar codes (as explained in the following image).
Code 39 4mils: 25 to 220mm / 0.98 to 8.66 inch
b
b. All labels grade A, typical environmental light, 20°C, label inclination 10°.
Code 39 5mils: 10 to 300mm / 0.39 to 11.8 inch
b
Code 39 7.5mils: 10 to 450mm / 0.39 to 17.7 inch
b
Code 39 10mils: 10 to 600mm / 0.39 to 23.6 inch
b
Code 39 20mils: 30 to 1030mm / 1.18 to 40.55 inch
b
EAN13/UPC A 13 mils: 10 to 680mm / 0.39 to 26.77 inch
b
Resolution
(Maximum)
0.0077mm /3mils
