SETUP
7
QUICKSCAN™ I QD2200
Besides the collapsible stand shown in the picture above, all the stands of the Quick-
Scan 2500 Series (2D scanners) are also available and compatible with the QD2200
Series, but the auto-sense capability is not active with the QuickScan QD2200.
See
page 50 to change Scan Mode and allow the user to operate in hands-free mode.

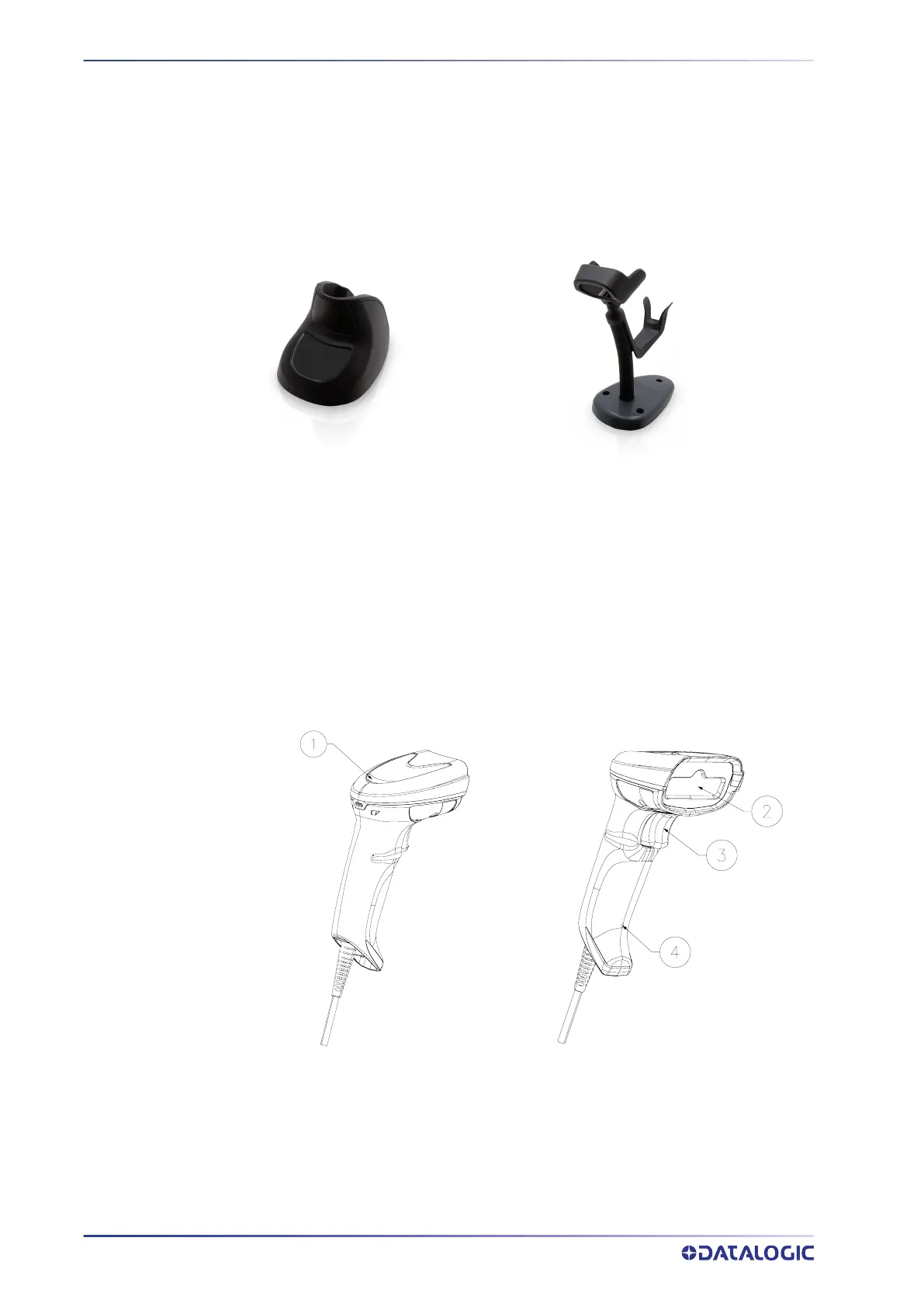

Figure 5 - Compatible stands for QD2200
PARTS OF THE READER
LEDs on the gun provide information about data transmission.
Figure 6 - Quickscan™ QD2200 Gun LEDs
STD-AUTO-QD25-BK
Stand, Autosense, Black
STD-AUTFLX-QD25-BK
Stand, Autosense Flex, Black
1. LED 3. Trigger
2. Scan Window 4. Cable Release Hole
