TECHNICAL SPECIFICATIONS
178 QUICKSCAN™ I QD2200
STANDARD CABLE PINOUTS
Figure 5 and Table 22 on page 178 provide standard pinout information for the scan-
ner’s cable.

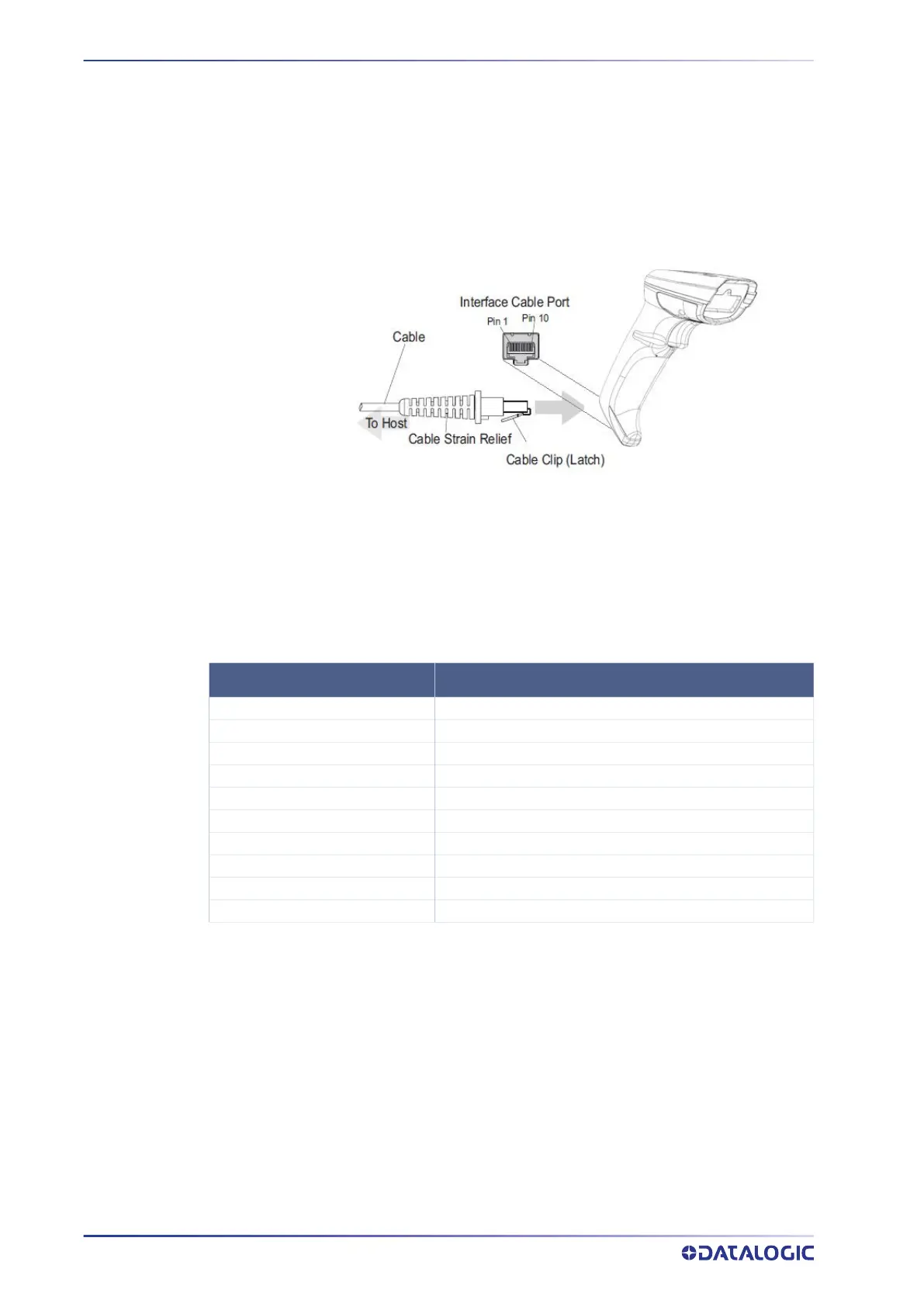

Figure 5 Standard Cable Pinouts
The signal descriptions in Table 21 apply to the connector on the scanner and are for
reference only.
Table 22 Standard Cable Pinouts — Scanner Side
PIN USB
1
2 D+
3 D-
4 GND
5
6
7 VCC
8
9
10

Datalogic Quickscan QD2200 Specifications

General

Brand	Datalogic
Model	Quickscan QD2200
Category	Barcode Reader
Language	English
