vPad-A1 OPERATORS MANUAL
After saving or when the button in
Figure 106
is pressed, the interface returns to the
“Customize Envelope” screen in
Figure 103
and users can continue working on the same Envelope.
Pressing the "Escape" button on that screen will dismiss the tool and return to NIBP simulation
settings.
4.8.2.5 Self Test: NIBP Pulse Generator

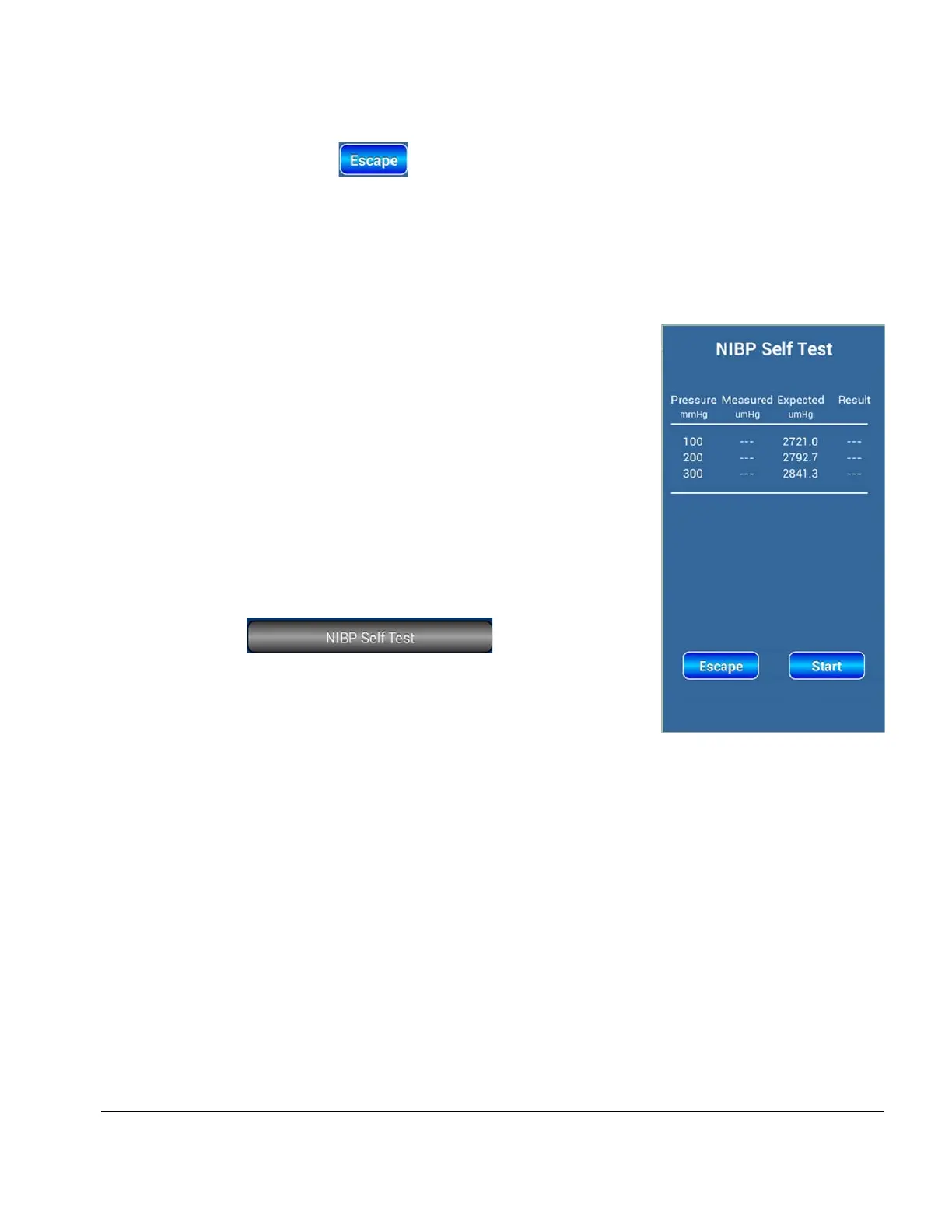

The NIBP Self Test Tool shown in
Figure 107
checks the height of
standardized test pulses. All vPad-BP simulators are calibrated
before leaving factory to ensure that each pressure pulse generator
can accurately produce the same range of pulse amplitudes during an
NIBP Simulation. However, with its mechanical components under
heavy use or simply over a period of time, the generator’s
performance may in some cases drift away from factory conditions.
Since conditions of self-test may be different from conditions at
factory calibration, failing the self test is not indicative of poor
performance. However, in the event that failing results as seen, it is
recommended that users should schedule a re-calibration for the
vPad-BP simulator unit at their earliest convenience.
Pressing the button on the
Settings screen launches the Self Test Tool.
Figure 107
Manual Operation/Chapter 4 # Page 72
