vPad-A1 OPERATORS MANUAL
Figure 1
3Setup
vPad-A1 is a modular system having a Base and one, two or three additional modules which provide patient
simulation or monitor testing. This chapter describes the modules and their connector interfaces, and
provides instructions for assembly and setup of the system.
3.1 Modules and Interfaces

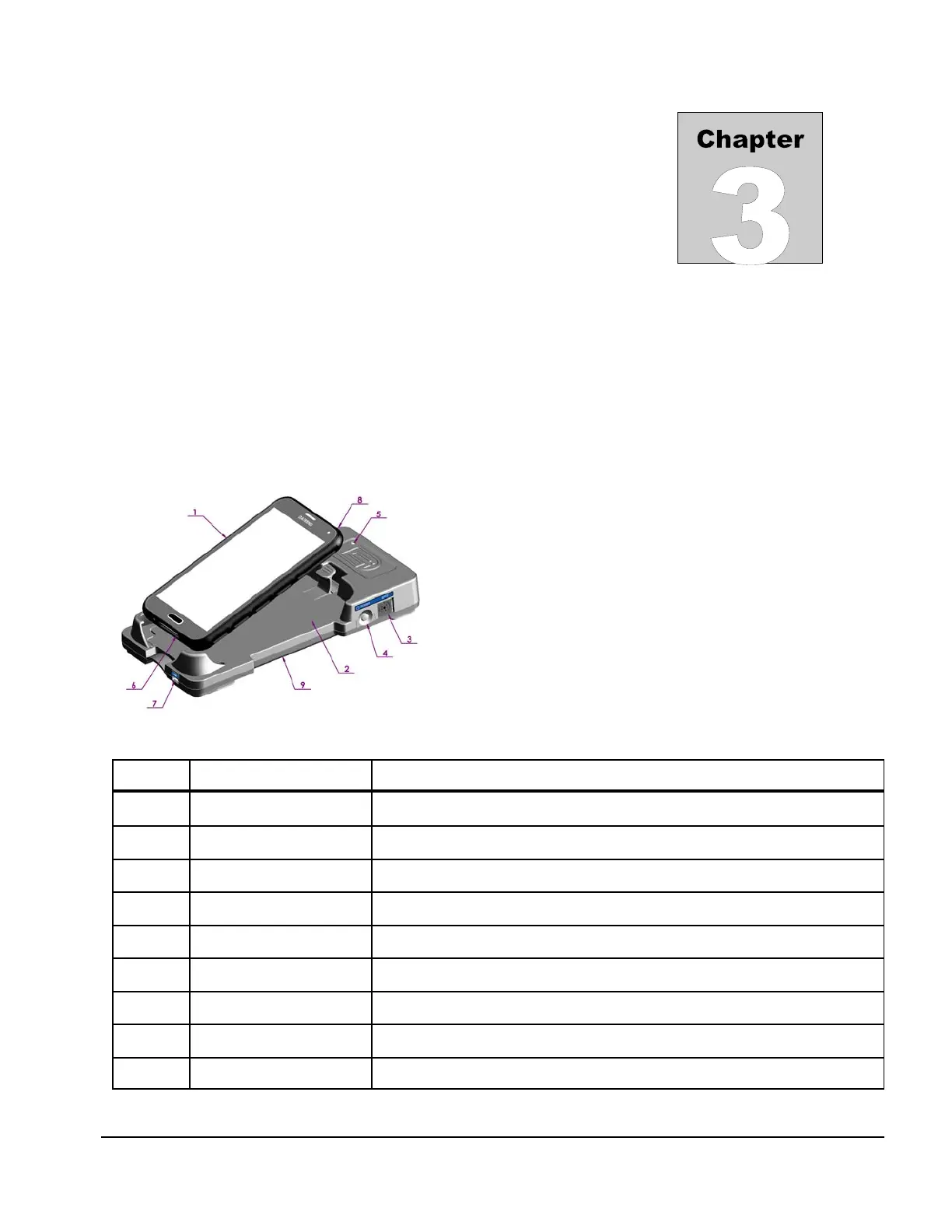

The vPad-A1 Base module (
Figure 1
) is comprised of a 5"
Android Tablet and its cradle. The cradle incorporates a
rechargeable battery which provides power to itself and to
other modules of the system, as well as a communication
hub to facilitate control of the test/simulation modules. The
Tablet also has a battery, which can be recharged through
the USB connection to the cradle.
Item Name Description
1 Tablet Android 5" color LCD tablet with touch screen
2 Cradle Snap-in cradle/holder for Android Controller
3 SPO2 Port miniDIN8 connector to vPad-O2 (SpO2) accessory module
4 Power Switch Power On/Off for all modules
5 LED Power Indicator Power and Battery status
6 Tablet USB Port Battery charging and data input to Android tablet (microUSB)
7 Cradle USB Port Battery charging and data output from cradle (microUSB)
8 DACOM Port x 2 Proprietary serial data connection to other Datrend vPad products
9 Battery Cover Locks the battery into the GUI (base bottom)
Setup/Chapter 3 # Page 19
