vPad-A1 OPERATORS MANUAL

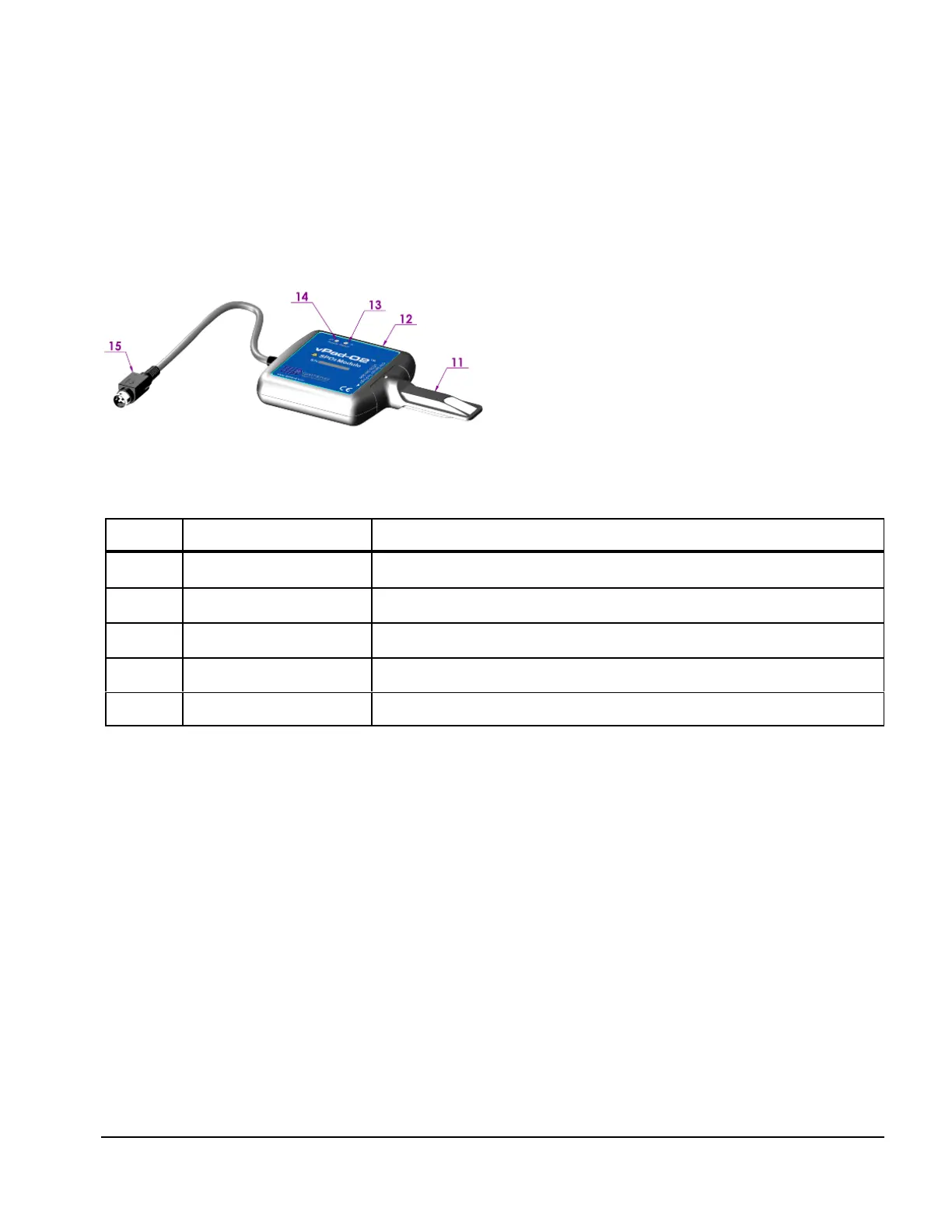

Figure 2
The vPad-O2 (SpO2) module is a pulse oximeter
tester which connects to the Base module via a
minDIN8 connector. This module provides an
artificial ‘finger’ containing light guides which convey
light to or from pulse oximeter probes and sensors.
Item Name Description
11 Optical Finger Interface to pulse oximeter sensor
12 Enclosure Houses the simulation electronics
13 Red Indicator Indicates red light as detected from pulse oximeter sensor
14 Infrared Indicator Indicates infrared light as detected from pulse oximeter sensor
15 Power and Data Cable miniDIN8 cable to Base module
Setup/Chapter 3 # Page 20
