vPad-A1 OPERATORS MANUAL
4.2 ECG
4.2.1 General
The vPad-A1's ECG menu provides a means to output ECG Waveforms, generally
in the 0 - 5.5 mV range, that are representative of a physiological state or condition
of the human heart. This menu also accesses Performance Waveforms that can be
used to test transient response, frequency response, and linearity of an ECG
monitoring system.

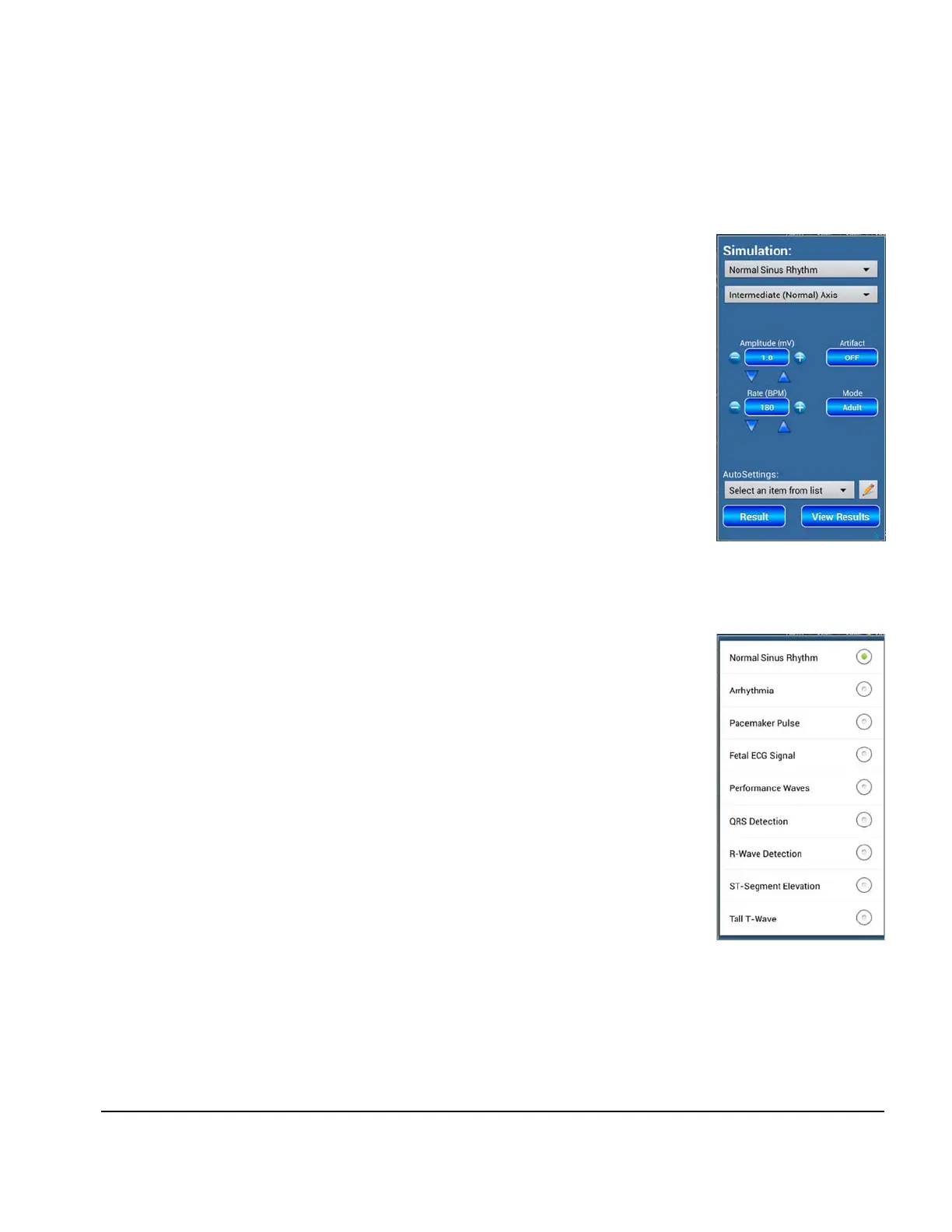

To enter the ECG menu shown in
Figure 27
, touch the ECG tab on the left side of
the vPad-A1 Main screen (
Figure 17
). Entering the ECG setup screen activates the
parameter values displayed on the screen.
4.2.2 Waveforms and Parameters
ECG Waveforms can be selected from the dropdown lists at the top of the screen.
There may be two or three list menus depending on the type of simulation in use.
The first dropdown menu presents the general category of ECG Waveforms.
Touching the first list box will display a complete list of the selections available, as
shown in
Figure 28
. Each category of ECG Waveform will be explained in the
following sections.
The second dropdown list provides selections that will alter the general shape of the
waveform. Options listed will differ depending on the type of ECG Waveform
selected from
Figure 28
.
Figure 27
Figure 28
Manual Operation/Chapter 4 # Page 32
