DATREND Systems vPad-A1 User Manual

vPad-A1 OPERATORS MANUAL
3.2 Assembly and Setup

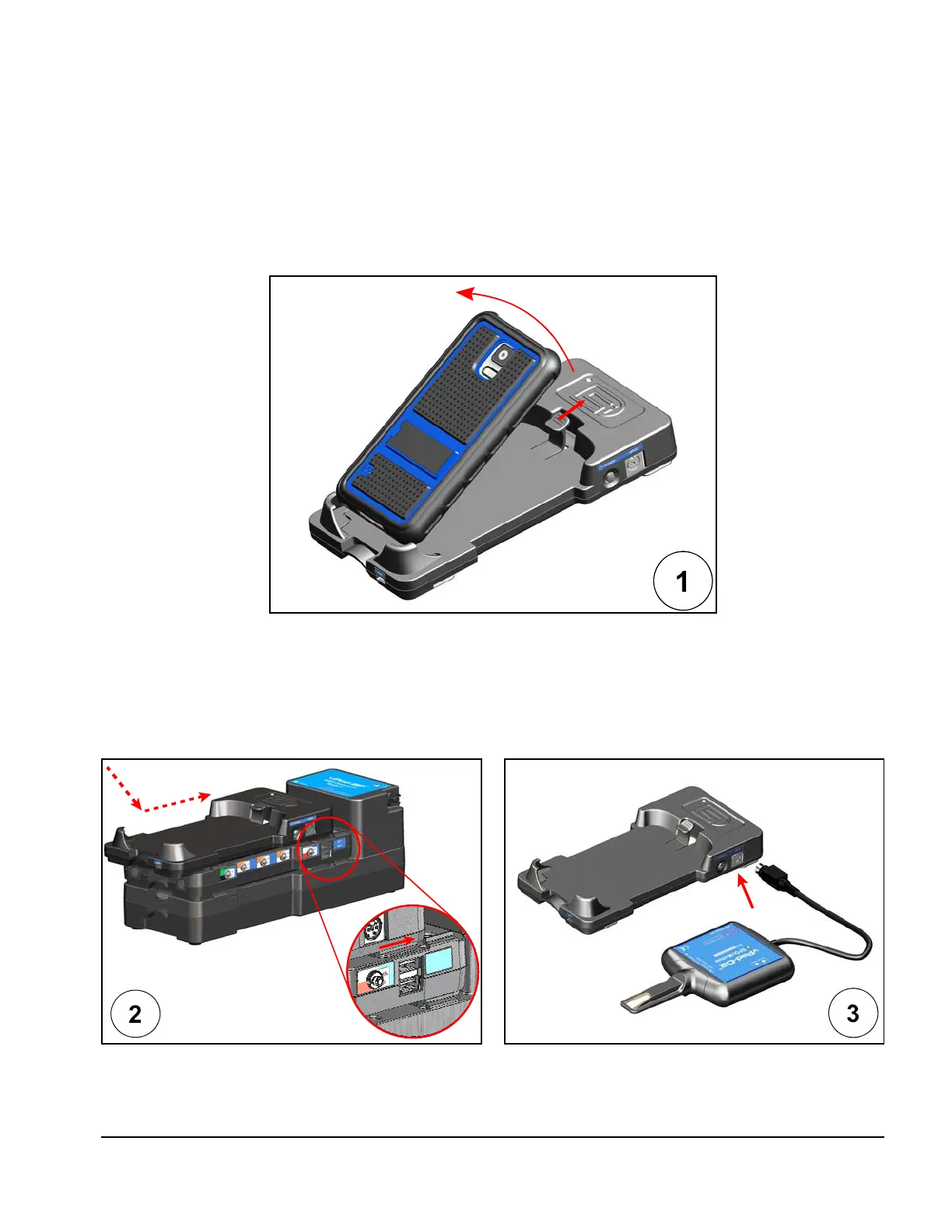

To prepare vPad-A1 for use, first remove the Tablet from its cradle.
Next, connect as many simulation modules to the Base as necessary. The vPad-PS and vPad-BP modules
slide and snap underneath the Base unit as shown in the figure below. The vPad-O2 module connects to
the Base unit via the "SPO2" port.
Figure 5
Figure 6 Figure 7
Setup/Chapter 3 # Page 23
