vPad-A1 OPERATORS MANUAL

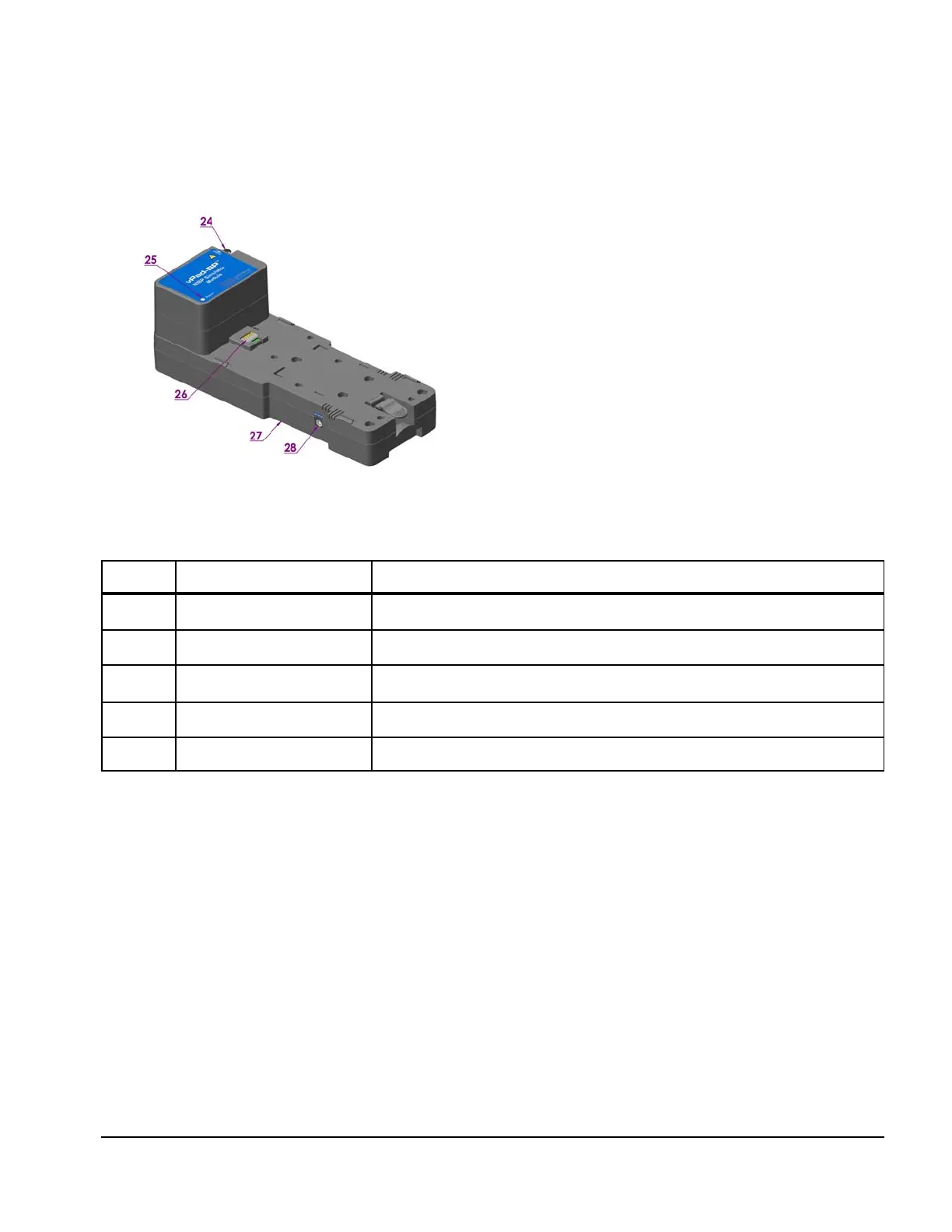

Figure 4
The vPad-BP (NIBP) module draws power
from an internal set of three rechargeable
batteries. The module’s operation can be
controlled through a direct connection with
the Base, or by means of a pass-through
connection in the vPad-PS module when
used in the stacked configuration.
With all modules stacked, a single DC
power supply can simultaneously charge all
batteries in the system, including those in
the Tablet, the Base, and the NIBP module.
Item Name Description
24 NIBP Cuff Connector Pneumatic connection for cuff hose adapter
25 LED Power Indicator Power and charge/battery status
26 Power/Data Connector 6 pin inter-module connector for power and serial communications
27 NIBP Reset Access to NIBP module reset button (bottom)
28 DC Power Supply Connection for NIBP + Base + Tablet charger
Setup/Chapter 3 # Page 22
