Computer Components
Legend
Description
A
Power supply
B
Six ISA expansion slots
C
Main logic board
D
3½-inch diskette drive
E
Front access drive bays
F
Internal drive bay
G
Two VESA-compliant VL-bus (local bus) expansion slots

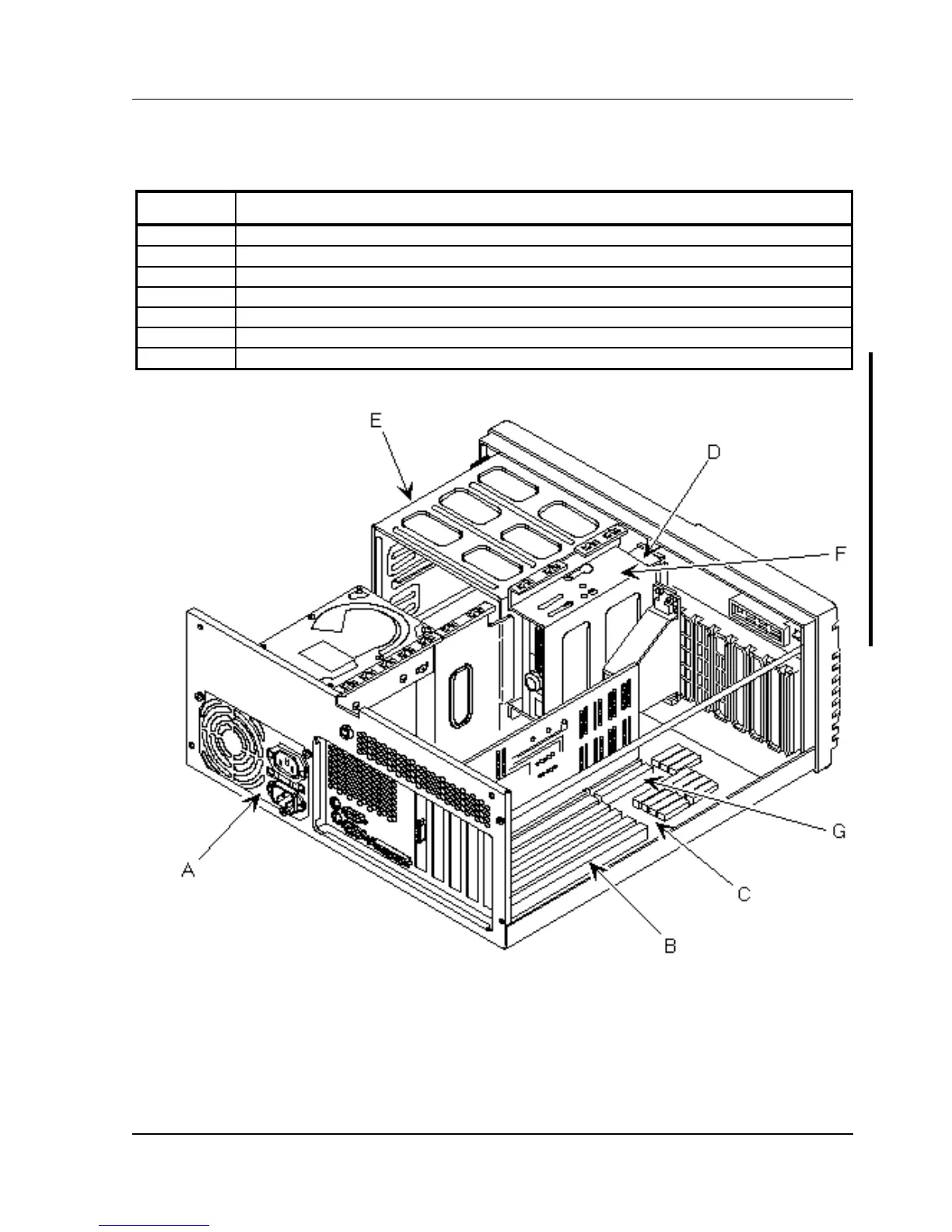

Figure 3 - 2 LPX Computer Model Components
