Digital DECpc LPx/LPx+ Service Procedures
MCS Logistics Engineering - Nijmegen 67
Replacement Procedures
Replacing the Computer Battery/Real Time Clock (RTC) (LPx)
WARNING
Make sure pin 1 on battery is correctly aligned with location on socket (see figure).
Incorrect installation can cause faulty computer operation.
To replace the computer battery/real time clock:
1) Record computer configuration settings.
2) Turn off the computer.
3) Disconnect external devices, ac power, and monitor power.
4) Unlock and remove outside cover.
5) Remove battery.
6) Install new battery.
7) Replace and lock outside cover.
8) Connect external devices and restore power.
9) Run BIOS Setup utility to reconfigure computer using recorded configuration settings from step 1.

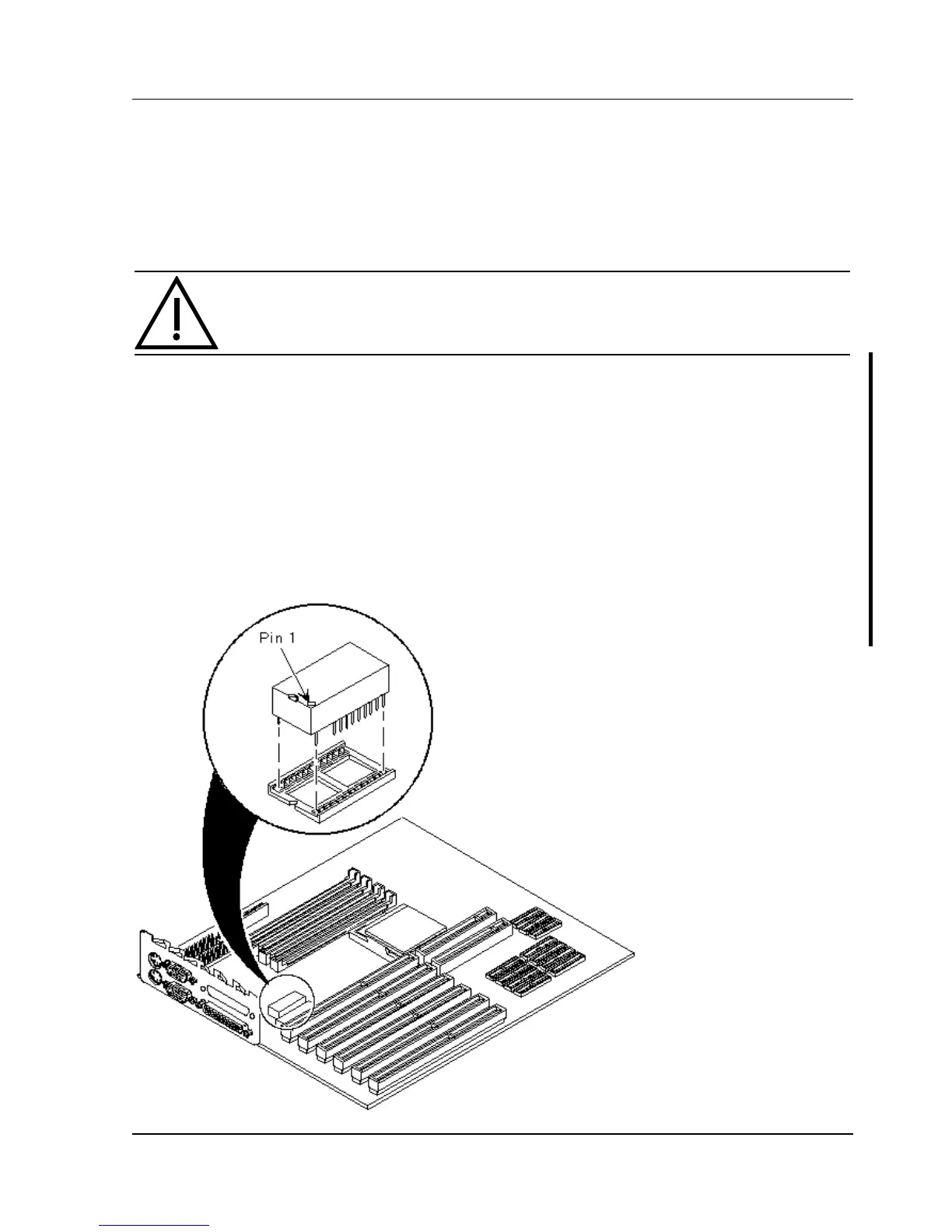

Figure 3 - 27 Replacing
the Computer Battery
/Real Time Clock (LPx)
