Service Procedures Digital DECpc LPx/LPx+
38 MCS Logistics Engineering - Nijmegen
Expansion slots for LPx 560/566 Models
The table below gives specific information about the expansion slots for the LPx 560/566 computer.
Expansion Slot
Slot Type
Description
J7, J8, J9
ISA Supports industry-standard 16-bit ISA expansion boards.
J6
ISA Supports industry-standard 16-bit ISA expansion boards.
Designated as a shared slot with PCI slot J13.
J11/PCI slot 1
PCI Supports non-bus mastering 32-bit PCI expansion boards.
Digital recommends that you install the 32-bit PCI video adapter
in this slot.
J12/PCI slot 2
PCI Supports bus mastering 32-bit PCI expansion boards.
Digital recommends to install 32-bit bus mastering PCI expansion
boards in this slot.
J13/PCI slot 3
PCI Supports bus mastering 32-bit PCI expansion boards.
Designated as a shared slot with ISA slot J6.
Px 560/566 Expansion Slots

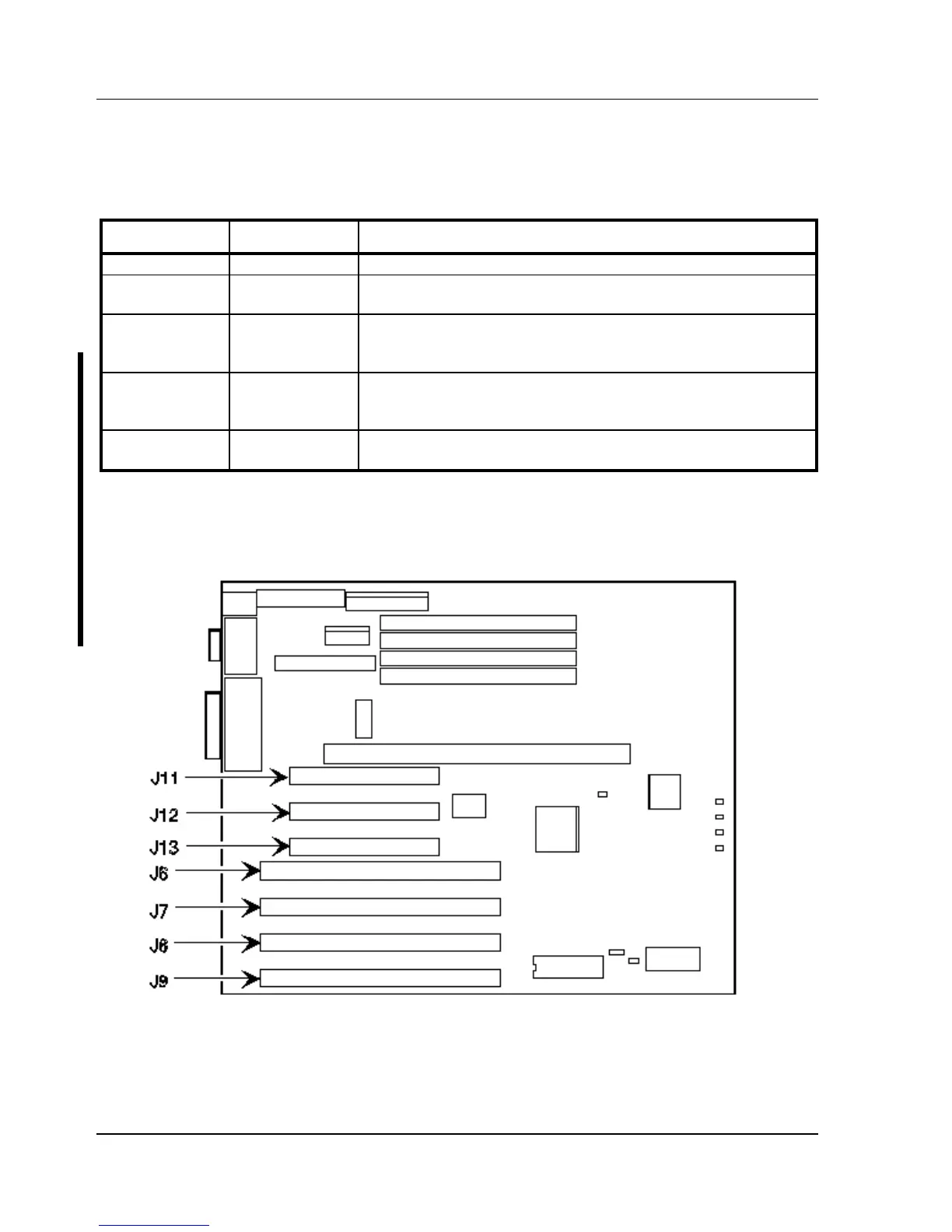

Figure 3 - 5 LPx 560/566 Expansion Slots
