Removing a 5¼-Inch Device
To remove a 5¼-Inch Device:
NOTE
The 3½-inch diskette drive and fan pipe must be removed prior to removing any
5¼-inch device.
1) Turn off the computer.
2) Disconnect external devices, ac power, and monitor power.
3) Unlock and remove outside cover.
4) Remove 3½-inch diskette drive and fan pipe.
5) Remove retaining screws from each side of selected drive bay.
6) Slide 5¼-inch device forward out of drive bay.

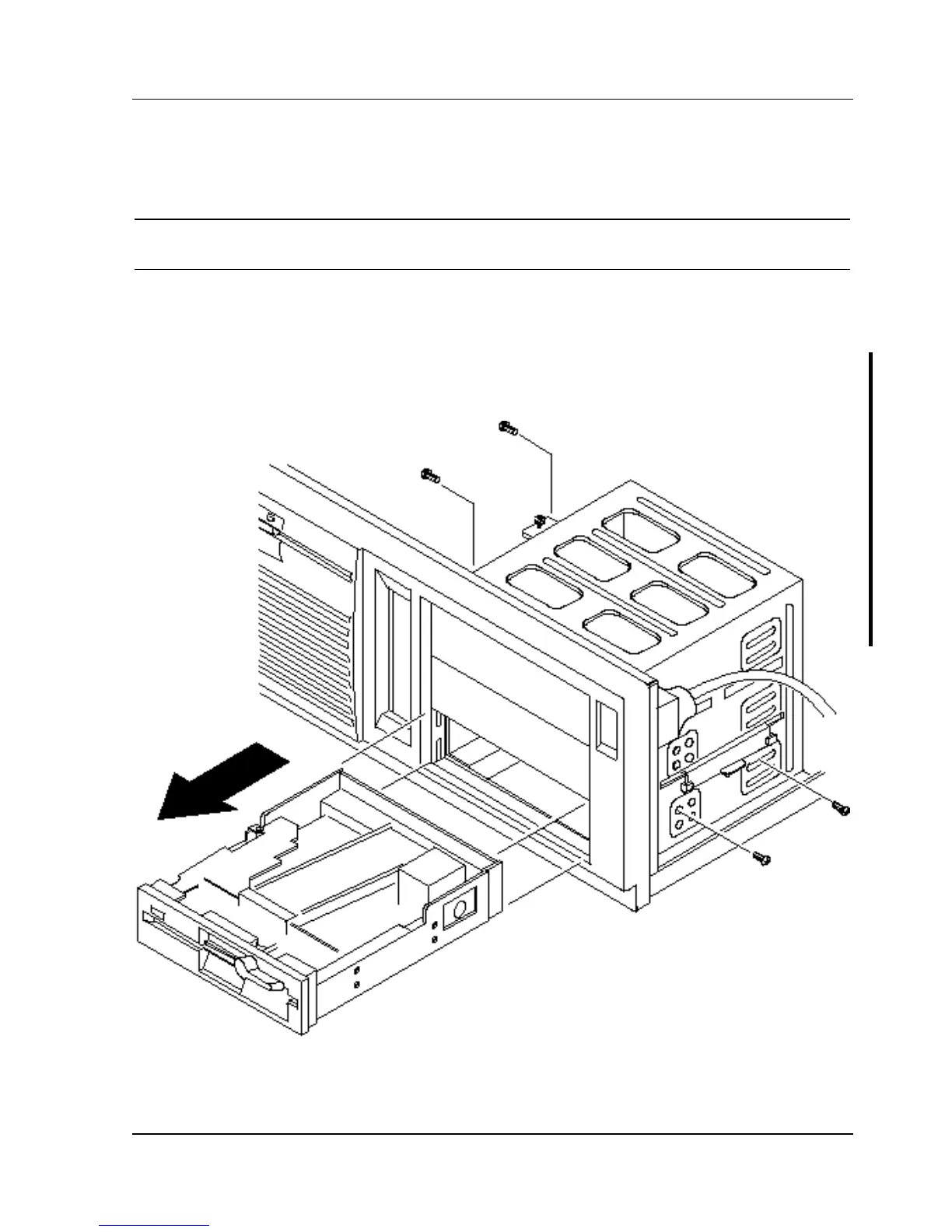

Figure 3 - 14 Removing a 5¼-Inch Device
