Service Procedures Digital DECpc LPx/LPx+
36 MCS Logistics Engineering - Nijmegen
Expansion Slots
The DECpc LPx/LPx+ computer contains six expansion board slots that support standard 16-bit ISA
expansion boards and 32-bit VESA-compliant VL-bus (local bus) expansion boards.
The DECpc LPx 560/566 computer contains seven expansion board slots. Four of the slots support
industry-standard 16-bit ISA expansion boards. The remaining three expansion slots support 32-bit PCI
local bus expansion boards.
Expansion slots for LPx Models
The table below gives specific information about the expansion slots for the LPx computer.
J8 - J11
ISA Supports industry-standard 16-bit ISA.
J6 - J7
ISA / VL-bus Supports industry-standard 16-bit ISA expansion boards
or 32-bit VL-bus expansion boards.
LPx Expansion Slots

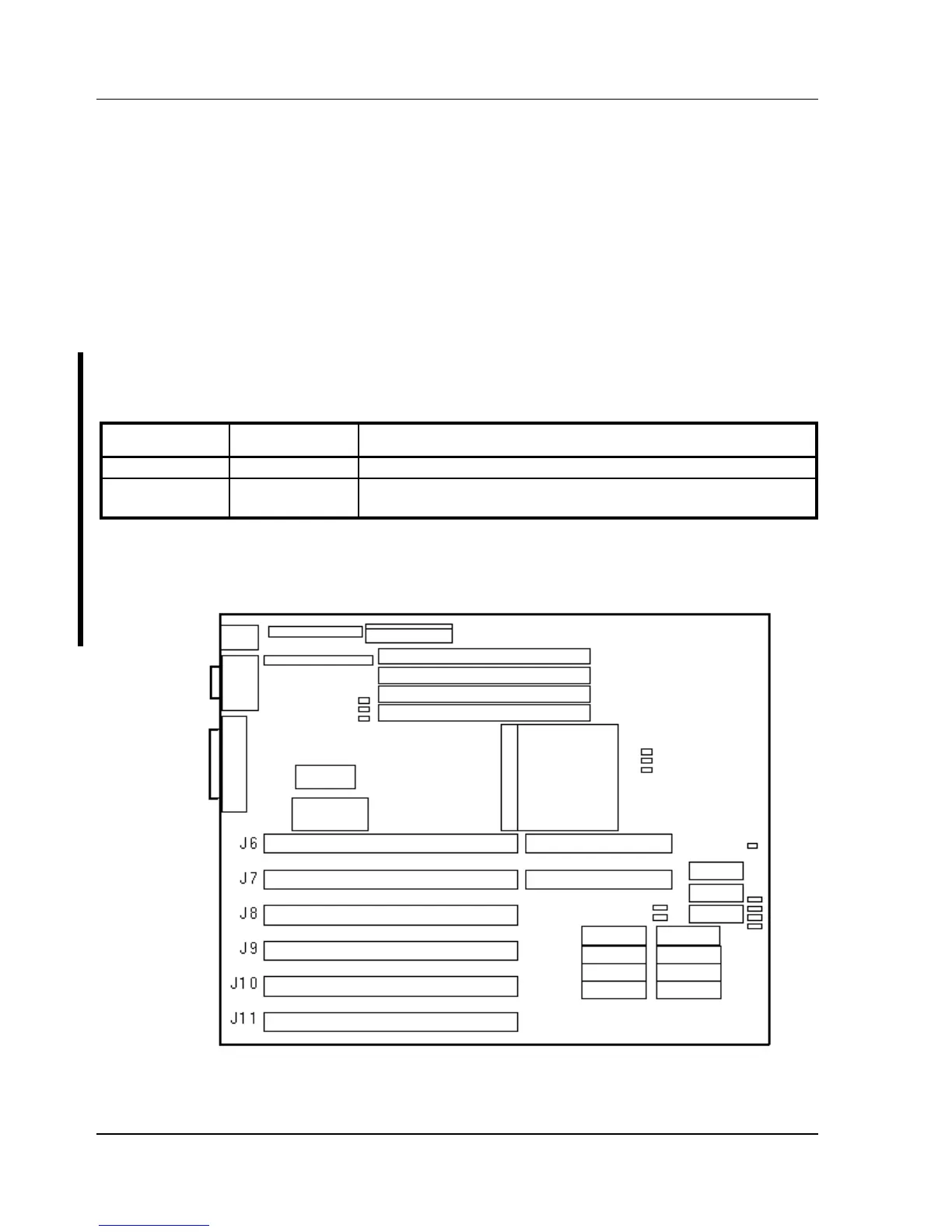

Figure 3 - 3 LPx Expansion Slots
