Service Procedures Digital DECpc LPx/LPx+
62 MCS Logistics Engineering - Nijmegen
Removing the Filler Panel
To remove the Filler Panel:
1) Turn off the computer.
2) Disconnect external devices, ac power, and monitor power.
3) Unlock and remove outside cover.
4) Carefully place screwdriver through hole provided at side of front access drive bay and release plastic
locking tabs securing filler panel to front bezel.
5) Remove and save filler panel.

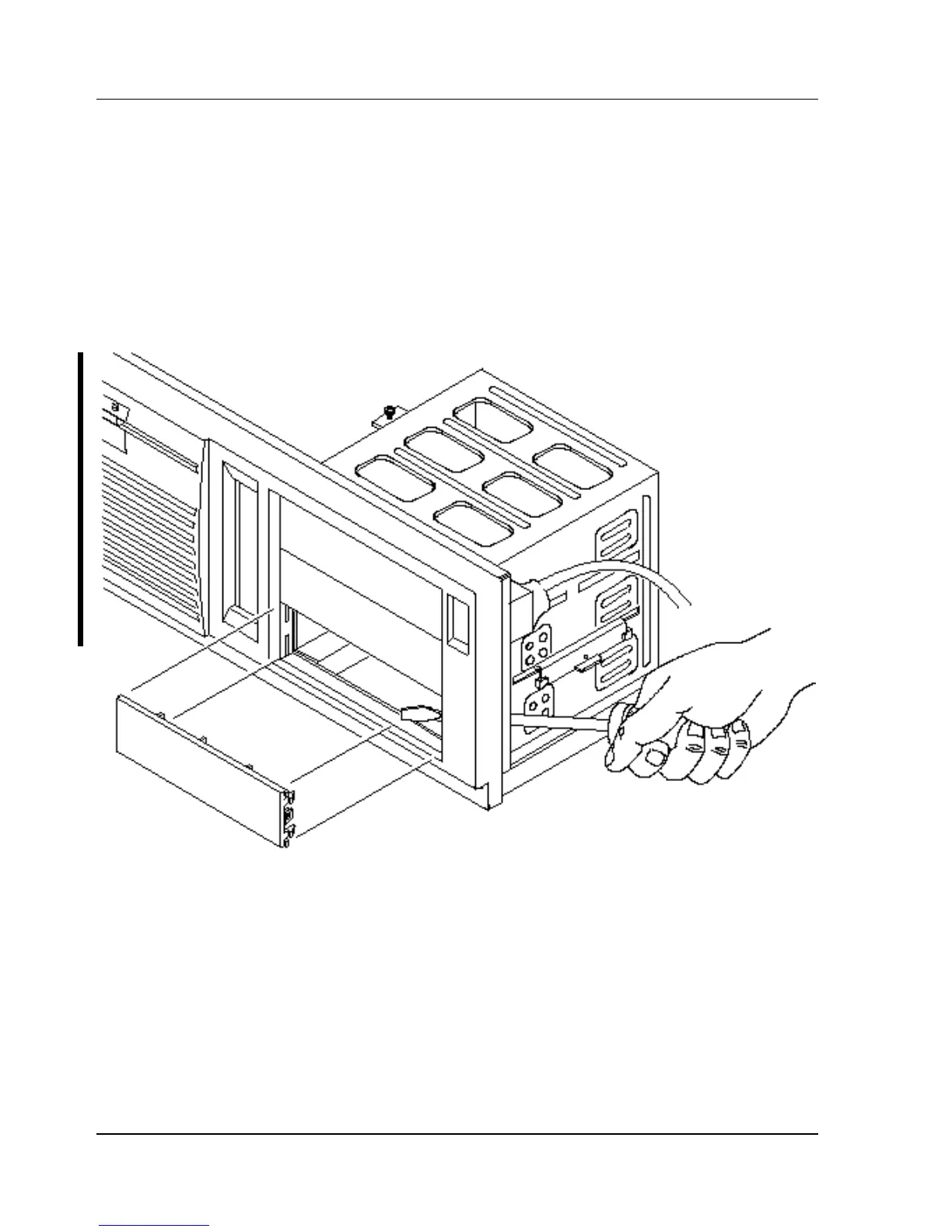

Figure 3 - 23 Removing the LPx(+) Filler Panel
