LPx 560/566 CPU Board Jumper Settings

Feature

Description

Setting

CPU clock input

(Default depends on the CPU

installed at the factory.)

60 MHz

66 MHz

J5, pins 2 and 3 jumpered

J5, pins 1 and 2 jumpered

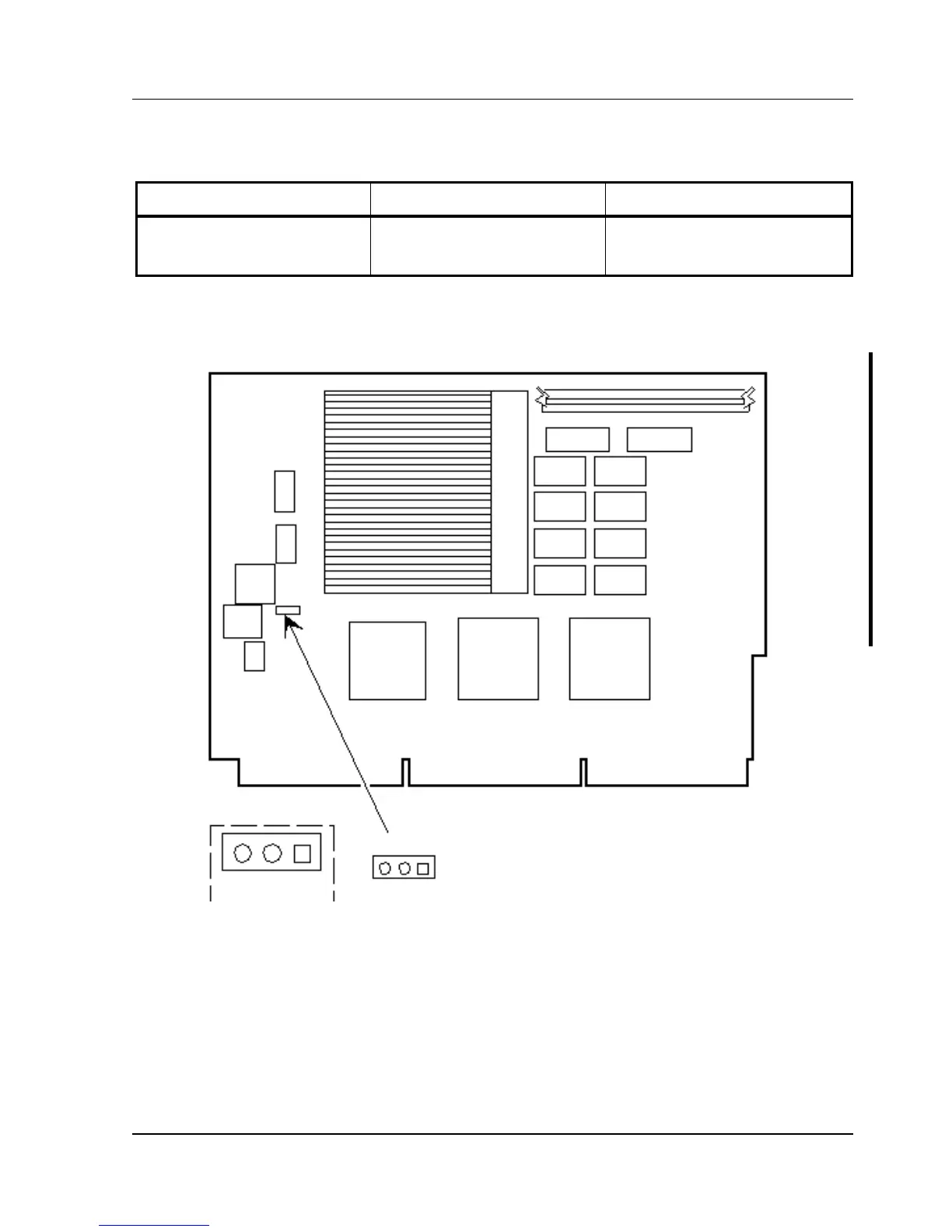

LPx 560/566 CPU Board Jumper Locations

Figure 3 - 10 LPx 560/566 CPU Board Jumper Locations
