DEC DECpc LPx - Installing Expansion Boards; Figure 3 - 6 Installing Expansion Slots

Digital DECpc LPx/LPx+ Service Procedures
MCS Logistics Engineering - Nijmegen 39
Installing Expansion Boards
To install an ISA or VL-bus expansion board:
1) Turn off the computer.
2) Disconnect external devices, ac power, and monitor power.
3) Unlock and remove outside cover.
4) Unscrew and remove the metal filler plate for the desired expansion slot.
5) Insert new expansion board into socket.
Push expansion board firmly into place.
6) Secure expansion board to slot with screw removed in step 4.
7) Replace and lock outside cover.
8) Connect external devices and restore power.
9) Run BIOS setup utility to configure computer.

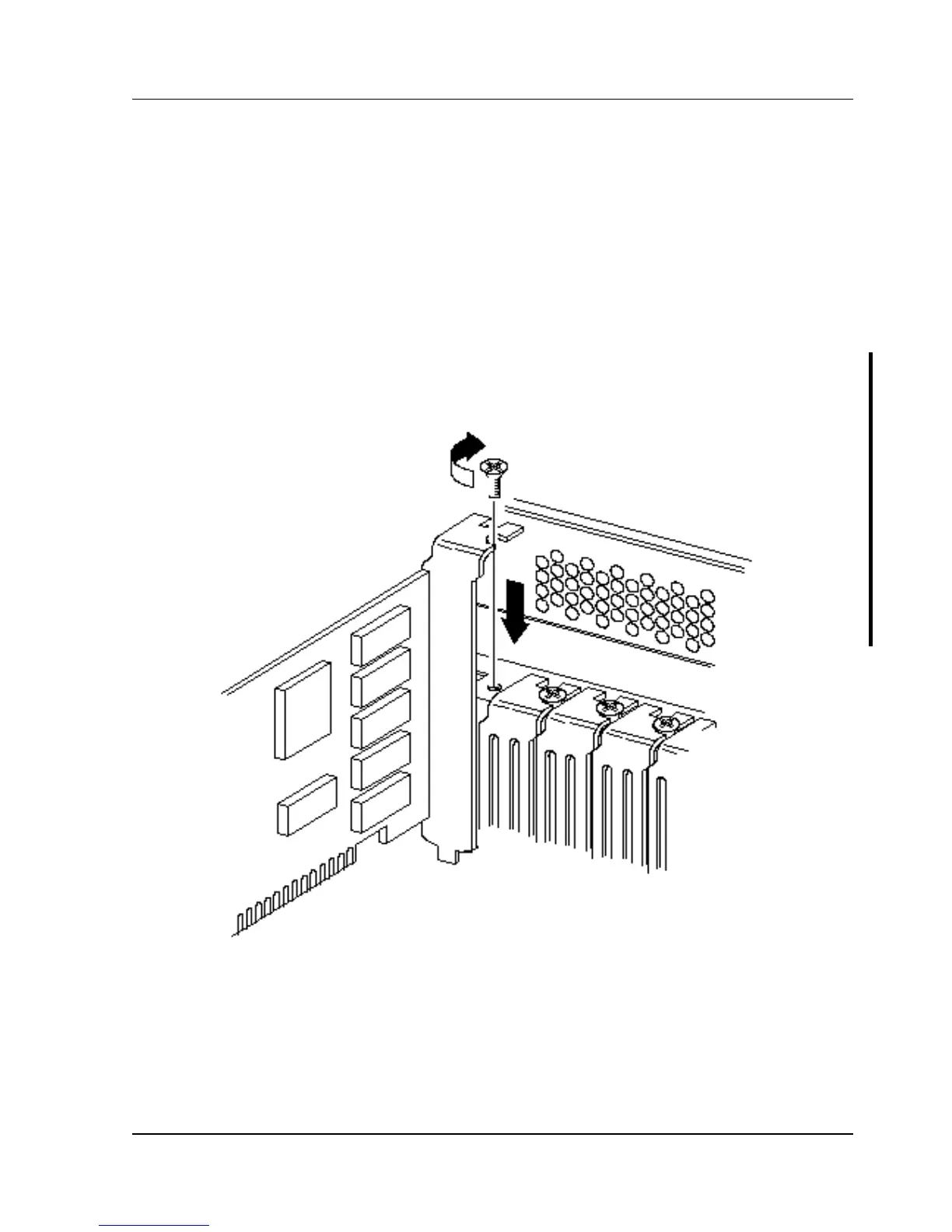

Figure 3 - 6 Installing Expansion Slots
