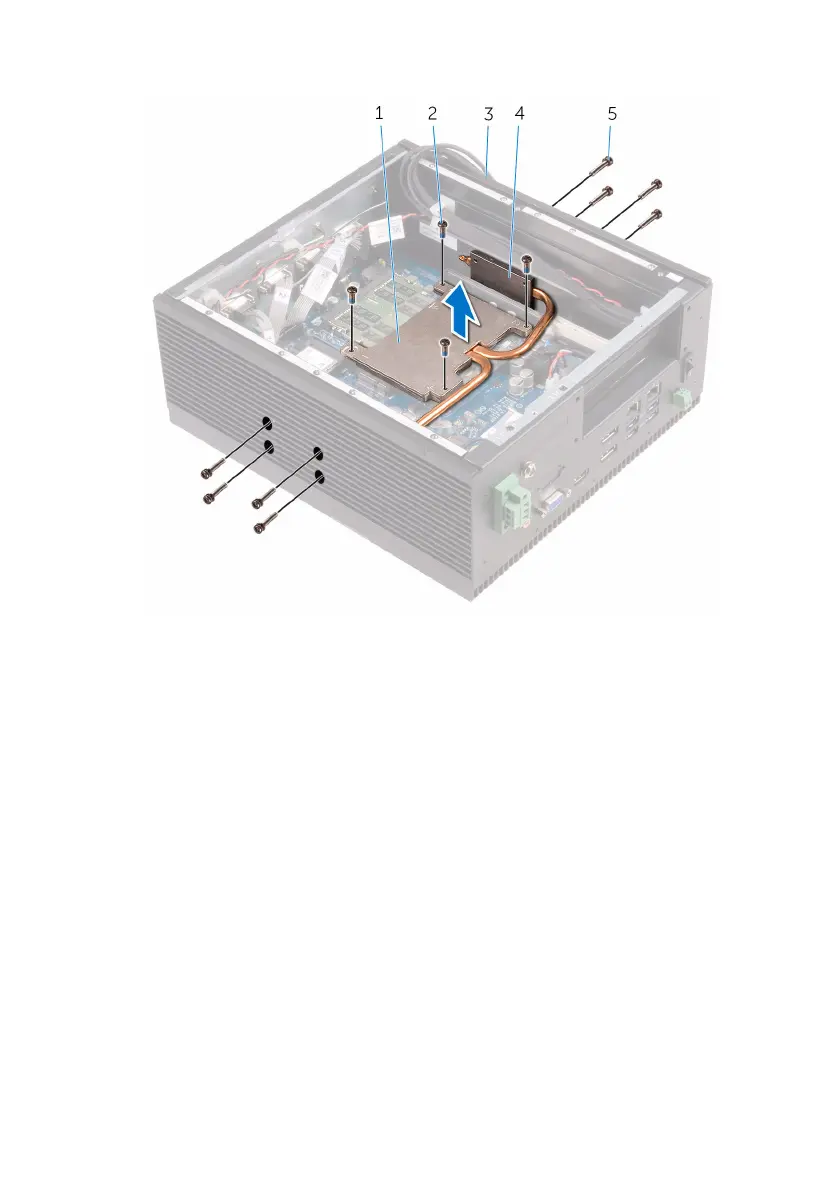

3 Lift the heat sink off the CPU board.

1 heat sink 2 M3x8 heat sink screws (4)

3 chassis 4 chassis heat-sink (2)

5 M3x16 chassis heat-sink

screws (8)

100
