Dell Embedded Box PC 5000 - Procedure

Procedure

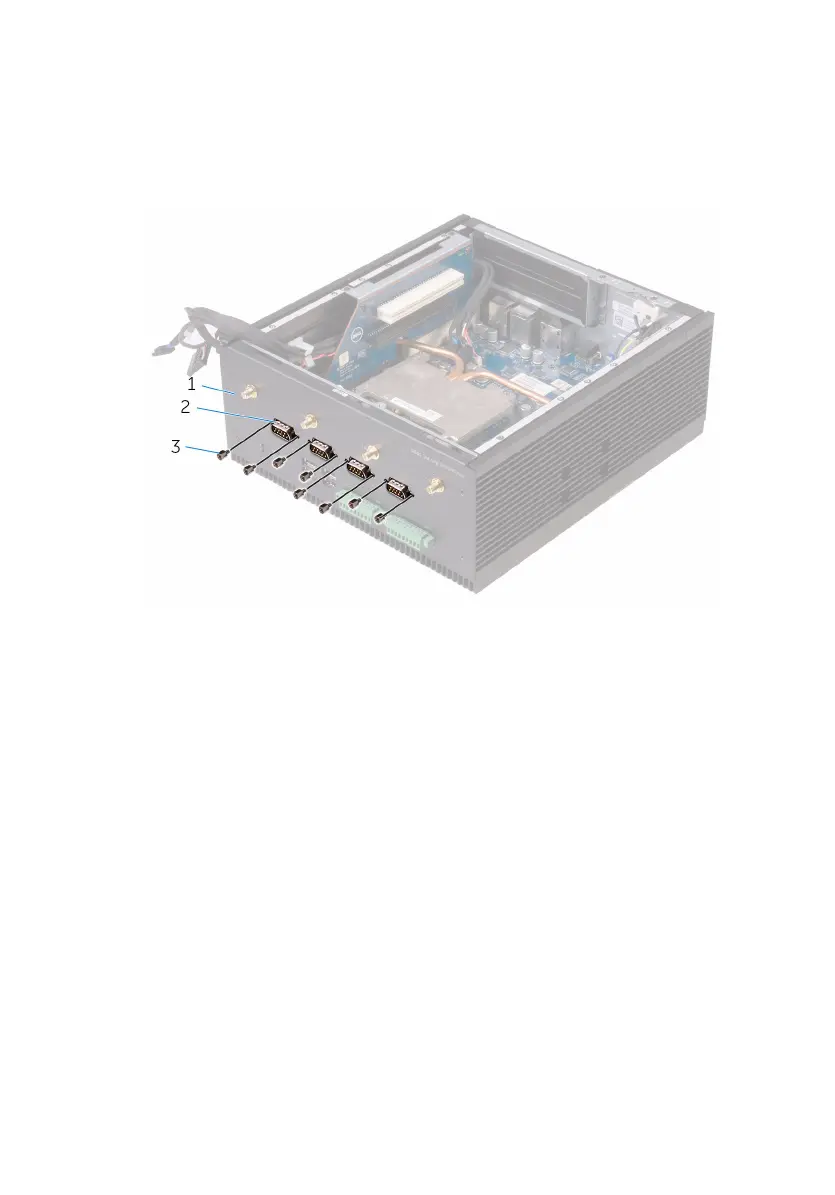

1 Remove the hexagonal screws that secure the serial ports to the bottom-
cover.
1 chassis 2 serial ports (4)
3 #4–40UNCx6.3 hexagonal
screws (8)
2 Disconnect the serial-port cable from the connector on the system
board.
