Procedure

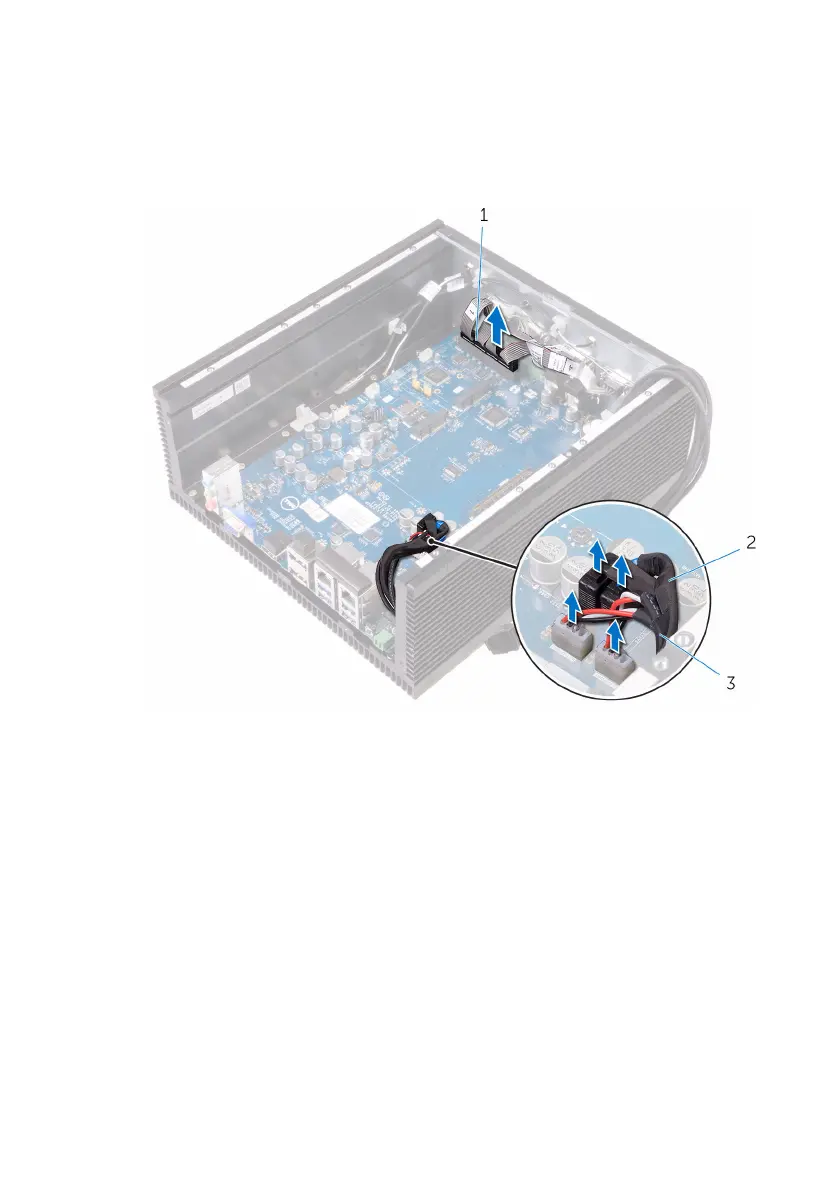

1 Disconnect the serial-port cable, SATA data-cable, and SATA power-

cable from the system board.

1 serial-port cable 2 SATA data-cable (2)

3 SATA power-cable (2)

106
