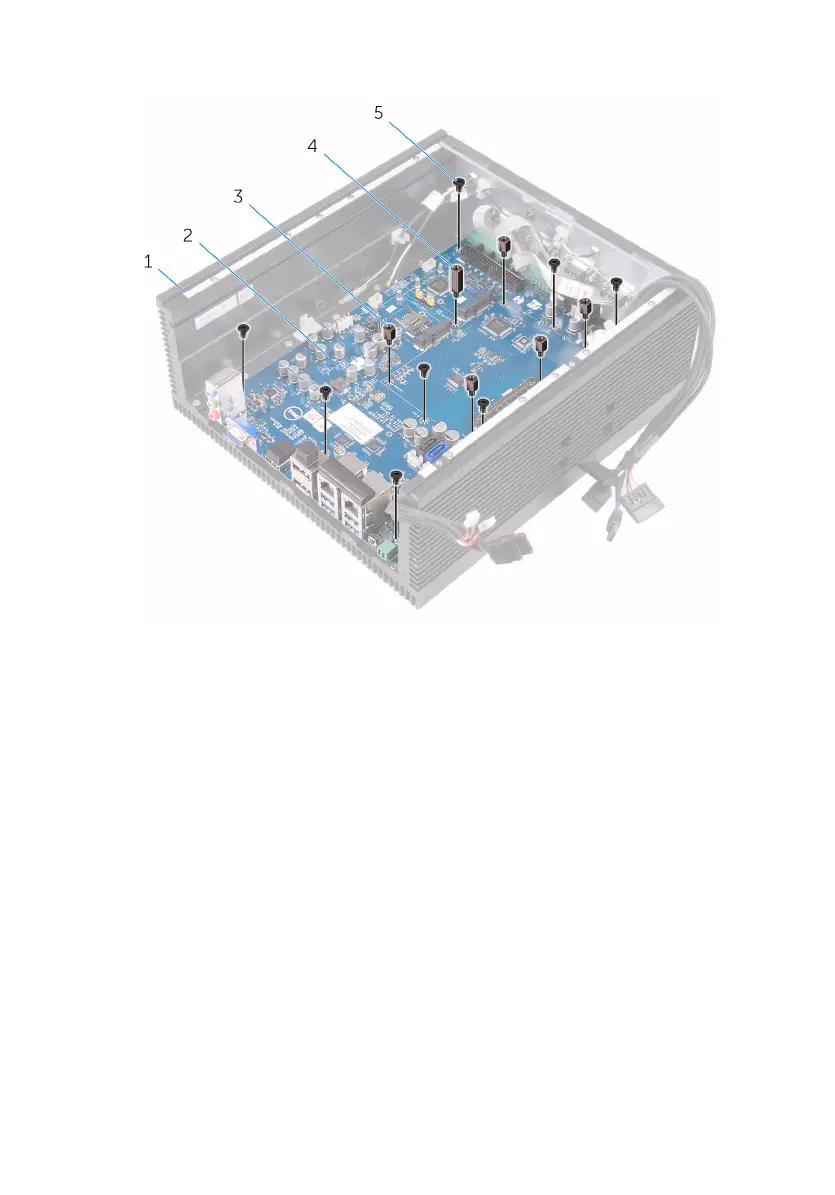

2 Remove the screws that secure the system board to the chassis.

1 chassis 2 system board

3 STDF(L8) HEX, M3x4 screws

(5)

4 STDF(L15) HEX, M3x4

screws (1)

5 M3x5 screws (8)

107
