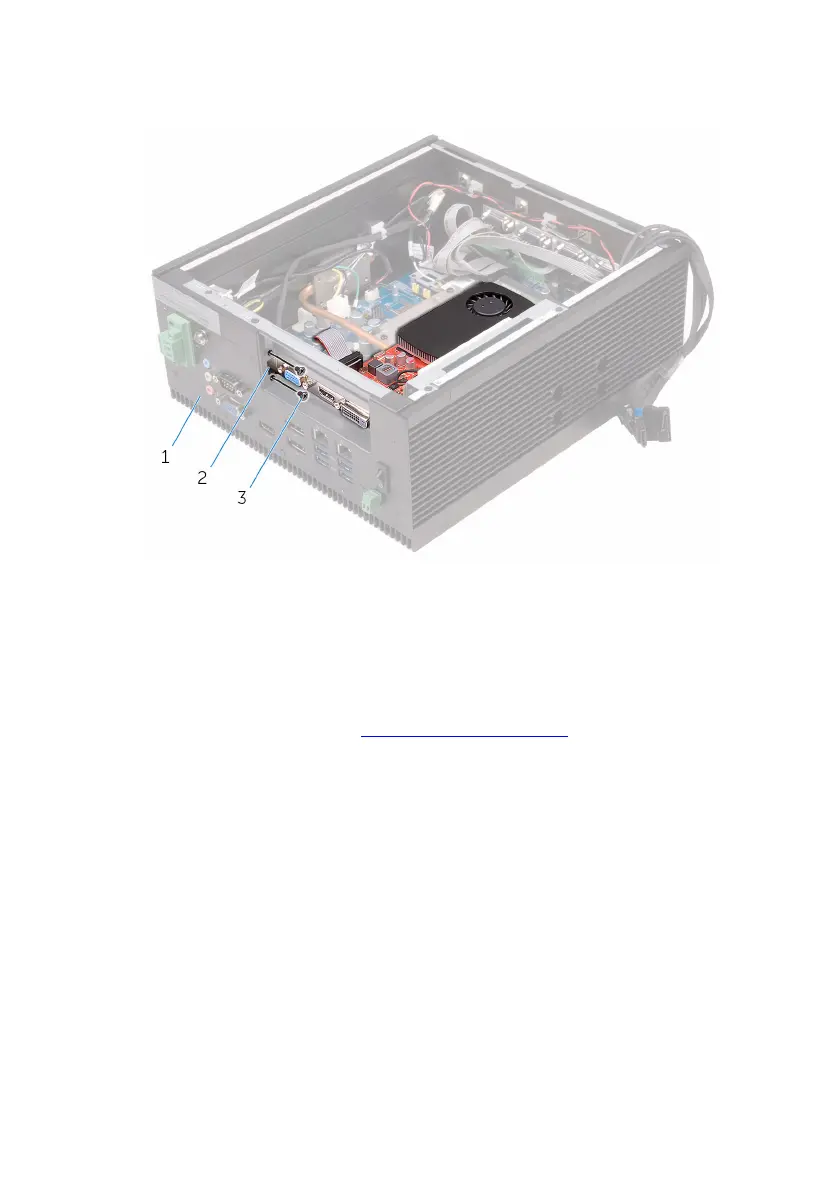

5 Replace the screws that secure the PCI/PCIe card and the filler plate to

the chassis.

1 chassis 2 filler plate

3 screw

Post-requisites

Follow step 2 to step 8 in “Replacing the back cover”.
